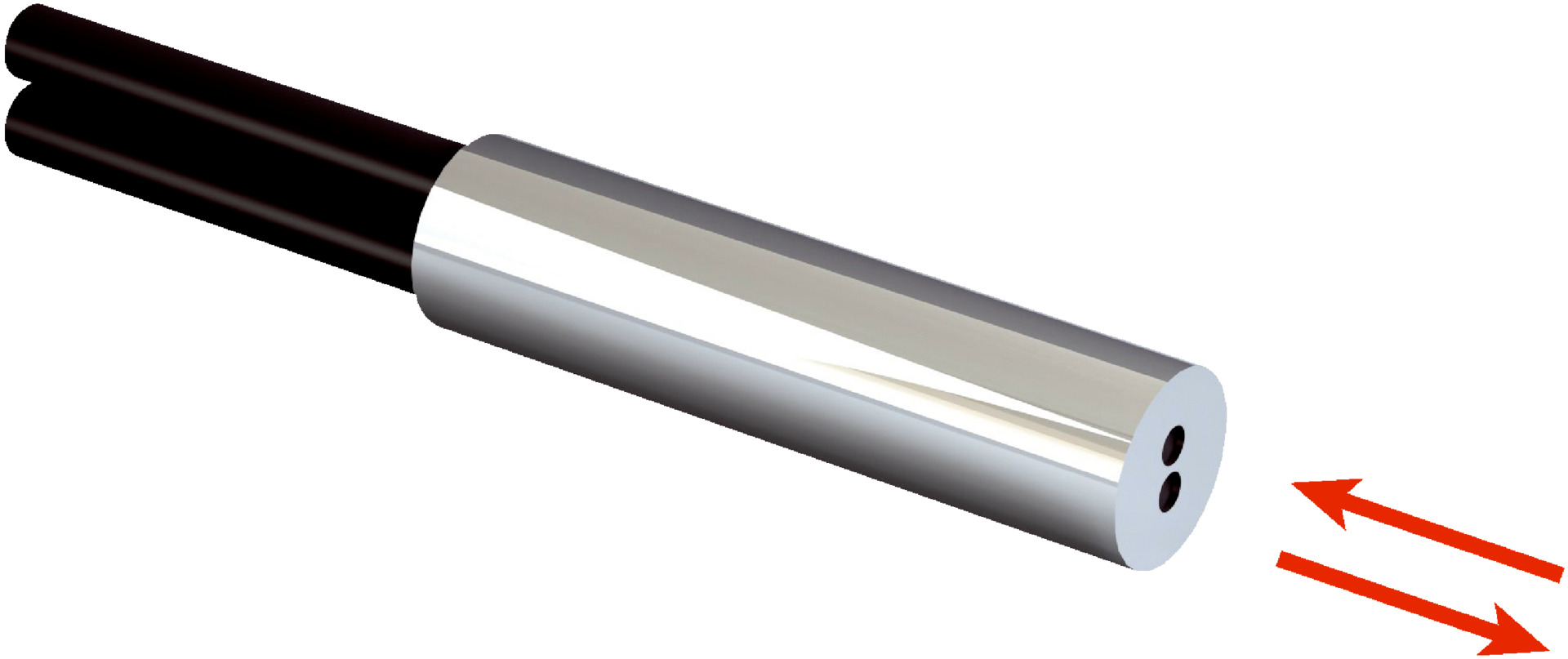

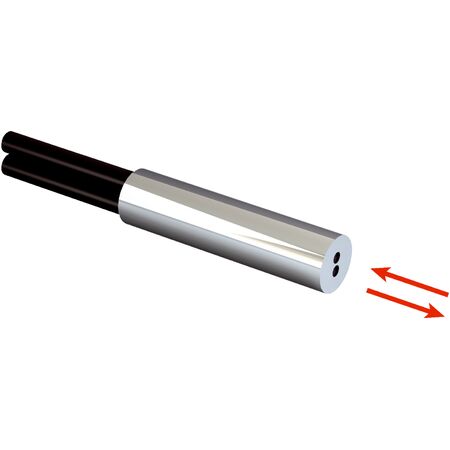

Fiber Optic Cable Proximity Sensor LL3-DT03 | Smooth Sleeve Design | 580 mm Sensing Range | by SICK
The LL3-DT03 fiber optic cable proximity sensor is designed for precise detection in standard proximity sensing applications. With a maximum sensing range of 580 mm and a minimal object diameter detection of just 0.015 mm, this sensor is perfect for industrial environments. Its smooth sleeve design ensures durability, while compatibility with various fiber-optic amplifiers enhances its versatility.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Proximity system
- Fiber-optic head design: Smooth sleeve
- Compatible fiber-optic amplifiers: WLL80, WLL180, GLL170(T)
- Sensing range max.: 580 mm (WLL80 at 8 ms)
- Minimal object diameter: 0.015 mm
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: No
- Compatibility with infrared light: No
- Optical fiber cable can be shortened: Yes
- Adapter end sleeves required: Yes
- Optical fiber head material: Stainless steel
- Light emission: Axial
- Smooth sleeve diameter: 2.5 mm
- Optical fiber length: 2000 mm
- Bending radius: 15 mm
- Dynamic flexibility (robotics): No
- Outside diameter, optical fiber cable connection: 1 mm
- Fiber arrangement: Single fiber
- Core structure: 2 x Ø 0.5 mm
- Sheath material: Polyethylene (PE)
- Fibers material: Polymethylmethacrylate (PMMA)
- Operating temperature range: -40 °C to +70 °C
- Dimensions (H x L x W): 2.5mm x 2000mm x 2.5mm
- Weight: 0.1 kg
Key Features
- Fiber-optic cable with smooth sleeve design
- Proximity system functional principle
- Maximum sensing range of 580 mm with WLL80 at 8 ms
- Minimal object diameter detection of 0.015 mm
- 60° angle of dispersion
- Axial light emission
- Optical fiber cable can be shortened
- Includes adapter sleeves and FC fiber cutter
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems to ensure proper handling and connection.
Applications
- Standard proximity sensing applications
- Compatible with fiber-optic amplifiers WLL80, WLL180, GLL170(T)
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Non-electrical sensing reduces electromagnetic interference and energy consumption
- Durable materials extend product life and reduce waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK LL3-DT03 fiber-optic cable is available for immediate purchase, ideal for industrial proximity sensing applications requiring precise and reliable fiber-optic detection.
