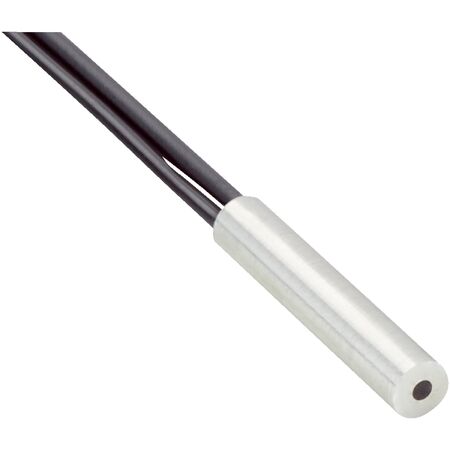

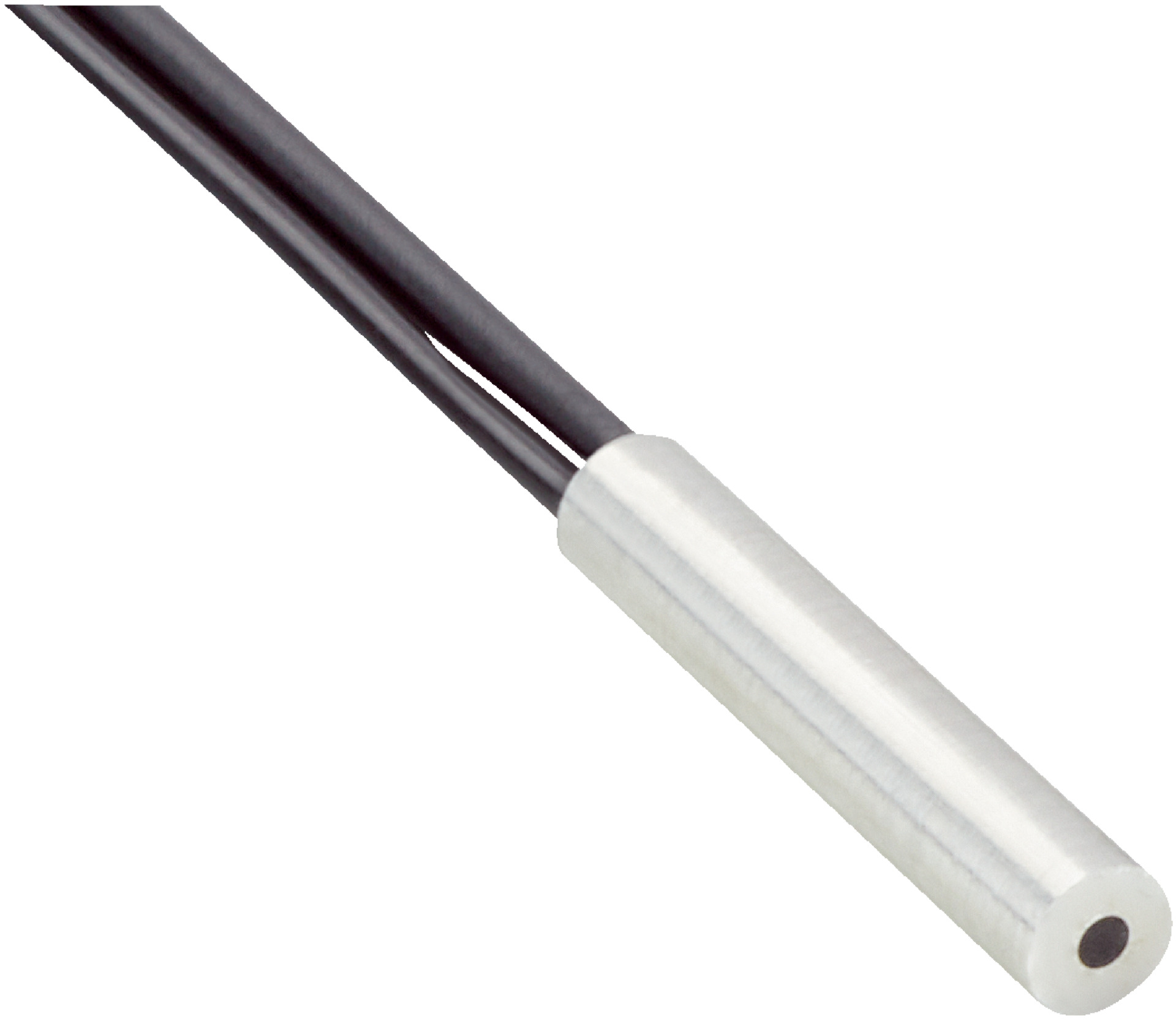

Fiber Optic Cable Proximity Sensor | Smooth Sleeve Design | 60° Angle of Dispersion | 4000 mm Length | by SICK
The Fiber Optic Cable Proximity Sensor is designed for standard proximity sensing applications, featuring a smooth sleeve design and an axial light emission with a 60° angle of dispersion. Ideal for industrial automation and detection systems, this durable sensor is compatible with various fiber-optic amplifiers, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Proximity system
- Fiber-optic head design: Smooth sleeve
- Compatible fiber-optic amplifiers: WLL80, WLL180, GLL170(T)
- Sensing range max: Dependent on fiber optic amplifier used
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: No
- Compatibility with infrared light: No
- Optical fiber cable can be shortened: Yes
- Adapter end sleeves required: Yes (1 x LLAC-AB10 / 1 x LLAC-AB13)
- Optical fiber head material: Stainless steel
- Light emission: Axial
- Smooth sleeve diameter: 3 mm
- Fiber length: 4000 mm
- Bending radius: 15 mm
- Dynamic flexibility (robotics): No
- Outside diameter, optical fiber cable connection: 2.2 mm
- Fiber arrangement: Coaxial
- Core structure: Ø 0.5 mm Coaxial
- Sheath material: Polyethylene (PE)
- Fibers: PMMA
- Operating temperature range: -40 °C to +60 °C
- Dimensions (H x L x W): 10mm x 4000mm x 10mm
- Weight: 0.1 kg
Key Features
- Fiber-optic cable with smooth sleeve design
- Axial light emission with 60° angle of dispersion
- Compatible with infrared light: No
- Optical fiber cable can be shortened
- Includes fiber cutter and fiber adapter bushings
- Stainless steel optical fiber head with 3 mm smooth sleeve diameter
- Polyethylene (PE) sheath with PMMA fibers
- 4,000 mm fiber length with 15 mm bending radius
- Coaxial fiber arrangement with 0.5 mm core structure
- RoHS compliant
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic systems and compatible amplifiers to ensure optimal performance and safety.
Applications
- Standard proximity sensing applications
- Compatible with fiber-optic amplifiers WLL80, WLL180, GLL170(T)
- Industrial automation and detection systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS compliant ensuring reduced hazardous substances
- Durable materials extend product life reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK LLTE-A2030111040E4 fiber-optic cable is available for immediate purchase, ideal for industrial proximity sensing and automation applications.
