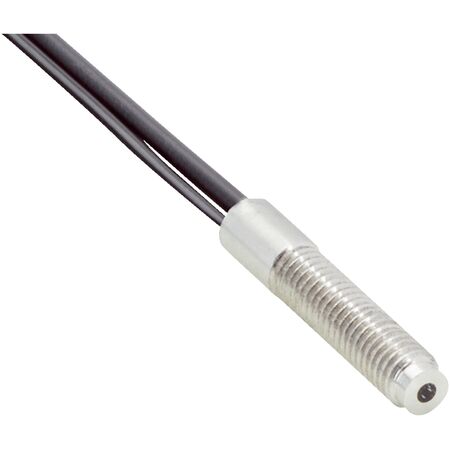

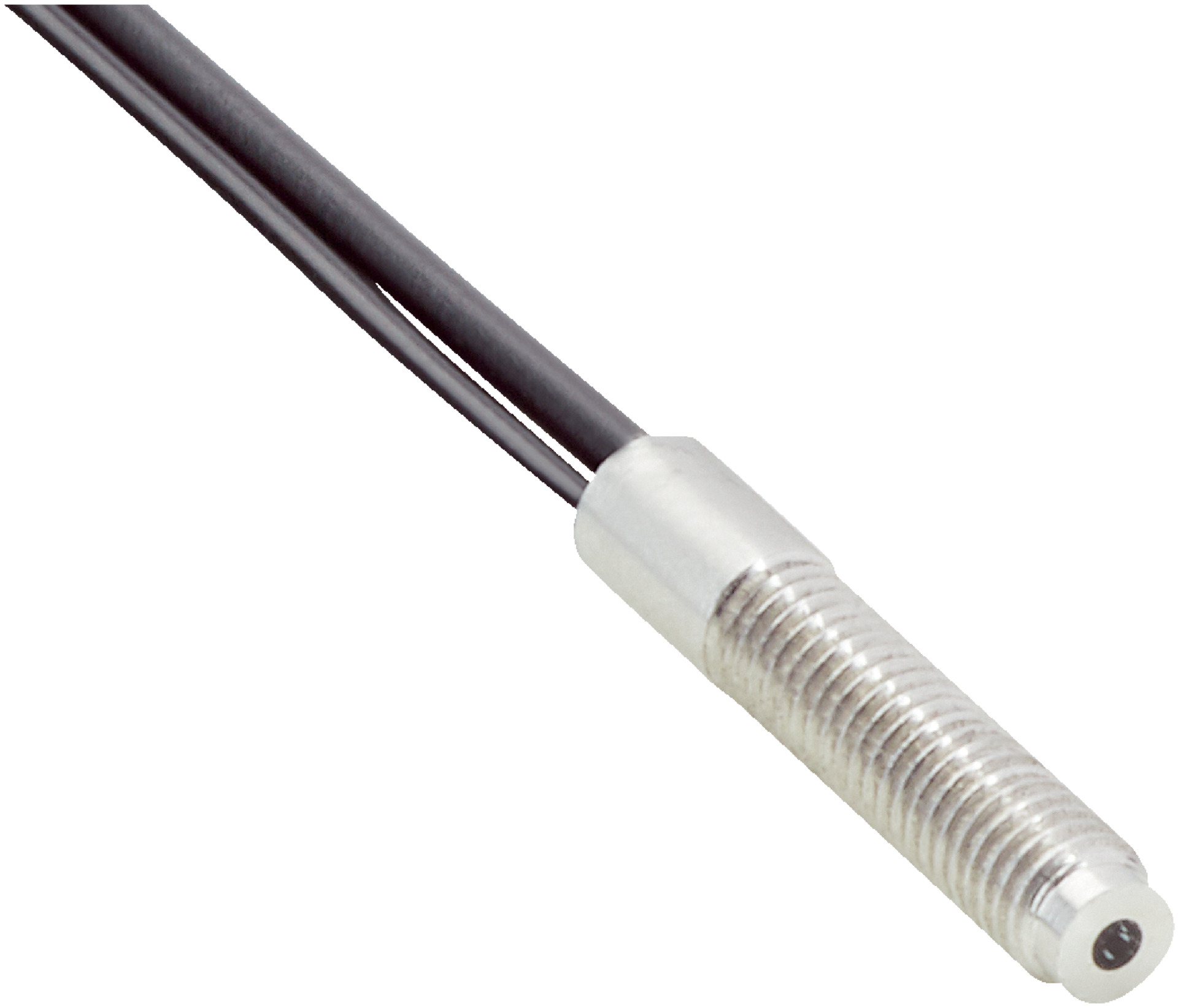

Fiber Optic Cable Proximity Sensor | Threaded Sleeve Design | 60° Angle of Dispersion | by SICK
The Fiber Optic Cable Proximity Sensor is designed for standard proximity sensing applications, featuring a threaded sleeve fiber-optic head and a 60° angle of dispersion. Ideal for industrial environments, this sensor is compatible with various fiber-optic amplifiers and allows for cable shortening, ensuring flexibility and ease of installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Proximity system
- Fiber-optic head design: Threaded sleeve
- Sensing range varies depending on fiber optic amplifier used
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: Yes
- Compatibility with infrared light: No
- Optical fiber cable can be shortened
- Adapter end sleeves required: Yes (1 x LLAC-AB10 / 1 x LLAC-AB13)
- Fiber length: 2000 mm
- Bending radius: 15 mm
- Dynamic flexibility (robotics): No
- Outside diameter of optical fiber cable connection: 2.2 mm
- Fiber arrangement: Coaxial
- Core structure: Ø 0.5 mm Coaxial
- Material optical fiber head: Stainless steel
- Sheath material: Polyethylene (PE)
- Fibers material: PMMA
- Ambient operating temperature: –40 °C to +60 °C
- Sensing ranges with WLL180T: 30 mm to 370 mm depending on operating mode
- Sensing ranges with GLL170 and GLL170T vary by operating mode
- Dimensions (H x L x W): 10mm x 2000mm x 10mm
- Weight: 0.1 kg
Key Features
- Fiber-optic cable with threaded sleeve fiber-optic head
- Proximity system functional principle
- Angle of dispersion 60°
- No integrated lens
- Compatibility with tip adapters
- Optical fiber cable can be shortened
- Includes fiber cutter, mounting set, and fiber adapter bushings
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems to ensure proper setup and safety.
Applications
- Standard proximity sensing applications
- Compatible with fiber-optic amplifiers WLL80, WLL180, GLL170(T)
Standards & Compliance
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- RoHS compliant, ensuring reduced hazardous substances in manufacturing
Warranty Information
Warranty information not specified; please refer to SICK official warranty policy.
Available Now
The SICK LLTE-A1300111020E4 fiber-optic cable is available for immediate purchase, ideal for standard proximity sensing applications in industrial environments.
