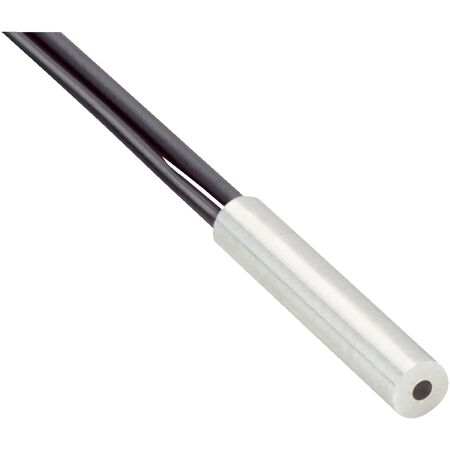

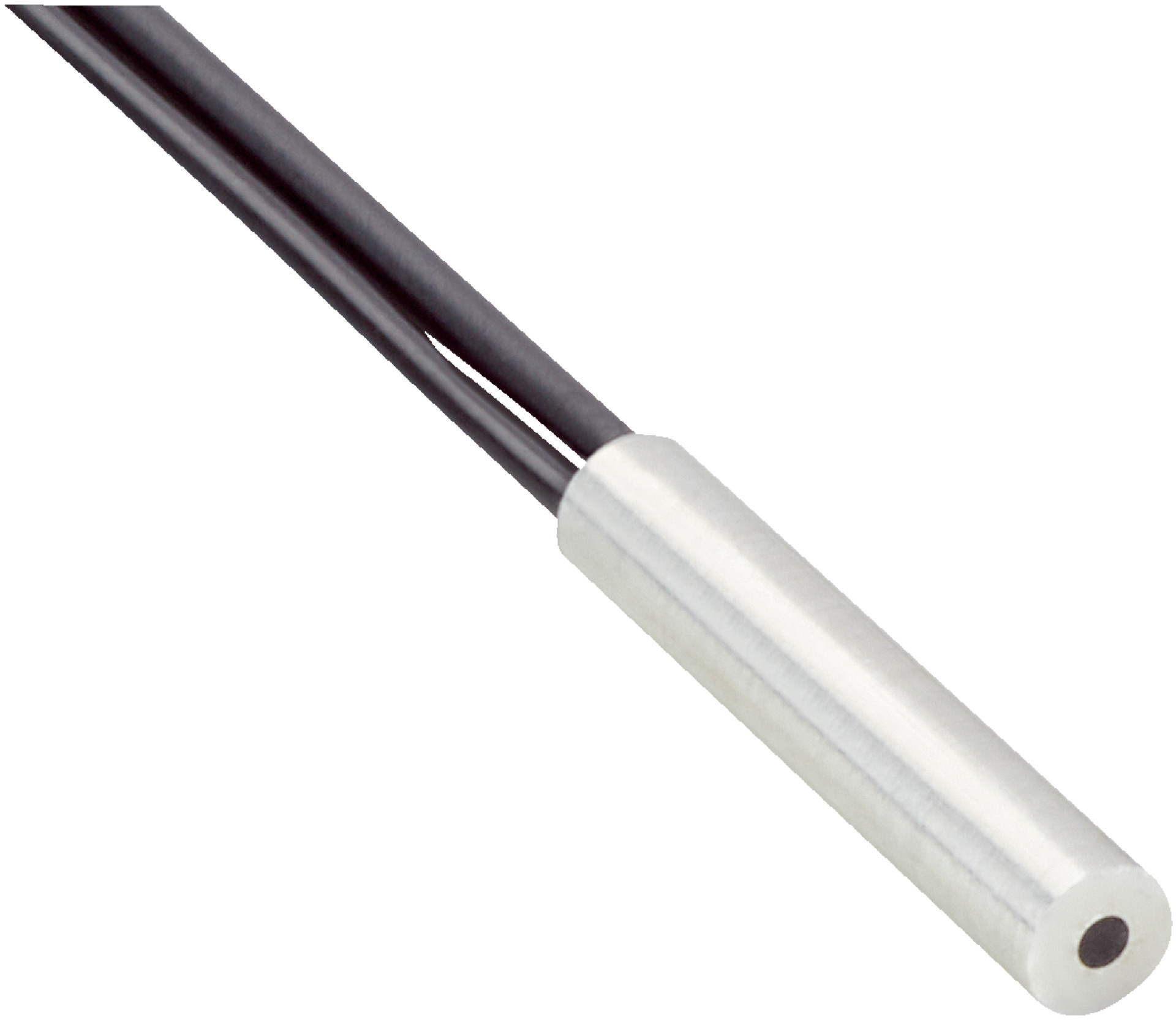

Fiber Optic Cable for Proximity Sensors | Smooth Sleeve Design | Axial Light Emission | Coaxial Fiber Arrangement | by SICK
The Fiber Optic Cable for Proximity Sensors features a smooth sleeve design and axial light emission, making it ideal for standard proximity sensing applications. Built for industrial automation and detection systems, this cable is compatible with fiber-optic amplifiers and ensures reliable performance in various environments. Its durable construction and RoHS compliance contribute to a longer product life and reduced environmental impact.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Proximity system
- Fiber-optic head design: Smooth sleeve
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: No
- Optical fiber head material: Stainless steel
- Light emission: Axial
- Smooth sleeve diameter: 3 mm
- Fiber length: 2000 mm
- Bending radius: 15 mm
- Dynamic flexibility (robotics): No
- Outside diameter, optical fiber cable connection: 2.2 mm
- Fiber arrangement: Coaxial
- Core structure: Ø 0.5 mm Coaxial
- Sheath material: Polyethylene (PE)
- Fibers: PMMA
- Weight: 19 g
- Dimensions (H x L x W): 3mm x 2000mm x 3mm
- Weight: 0.1 kg
Key Features
- Fiber-optic cable with smooth sleeve design
- Axial light emission with 3 mm stainless steel optical fiber head
- Coaxial fiber arrangement with PMMA fibers and polyethylene sheath
- Compatible with infrared light: No
- Optical fiber cable can be shortened
- Adapter end sleeves required (1 x LLAC-AB10 / 1 x LLAC-AB13)
- RoHS compliant
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems to ensure proper connection and functionality.
Applications
- Standard proximity sensing applications
- Compatible with fiber-optic amplifiers WLL80, WLL180, GLL170(T)
- Industrial automation and detection systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS compliant, ensuring reduced hazardous substances
- Durable materials extend product life and reduce waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK LLTE-A2030111020E4 fiber-optic cable is available for immediate purchase, ideal for industrial proximity sensing and automation applications.
