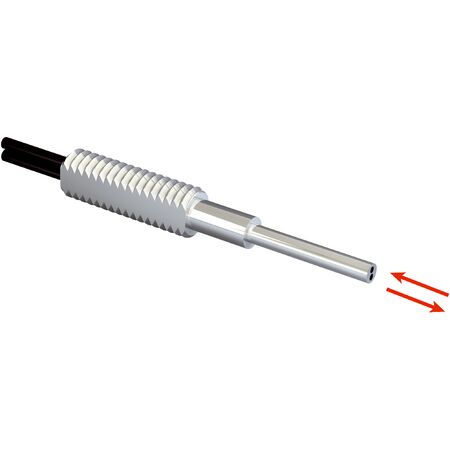

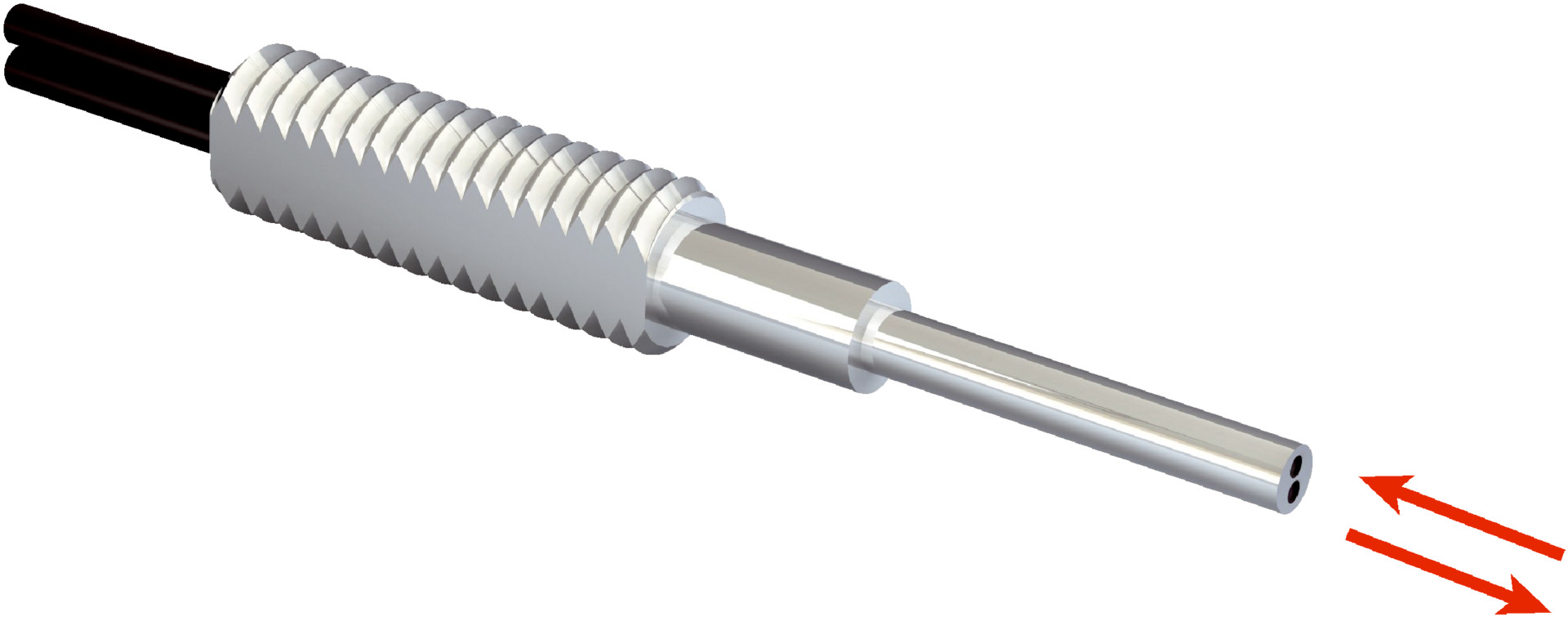

Fiber Optic Cable Sensor LL3-DM03 | Proximity System | 580 mm Sensing Range | Bendable Sleeve Design | by SICK
The LL3-DM03 fiber optic cable sensor is designed for precision proximity sensing in industrial automation. With a maximum sensing range of 580 mm and a minimal object diameter detection of just 0.015 mm, it ensures accurate detection in various applications. Built with durable stainless steel and featuring a bendable sleeve design, this sensor is perfect for environments requiring reliable performance and flexibility.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Proximity system
- Fiber-optic head design: Threaded sleeve, Long end sleeve, Bendable sleeve, 90° deflection
- Compatible fiber-optic amplifiers: WLL80, WLL180, GLL170(T)
- Sensing range max.: 580 mm (WLL80 at 8 ms)
- Minimal object diameter: 0.015 mm
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: No
- Compatibility with infrared light: No
- Optical fiber cable can be shortened: Yes
- Adapter end sleeves required: Yes
- Optical fiber head material: Stainless steel
- Light emission: Axial
- Thread diameter (housing): M4
- Optical fiber taper diameter: ≥ 1.5 mm
- Optical fiber taper length after 2 mm: ≥ 90 mm
- Minimum bend radius of end sleeve: 10 mm
- Fiber length: 2000 mm
- Bending radius: 15 mm
- Dynamic flexibility (robotics): No
- Outside diameter, optical fiber cable connection: 1 mm
- Fiber arrangement: Singlefiber
- Core structure: 2 x Ø 0.5 mm
- Sheath material: Polyethylene (PE)
- Fibers material: Polymethylmethacrylate (PMMA)
- Ambient operating temperature: –40 °C to +70 °C
- Dimensions (H x L x W): 10mm x 2000mm x 10mm
- Weight: 0.1 kg
Key Features
- Fiber-optic cable with threaded sleeve, long end sleeve, bendable sleeve, and 90° deflection
- Maximum sensing range of 580 mm with WLL80 amplifier at 8 ms
- Minimal object diameter detection of 0.015 mm
- Axial light emission with M4 thread diameter housing
- Optical fiber cable can be shortened
- Includes mounting accessories and fiber cutter
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems to ensure proper setup and safety.
Applications
- Standard proximity sensing applications
- Compatible with fiber-optic amplifiers WLL80, WLL180, GLL170(T)
- Industrial automation and object detection
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Non-electrical sensing reduces electromagnetic interference and energy consumption
- Durable materials extend product life and reduce waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK LL3-DM03 fiber-optic cable is available for immediate purchase, ideal for industrial proximity sensing and automation applications.
