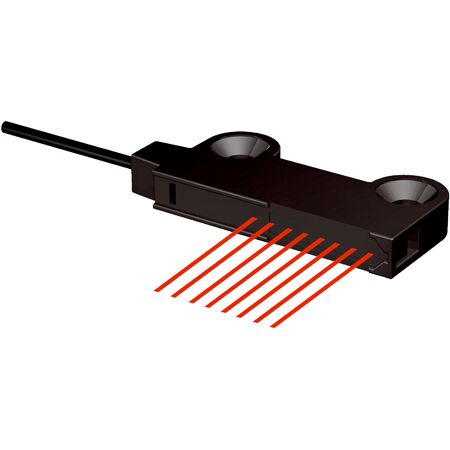

Fiber Optic Cable Sensor LL3-TZ10 | Through-Beam System | 3600mm Sensing Range | Integrated Lens | by SICK
The LL3-TZ10 fiber optic cable sensor is designed for precise area detection in industrial automation, featuring a through-beam system with a sensing range of up to 3600 mm. With a flat type head and integrated lens, it ensures minimal object diameter detection of just 0.25 mm, making it ideal for various applications. Built for durability and efficiency, this sensor is compatible with WLL80 and other amplifiers, ensuring optimal performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Through-beam system with sender and receiver
- Fiber-optic head design: Flat type, 90° deflection, Array
- Sensing range max: Up to 3600 mm with WLL80 at 8 ms
- Minimal object diameter: 0.25 mm
- Angle of dispersion: 13.69°
- Integrated lens: Yes
- Compatibility tip adapters: No
- Optical fiber compatibility with infrared light: No
- Optical fiber cable can be shortened: Yes
- Adapter end sleeves required: Yes
- Optical fiber head material: Polyamid (PA)
- Optical fiber head light emission: Radial
- Optical fiber head array width: 11 mm
- Optical fiber length: 2000 mm
- Bending radius: 10 mm
- Dynamic flexibility (robotics): No
- Outside diameter of optical fiber cable connection: 1.3 mm
- Fiber arrangement: Multi-fiber
- Core structure: 16 x Ø 0.265 mm Multi-fiber
- Sheath material: Polyethylen (PE)
- Fibers material: Polymethylmethacrylat (PMMA)
- Ambient operating temperature: -40 °C to +70 °C
- Dimensions (H x L x W): 10mm x 2000mm x 11mm
- Weight: 0.1 kg
Key Features
- Through-beam system with sender and receiver
- Flat type fiber-optic head with 90° deflection and array design
- Long fiber optic cable cell for extended sensing range
- Compatible with WLL80, WLL180, GLL170(T) amplifiers
- Minimal object diameter detection of 0.25 mm
- Integrated lens with 13.69° angle of dispersion
- Optical fiber cable can be shortened
- Includes adapter sleeves and fiber cutter
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection with compatible amplifiers and optimal sensor performance.
Applications
- Area detection in industrial automation
- Use with compatible fiber-optic amplifiers WLL80, WLL180, GLL170(T)
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce waste and replacement frequency
- Energy-efficient sensing reduces power consumption in automation systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK LL3-TZ10 fiber-optic cable is available for immediate purchase, ideal for industrial automation and area detection applications.
