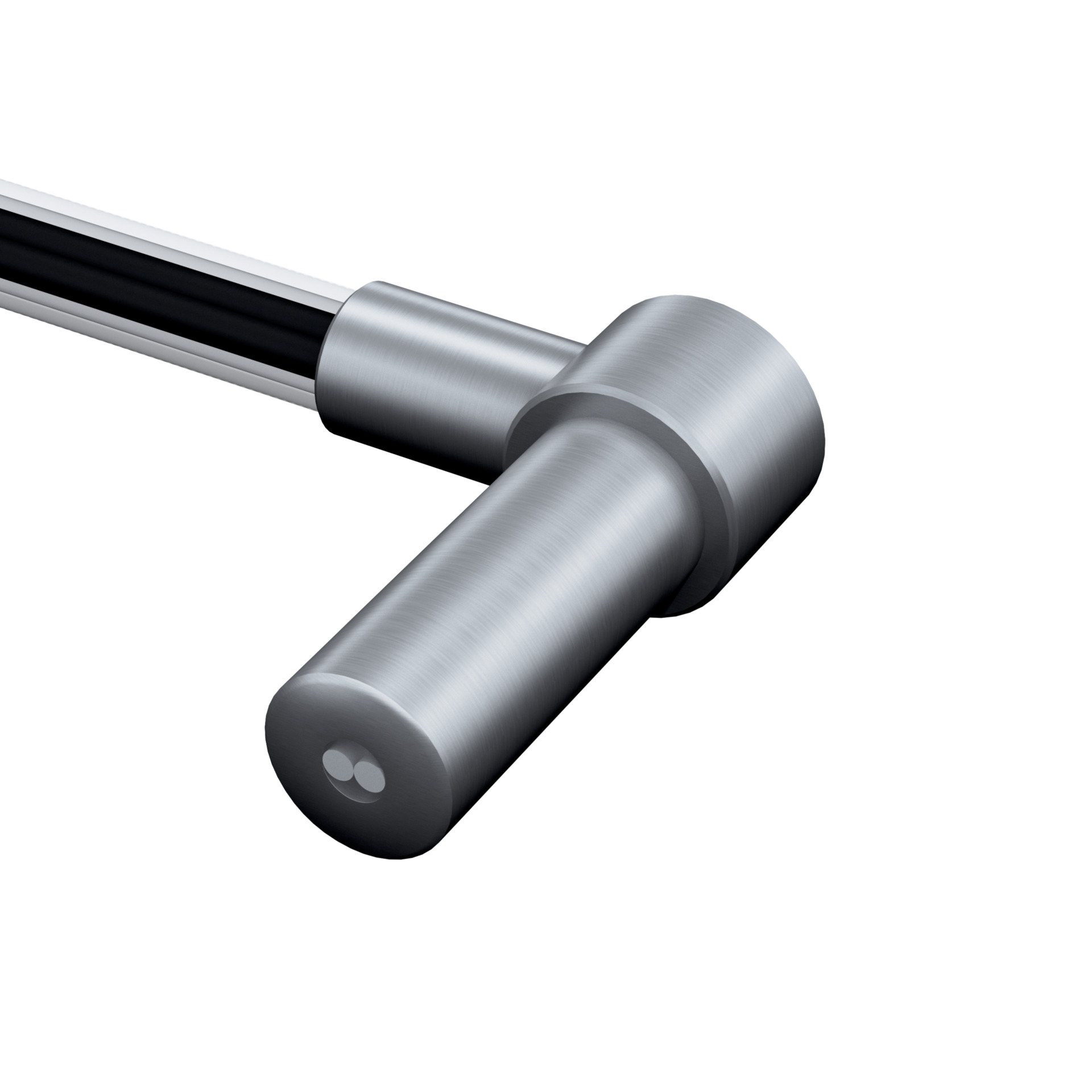

Fiber Optic Cable Sensor | Proximity System | 90° Deflection | 4000 mm Length | by SICK
The Fiber Optic Cable Sensor is designed for precision proximity sensing in industrial automation. With a smooth sleeve and 90° deflection head, it detects minimal object diameters of just 0.02 mm. Built with a durable stainless steel head and PE hose for easy cleaning, this sensor operates effectively in temperatures ranging from -55 °C to +70 °C, making it ideal for various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Proximity system
- Fiber-optic head design: Smooth sleeve, 90° deflection
- Sensing range: Dependent on fiber optic amplifier used
- Minimal object diameter: 0.02 mm
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: No
- Compatibility with infrared light: No
- Optical fiber cable can be shortened: Yes
- Adapter end sleeves required: Yes
- Included with delivery: Adapter sleeve BF-WLL160-13 (1.3 mm), FC fiber cutter (5304141)
- Light emission: Radial
- Smooth sleeve diameter: 6 mm
- Fiber length: 4000 mm
- Bending radius: 25 mm
- Dynamic flexibility (robotics): No
- Outside diameter, optical fiber cable connection: 1.3 mm
- Fiber arrangement: Singlefiber
- Core structure: 2 x Ø 1.0 mm Singlefiber
- Material: Stainless steel head, polyethylene (PE) sheath, polymethylmethacrylate (PMMA) fibers
- Ambient operating temperature: -55 °C to +70 °C
- Dimensions (H x L x W): 6mm x 4000mm x 6mm
- Weight: 0.1 kg
Key Features
- Fiber-optic cable with smooth sleeve and 90° deflection fiber-optic head
- Equipped with PE hose and stainless steel head for easy cleaning
- Compatible with fiber-optic amplifiers WLL80, WLL180, GLL170(T)
- Minimal object diameter detection of 0.02 mm
- Radial light emission with 60° angle of dispersion
- Optical fiber cable can be shortened with adapter end sleeves
- Fiber length of 4000 mm with 6 mm smooth sleeve diameter
- Material: Stainless steel head, polyethylene (PE) sheath, polymethylmethacrylate (PMMA) fibers
- Operating temperature range from -55 °C to +70 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems to ensure proper connection and calibration with compatible amplifiers.
Applications
- Standard proximity sensing applications requiring fiber-optic cables
- Industrial automation and detection systems
- Environments requiring easy cleaning with PE hose and stainless steel head
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable materials reduce replacement frequency and waste
- Long operating temperature range supports diverse environments, reducing need for multiple product variants
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty details.
Available Now
The SICK LL3-DV114000S01 fiber-optic cable is available for immediate purchase, ideal for industrial proximity sensing and automation applications.
