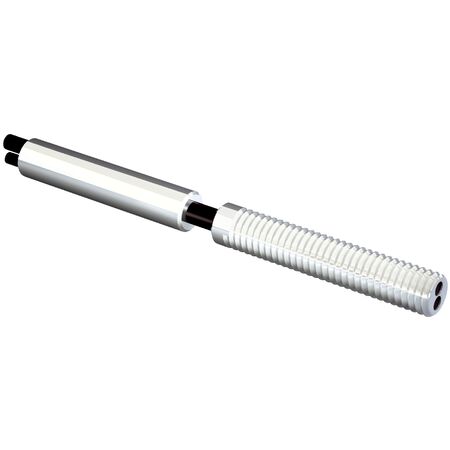

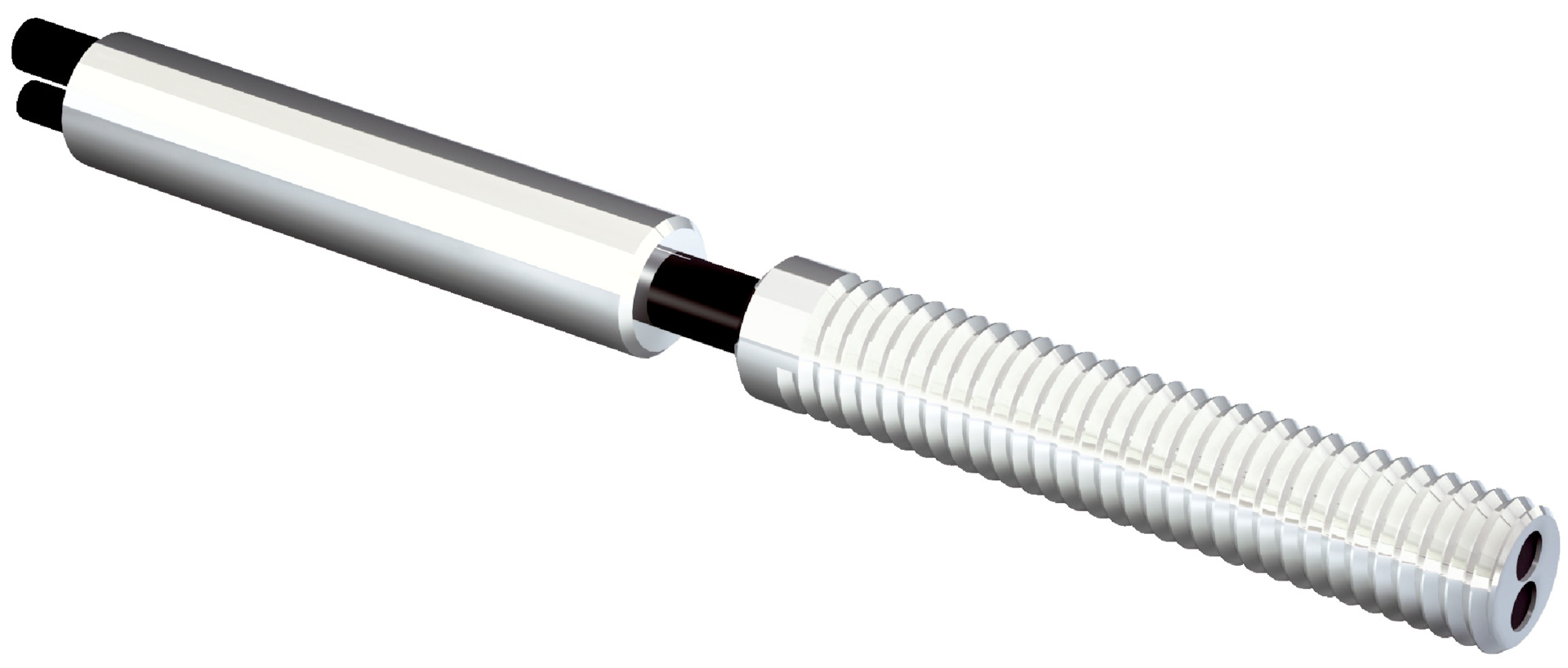

Fiber Optic Cable Sensor LL3-DK21 | Threaded Sleeve Design | 260 mm Sensing Range | Stainless Steel Head | by SICK
The LL3-DK21 fiber optic cable sensor is designed for standard proximity sensing applications, featuring a maximum sensing range of 260 mm and a threaded sleeve design for easy installation. Built for industrial environments, this sensor offers durability with its stainless steel head and operates effectively in temperatures ranging from -40 °C to +70 °C, ensuring reliable performance in various conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Proximity system
- Fiber-optic head design: Threaded sleeve
- Compatible fiber-optic amplifiers: WLL80, WLL180, GLL170(T)
- Sensing range max.: 260 mm (WLL80 at 8 ms)
- Minimal object diameter: 0.013 mm
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: Yes
- Compatibility with infrared light: No
- Optical fiber cable can be shortened: Yes
- Adapter end sleeves required: No
- Optical fiber head material: Stainless steel
- Light emission: Axial
- Thread diameter (housing): M3
- Fiber length: 500 mm
- Bending radius: 15 mm
- Dynamic flexibility (robotics): No
- Outside diameter, optical fiber cable connection: 1.3 mm
- Fiber arrangement: Coaxial
- Core structure: S: Ø 0.25 mm, R: 10 x Ø 0.125 mm
- Sheath material: Polyethylene (PE)
- Fibers material: Polymethylmethacrylate (PMMA)
- Ambient operating temperature: -40 °C to +70 °C
- Dimensions (H x L x W): 3mm x 500mm x 3mm
- Weight: 0.1 kg
Key Features
- Fiber-optic cable with threaded sleeve design
- Maximum sensing range of 260 mm with WLL80 at 8 ms
- Minimal object diameter detection of 0.013 mm
- Angle of dispersion 60°
- No integrated lens, compatible with tip adapters
- Optical fiber cable can be shortened without adapter end sleeves
- Stainless steel optical fiber head with axial light emission
- Coaxial fiber arrangement with polymethylmethacrylate (PMMA) fibers
- Polyethylene (PE) sheath for durability
- Operating temperature range from -40 °C to +70 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems to ensure proper setup and safety.
Applications
- Standard proximity sensing applications
- Compatible with fiber-optic amplifiers WLL80, WLL180, GLL170(T)
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce waste and replacement frequency
- Low power consumption when used with compatible amplifiers
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for details.
Available Now
The SICK LL3-DK21 fiber-optic cable is available for immediate purchase, ideal for standard proximity sensing applications in industrial environments.
