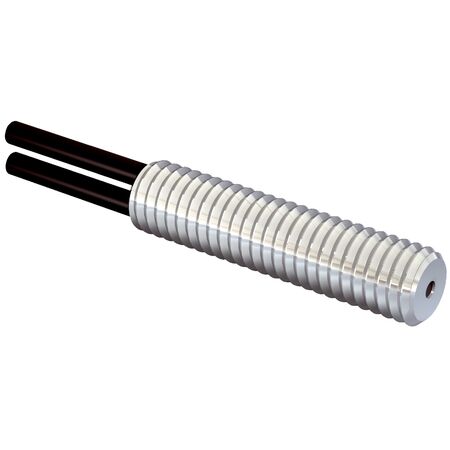

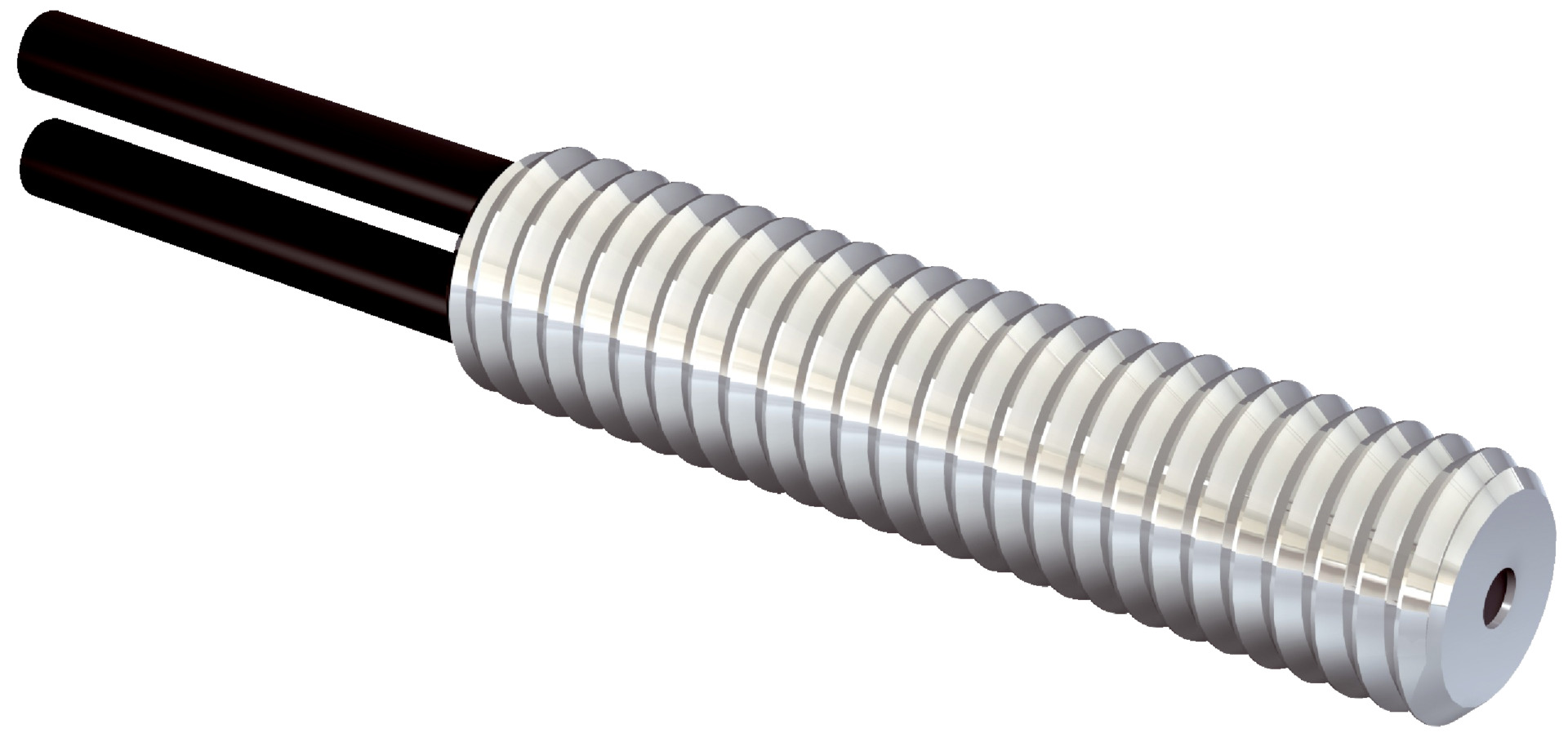

Fiber Optic Cable Sensor LL3-DR022000 | Threaded Sleeve Design | 300 mm Sensing Range | 60° Angle of Dispersion | by SICK
The Fiber Optic Cable Sensor LL3-DR022000 features a threaded sleeve design and a maximum sensing range of 300 mm, making it ideal for high flexible static and dynamic applications in robotics. With a minimal object diameter detection of just 0.015 mm and an axial light emission, this sensor enhances automation efficiency while ensuring durability and precision in industrial settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Proximity system
- Fiber-optic head design: Threaded sleeve
- Sensing range max.: 300 mm (with WLL80 at 8 ms)
- Minimal object diameter: 0.015 mm
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: No
- Compatibility with infrared light: No
- Optical fiber cable can be shortened: Yes
- Adapter end sleeves required: Yes
- Optical fiber head material: Stainless steel
- Light emission: Axial
- Thread diameter (housing): M3
- Fiber length: 2000 mm
- Bending radius: 4 mm
- Dynamic flexibility (robotics): Yes
- Outside diameter, optical fiber cable connection: 1 mm
- Fiber arrangement: Multi-fiber
- Core structure: 2 x Ø 0.25 mm
- Sheath material: Polyethylene (PE)
- Fibers material: Polymethylmethacrylate (PMMA)
- Ambient operating temperature: –40 °C to +70 °C
- Dimensions (H x L x W): 3mm x 2000mm x 3mm
- Weight: 0.1 kg
Key Features
- Fiber-optic cable with threaded sleeve head design
- Compatible with WLL80, WLL180, GLL170(T) fiber-optic amplifiers
- Maximum sensing range of 300 mm with WLL80 at 8 ms
- Minimal object diameter detection of 0.015 mm
- 60° angle of dispersion
- Axial light emission
- Optical fiber cable can be shortened
- Includes mounting accessories and fiber cutter
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems to ensure proper setup and safety.
Applications
- High flexible static applications
- Robotics dynamic flexible applications
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables precise sensing reducing waste and improving automation efficiency
- Durable materials extend product life reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK LL3-DR022000 Fiber-Optic Cable is available for immediate purchase, ideal for industrial automation and robotics sensing applications.
