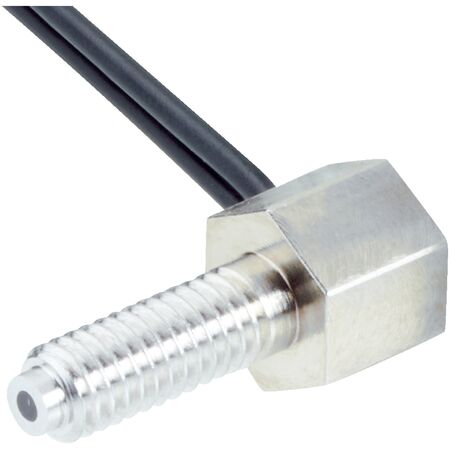

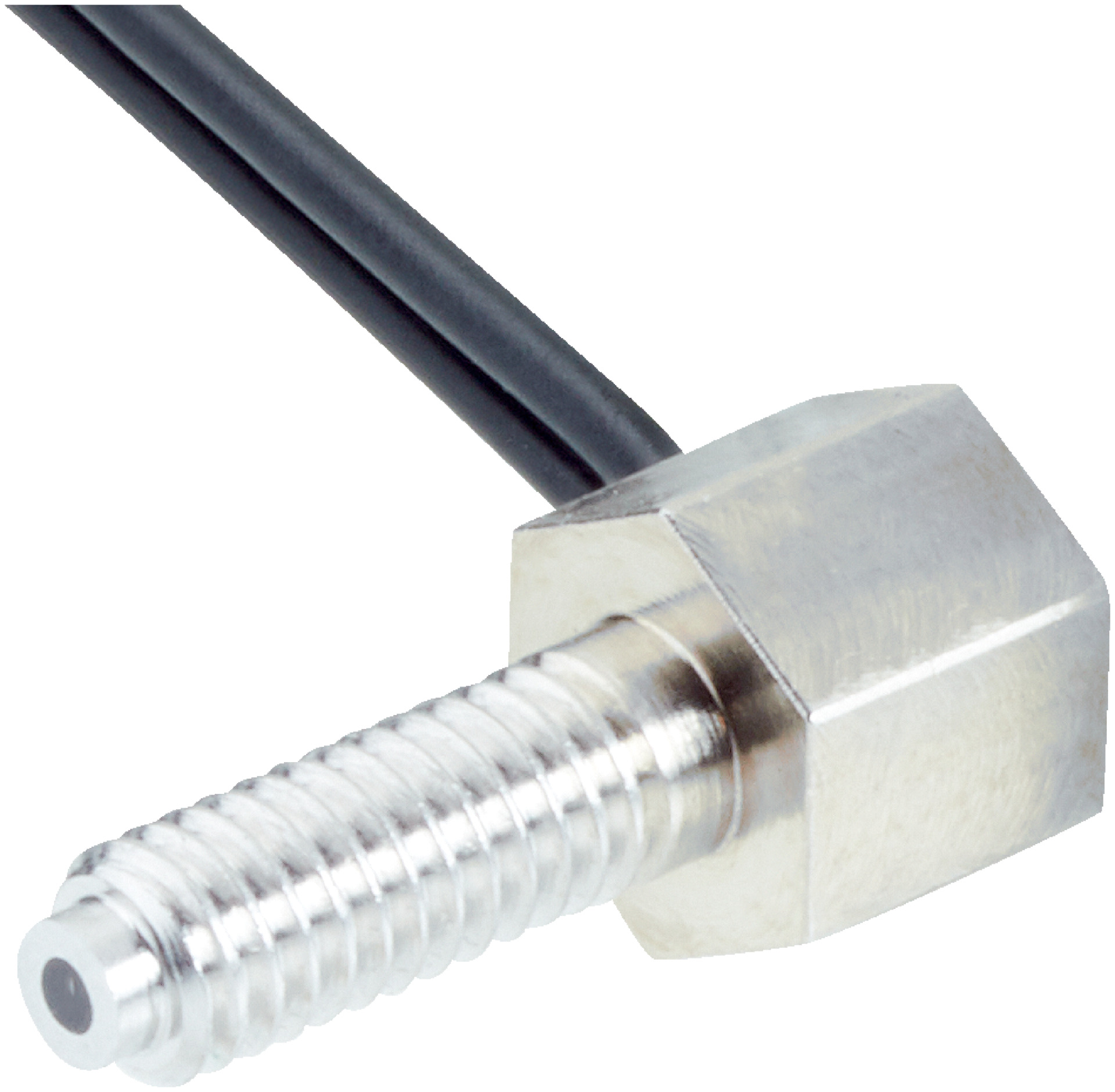

Fiber Optic Cable Sensor | Threaded Sleeve & 90° Deflection | 60° Angle of Dispersion | Radial Light Emission | by SICK
The Fiber Optic Cable Sensor LLTE-R1400111020E3 features a threaded sleeve design with a 90° deflection head, making it ideal for standard proximity sensing applications. With a 60° angle of dispersion and radial light emission, this sensor is compatible with various fiber-optic amplifiers, ensuring reliable performance in industrial automation and detection systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Proximity system
- Fiber-optic head design: Threaded sleeve, 90° deflection
- Compatible fiber-optic amplifiers: WLL80, WLL180, GLL170(T)
- Sensing range max.: Depends on fiber optic amplifier used
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: Yes
- Compatibility with infrared light: No
- Optical fiber cable can be shortened: Yes
- Adapter end sleeves required: Yes (1 x LLAC-AB10 / 1 x LLAC-AB13)
- Optical fiber head material: Stainless steel
- Light emission: Radial
- Thread diameter (housing): M4
- Fiber length: 2000 mm
- Bending radius: 5 mm
- Dynamic flexibility (robotics): No
- Outside diameter, optical fiber cable connection: 2.2 mm
- Fiber arrangement: Coaxial
- Core structure: Ø 0.5 mm Coaxial
- Sheath material: Polyethylene (PE)
- Fibers material: PMMA
- Ambient operating temperature: –40 °C to +60 °C
- Dimensions (H x L x W): 10mm x 2000mm x 10mm
- Weight: 0.1 kg
Key Features
- Fiber-optic cable with threaded sleeve and 90° deflection fiber-optic head
- Angle of dispersion: 60°
- Radial light emission
- Compatible with tip adapters
- Optical fiber cable can be shortened
- Includes fiber cutter, mounting set, and fiber adapter bushings
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems to ensure proper setup and safety.
Applications
- Standard proximity sensing applications
- Compatible with fiber-optic amplifiers WLL80, WLL180, GLL170(T)
- Industrial automation and detection systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS compliant, ensuring reduced hazardous substances
- Durable materials reduce waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for details.
Available Now
The SICK LLTE-R1400111020E3 fiber-optic cable is available for immediate purchase, ideal for industrial proximity sensing and automation applications.
