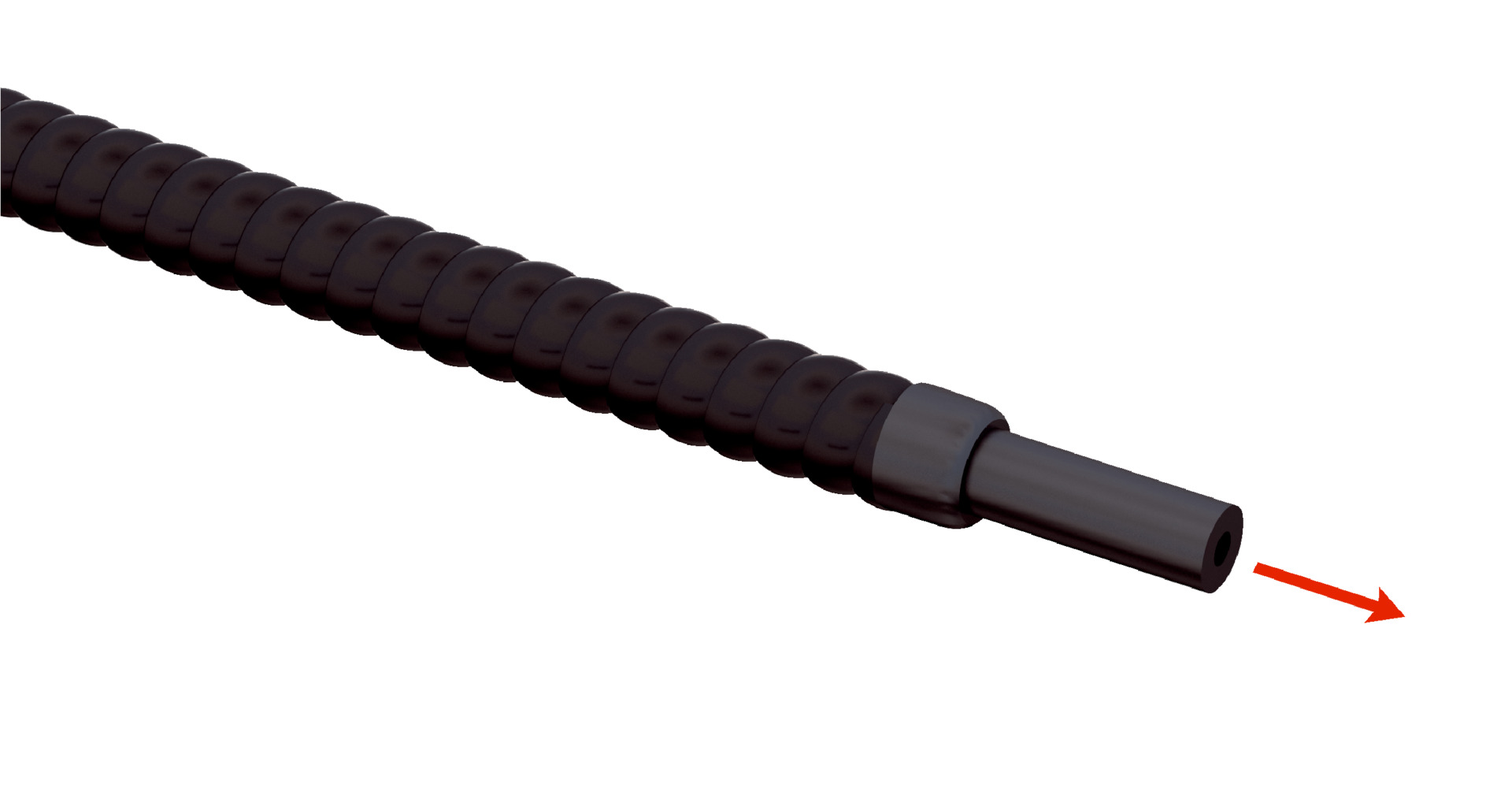

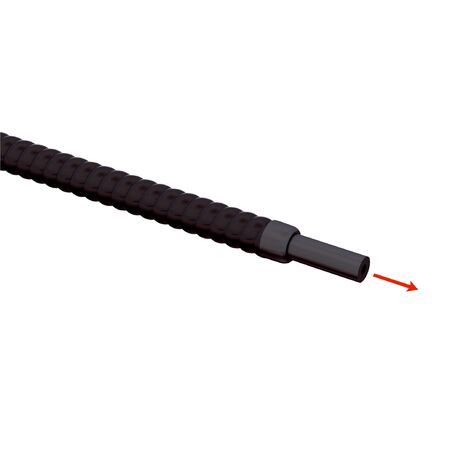

Fiber Optic Cable Sensor LL3-LM32450 | Through-Beam System | 0.5 mm Object Detection | 450 mm Length | by SICK
The LL3-LM32450 fiber optic cable sensor features a through-beam system with a sender and receiver, designed for precise sensing in industrial automation. With a minimal object diameter detection of just 0.5 mm and a sensing range dependent on the fiber optic amplifier used, this sensor is perfect for applications requiring high accuracy and reliability. Built with a durable PVC sheath and glass fibers, it ensures longevity and efficiency in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Through-beam system with sender and receiver
- Fiber-optic head design: Smooth sleeve, Long end sleeve
- Sensing range: Dependent on fiber optic amplifier used
- Minimal object diameter: 0.5 mm
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: No
- Compatibility with infrared light: Yes
- Light emission: Axial
- Smooth sleeve diameter: 5.8 mm
- Optical fiber taper diameter: ≥ 4 mm
- Optical fiber taper length after 2 mm: ≥ 11.4 mm
- Fiber length: 450 mm
- Bending radius: 20 mm
- Dynamic flexibility (robotics): No
- Outside diameter, optical fiber cable connection: 2.2 mm
- Fiber arrangement: Single fiber
- Core structure: Single fiber
- Material sheath: Polyvinylchloride (PVC)
- Fibers: Glass
- Weight: 49 g
- Ambient operating temperature: –10 °C to +60 °C
- Dimensions (H x L x W): 6mm x 450mm x 6mm
- Weight: 0.1 kg
Key Features
- Through-beam system consisting of a sender and a receiver
- Fiber-optic head with smooth sleeve and long end sleeve design
- Minimal object diameter detection of 0.5 mm
- Angle of dispersion 60°
- Compatibility with infrared light
- No integrated lens or tip adapters required
- Axial light emission
- Chrome-plated metal coil optical fiber head
- Single fiber arrangement with glass fibers
- Polyvinylchloride (PVC) sheath for durability
- Fiber length of 450 mm with 20 mm bending radius
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems to ensure proper alignment and connection with compatible amplifiers.
Applications
- Standard sensing applications requiring fiber-optic cables
- Compatible with fiber-optic amplifiers WLL80, WLL180, GLL170(T)
- Industrial automation and object detection
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enables precise sensing reducing waste and improving process efficiency
- Durable materials extend product life reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK LL3-LM32450 fiber-optic cable is available for immediate purchase, ideal for industrial sensing and automation applications.
