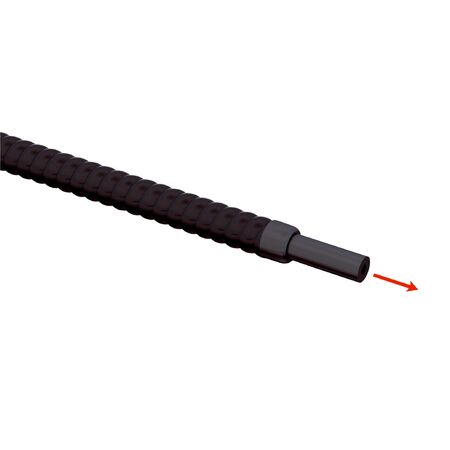

Fiber Optic Cable Sensor LL3-LM32750 | Through-Beam System | 0.5 mm Object Detection | 750 mm Length | by SICK
The LL3-LM32750 fiber optic cable sensor is designed for precise sensing in industrial automation, featuring a through-beam system with a sender and receiver. With a minimal object diameter detection of just 0.5 mm and a sensing range dependent on the fiber optic amplifier used, this sensor is perfect for standard sensing applications, ensuring efficiency and reliability in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Through-beam system with sender and receiver
- Fiber-optic head design: Smooth sleeve, Long end sleeve
- Sensing range: Dependent on fiber optic amplifier used
- Minimal object diameter: 0.5 mm
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: No
- Compatibility with infrared light: Yes
- Adapter end sleeves required: No
- Light emission: Axial
- Smooth sleeve diameter: 5.8 mm
- Optical fiber taper diameter: ≥ 4 mm
- Optical fiber taper length after 2 mm: ≥ 11.4 mm
- Fiber length: 750 mm
- Bending radius: 20 mm
- Dynamic flexibility (robotics): No
- Outside diameter, optical fiber cable connection: 2.2 mm
- Fiber arrangement: Single fiber
- Core structure: Single fiber
- Material: Chrome-plated metal coil (head), PVC sheath, Glass fibers
- Ambient operating temperature: –10 °C to +60 °C
- Dimensions (H x L x W): 6mm x 750mm x 6mm
- Weight: 0.1 kg
Key Features
- Through-beam system consisting of a sender and a receiver
- Fiber-optic head with smooth sleeve and long end sleeve design
- Minimal object diameter detection of 0.5 mm
- Angle of dispersion 60°
- Compatibility with infrared light
- No integrated lens or tip adapters required
- Chrome-plated metal coil optical fiber head
- Axial light emission
- Fiber length 750 mm with 20 mm bending radius
- Single fiber core structure with PVC sheath and glass fibers
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems to ensure proper alignment and connection with compatible amplifiers.
Applications
- Standard sensing applications requiring fiber-optic cables
- Compatible with fiber-optic amplifiers WLL80, WLL180, GLL170(T)
- Industrial automation and object detection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables precise sensing reducing waste and improving process efficiency
- Durable materials extend product life reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK LL3-LM32750 fiber-optic cable is available for immediate purchase, ideal for industrial sensing and automation applications.
