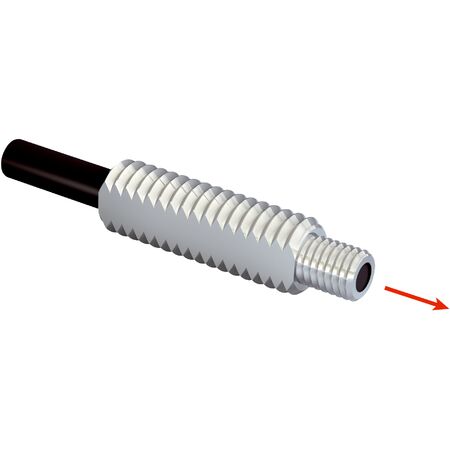

Fiber Optic Cable Sensor LL3-TB01-30 | Through-Beam System | 0.5 mm Object Detection | Stainless Steel Head | by SICK
The Fiber Optic Cable Sensor LL3-TB01-30 features a reliable through-beam system with a sender and receiver, designed for standard sensing applications. With a minimal object diameter detection of just 0.5 mm and a durable stainless steel head, this sensor is perfect for industrial environments requiring precision and longevity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Through-beam system with sender and receiver
- Fiber-optic head design: Threaded sleeve
- Sensing range max: Dependent on fiber optic amplifier used
- Minimal object diameter: 0.5 mm
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: Yes
- Compatibility with infrared light: No
- Optical fiber cable can be shortened: Yes
- Adapter end sleeves required: No
- Optical fiber head material: Stainless steel
- Light emission: Axial
- Thread diameter (housing): M4
- Optical fiber taper diameter: ≥ 2.6 mm
- Optical fiber taper length after 2 mm: ≥ 3 mm
- Fiber length: 30,000 mm
- Bending radius: 30 mm
- Dynamic flexibility (robotics): No
- Outside diameter, optical fiber cable connection: 2.2 mm
- Fiber arrangement: Singlefiber
- Core structure: Ø 1.5 mm Singlefiber
- Sheath material: Polyethylene (PE)
- Fibers material: Polymethylmethacrylate (PMMA)
- Ambient operating temperature: –40 °C to +70 °C
- Sensing ranges with WLL180T operating modes: 160 mm to 2800 mm
- Dimensions (H x L x W): 10mm x 300mm x 10mm
- Weight: 0.1 kg
Key Features
- Through-beam system consisting of a sender and a receiver
- Threaded sleeve fiber-optic head design
- Minimal object diameter detection of 0.5 mm
- Angle of dispersion 60°
- No integrated lens
- Compatibility with tip adapters
- Optical fiber cable can be shortened without adapter end sleeves
- Mounting included with 4 x M4 hexagon nuts, 4 x washers, and FC fiber cutter
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper connection with compatible fiber-optic amplifiers and secure mounting.
Applications
- Standard sensing applications requiring fiber-optic cables
- Use with compatible fiber-optic amplifiers WLL80, WLL180, GLL170(T), WLL24 Ex
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel optical fiber head reduces replacement frequency
- Long fiber length (30 meters) minimizes need for additional cabling and waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for details.
Available Now
The SICK LL3-TB01-30 fiber-optic cable is available for immediate purchase, ideal for industrial sensing applications requiring reliable through-beam detection.
