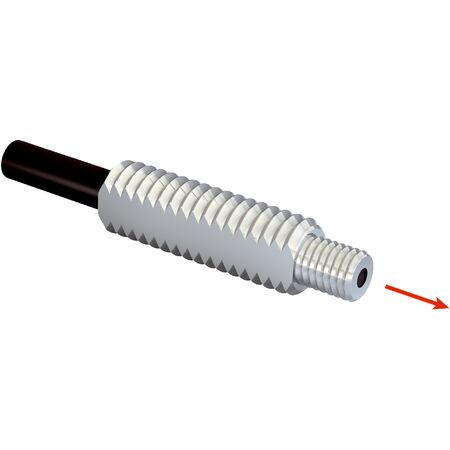

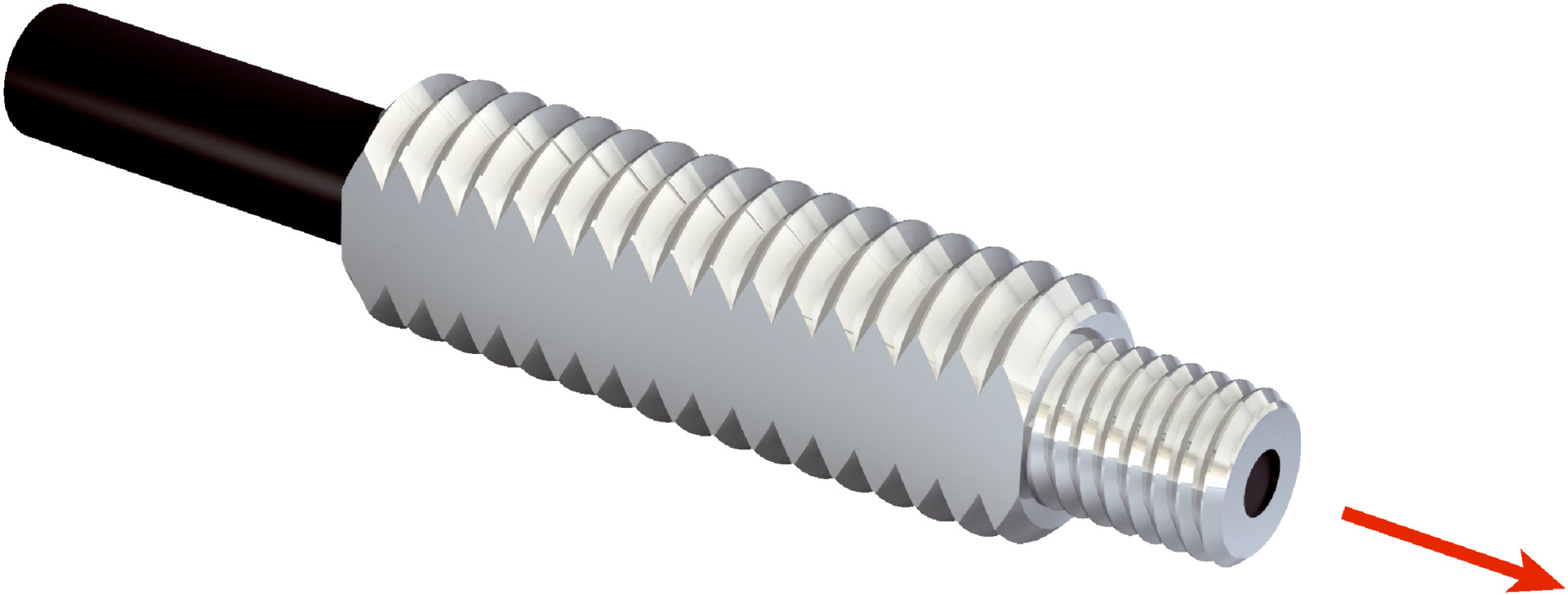

Fiber Optic Cable Sensor LL3-TR01-05 | Through-Beam System | 3,330 mm Sensing Range | by SICK
The LL3-TR01-05 fiber optic cable sensor features a through-beam system with a sender and receiver, designed for high flexibility in static and dynamic sensing applications. With a sensing range of up to 3,330 mm and a minimal object diameter detection of 0.3 mm, this sensor is perfect for robotics and industrial automation, ensuring precision and reliability in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 10mm x 5000mm x 10mm
- Weight: 0.1 kg
Key Features
- Through-beam system consisting of a sender and a receiver
- Threaded sleeve fiber-optic head design
- Compatible with fiber-optic amplifiers WLL80, WLL180, GLL170(T), WLL24 Ex
- Sensing range up to 3,330 mm with WLL80 at 8 ms
- Minimal object diameter detection of 0.3 mm
- 60° angle of dispersion
- No integrated lens
- Compatibility with tip adapters
- Optical fiber cable can be shortened without adapter end sleeves
- Includes mounting hardware and FC fiber cutter
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper setup and compatibility with fiber-optic amplifiers.
Applications
- High flexible (static) sensing applications
- Robotics (dynamic flexible) sensing applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials such as copper-zinc alloy and polyethylene sheath ensure long product life reducing waste
- Supports robotic dynamic flexibility reducing need for frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK LL3-TR01-05 fiber-optic cable is available for immediate purchase, ideal for industrial sensing and robotic applications requiring high flexibility and precision.
