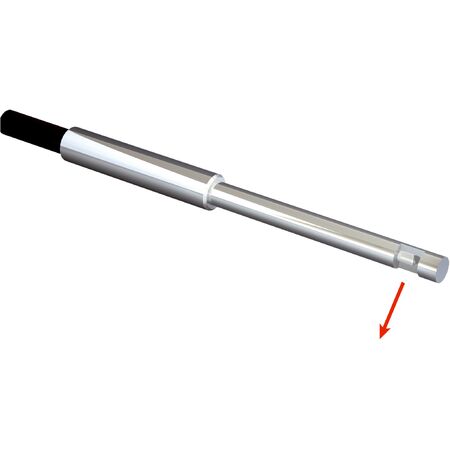

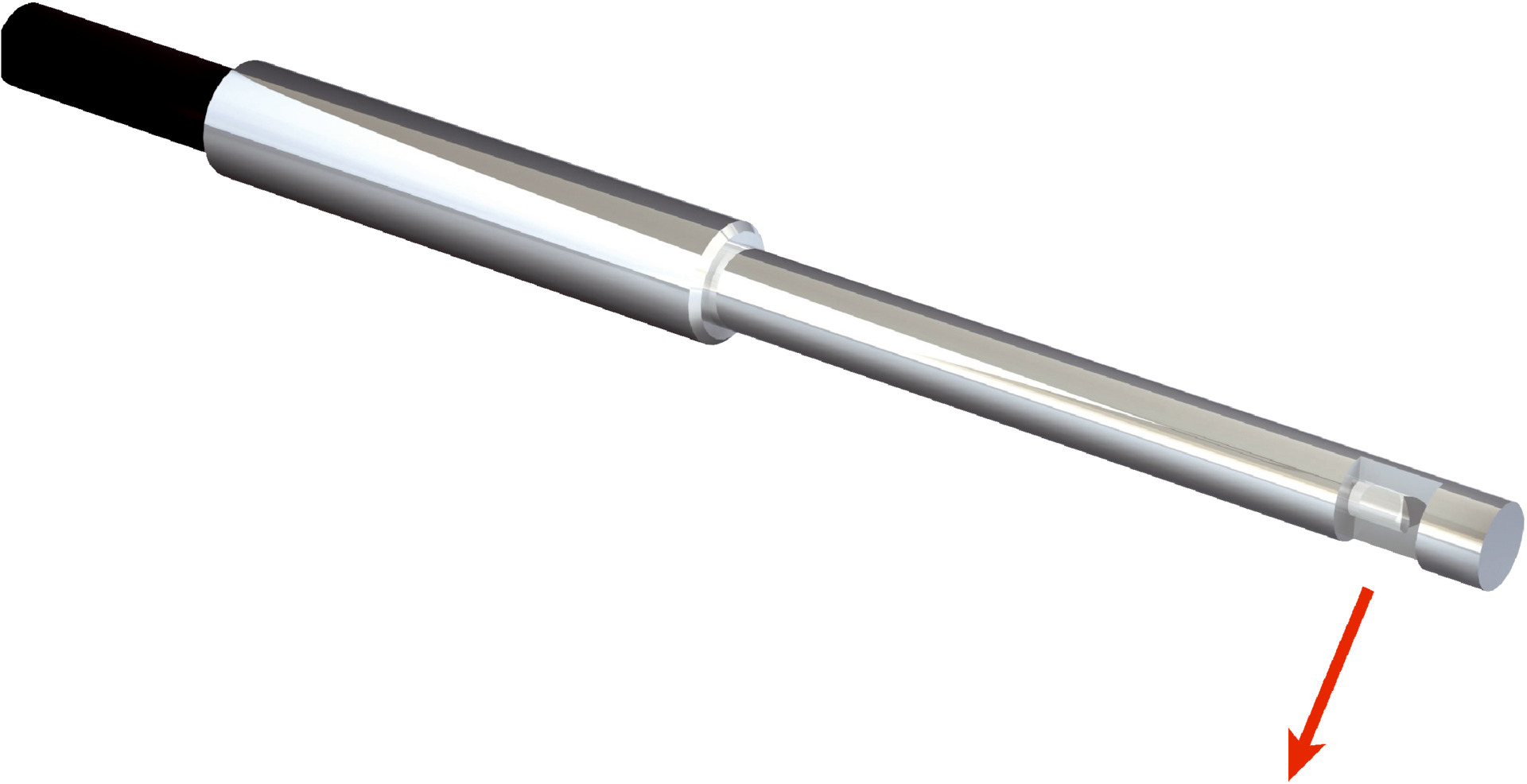

Fiber Optic Cable Sensor | Through-Beam System | 3,590 mm Sensing Range | Stainless Steel Head | by SICK
The Fiber Optic Cable Sensor features a through-beam system with a maximum sensing range of 3,590 mm, making it ideal for standard sensing applications in industrial automation. Designed for compatibility with various fiber-optic amplifiers, this sensor offers a minimal object diameter detection of 0.2 mm and operates efficiently in temperatures ranging from -40 °C to +70 °C. Its durable stainless steel head ensures longevity and reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Through-beam system with sender and receiver
- Fiber-optic head design: Smooth sleeve, Long end sleeve, 90° deflection
- Compatible fiber-optic amplifiers: WLL80, WLL180, GLL170(T), WLL24 Ex
- Sensing range max.: 3,590 mm (WLL80 at 8 ms)
- Minimal object diameter: 0.2 mm
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: No
- Compatibility with infrared light: No
- Optical fiber cable can be shortened: Yes
- Adapter end sleeves required: No
- Optical fiber head material: Stainless steel
- Light emission: Radial
- Smooth sleeve diameter: 3 mm
- Optical fiber taper diameter: ≥ 2 mm
- Optical fiber taper length after 2 mm: ≥ 20 mm
- Fiber length: 2,000 mm
- Bending radius: 25 mm
- Dynamic flexibility (robotics): No
- Outside diameter, optical fiber cable connection: 2.2 mm
- Fiber arrangement: Singlefiber
- Core structure: Ø 1.0 mm Singlefiber
- Sheath material: Polyethylene (PE)
- Fiber material: Polymethylmethacrylate (PMMA)
- Operating temperature: –40 °C to +70 °C
- Dimensions (H x L x W): 10mm x 2000mm x 10mm
- Weight: 0.1 kg
Key Features
- Through-beam system consisting of a sender and a receiver
- Fiber-optic head designs include smooth sleeve, long end sleeve, and 90° deflection
- Maximum sensing range of 3,590 mm with WLL80 at 8 ms
- Minimal object diameter detection of 0.2 mm
- Angle of dispersion of 60°
- Optical fiber cable can be shortened without adapter end sleeves
- Includes FC fiber cutter (5304141)
- Optical fiber head made of stainless steel with radial light emission
- Smooth sleeve diameter of 3 mm and optical fiber taper diameter ≥ 2 mm
- Fiber length of 2,000 mm with bending radius of 25 mm
- Sheath made of polyethylene (PE) and fibers made of polymethylmethacrylate (PMMA)
- Operating temperature range from –40 °C to +70 °C
Professional Installation Requirements
- Installation by qualified personnel familiar with fiber-optic sensor systems is recommended to ensure proper setup and performance.
Applications
- Standard sensing applications requiring fiber-optic cables
- Compatible with fiber-optic amplifiers WLL80, WLL180, GLL170(T), WLL24 Ex
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce waste and extend product life
- Energy-efficient sensing reduces power consumption in automation systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's warranty policy for details.
Available Now
The SICK LL3-TV01 fiber-optic cables are available for immediate purchase, ideal for industrial sensing and automation applications.
