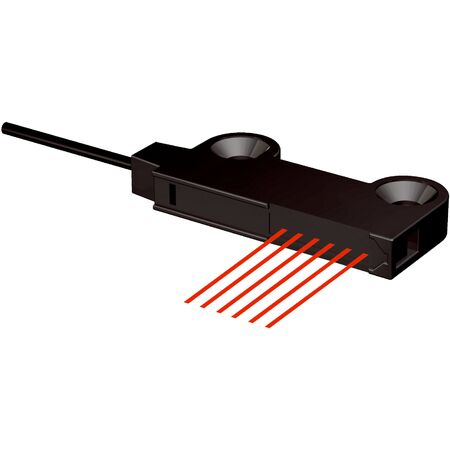

Fiber Optic Cable Sensor LL3-TZ09 | Through-Beam System | 3600mm Sensing Range | Integrated Lens | by SICK
The LL3-TZ09 fiber optic cable sensor features a through-beam system with a flat type head and a sensing range of up to 3600 mm. Ideal for industrial automation and object detection, this sensor is designed for high flexibility and precision, ensuring optimal performance in manufacturing processes. With a minimal object diameter detection of just 0.25 mm, it’s perfect for various applications requiring reliable sensing solutions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Through-beam system with sender and receiver
- Fiber-optic head design: Flat type, 90° deflection, Array
- Sensing range max: Up to 3600 mm with WLL80 amplifier
- Minimal object diameter: 0.25 mm
- Angle of dispersion: 17.62°
- Integrated lens: Yes
- Optical fiber cable length: 2000 mm
- Bending radius: 1 mm
- Material: Polyamid (PA) head, Polyethylene (PE) sheath, Polymethylmethacrylate (PMMA) fibers
- Operating temperature range: -40 °C to +55 °C
- Fiber arrangement: Multi-fiber, 16 x Ø 0.265 mm cores
- Dimensions (H x L x W): 10mm x 2000mm x 11mm
- Weight: 0.1 kg
Key Features
- Through-beam system consisting of a sender and a receiver
- Flat type fiber-optic head with 90° deflection and array design
- Long fiber optic cable cell for extended sensing range
- Compatible with fiber-optic amplifiers WLL80, WLL180, GLL170(T)
- Minimal object diameter detection of 0.25 mm
- Integrated lens with 17.62° angle of dispersion
- Optical fiber cable can be shortened
- Includes adapter sleeves and fiber cutter for installation
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and optimal sensor performance.
Applications
- High flexible (static) area detection
- Industrial automation sensing
- Object detection in manufacturing processes
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables precise detection reducing waste and improving process efficiency
- Durable materials extend product life and reduce replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK LL3-TZ09 fiber-optic cable is available for immediate purchase, ideal for industrial sensing and automation applications.
