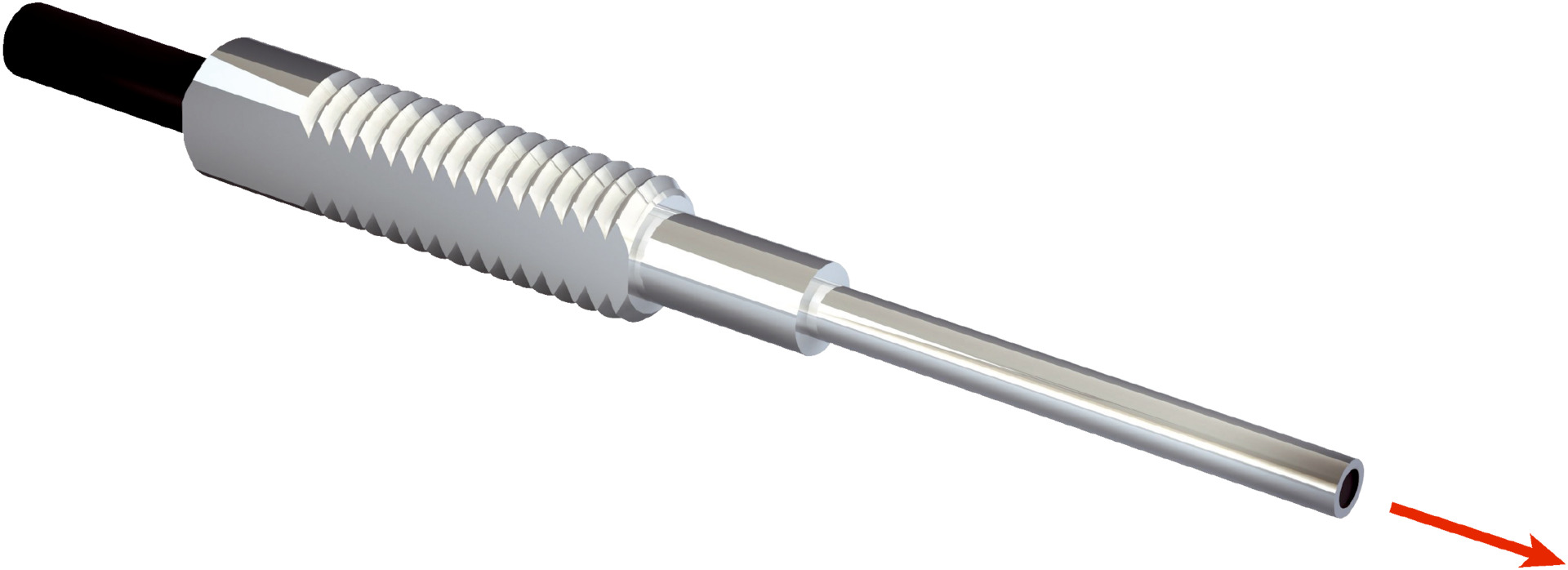

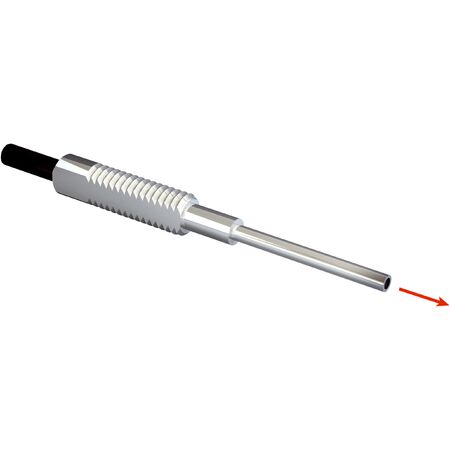

Fiber Optic Cable Sensor LL3-TB03S01 | Through-Beam System | 3600mm Sensing Range | Stainless Steel Design | by SICK
The Fiber Optic Cable Sensor LL3-TB03S01 features a through-beam system with a sender and receiver, making it ideal for standard sensing applications. With a maximum sensing range of 3,600 mm and a minimal object diameter detection of just 0.2 mm, this sensor is built for precision in industrial automation. Its durable stainless steel design ensures longevity and reliability in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Through-beam system with sender and receiver
- Fiber-optic head design: Threaded sleeve, long end sleeve, bendable sleeve, 90° deflection
- Compatible fiber-optic amplifiers: WLL80, WLL180, GLL170(T), WLL24 Ex
- Sensing range max.: 3,600 mm (WLL80 at 8 ms)
- Minimal object diameter: 0.2 mm
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: No
- Compatibility with infrared light: No
- Optical fiber cable can be shortened: Yes
- Adapter end sleeves required: No
- Optical fiber head material: Stainless steel
- Light emission: Axial
- Thread diameter (housing): M4
- Optical fiber taper diameter: ≥ 1.5 mm
- Optical fiber taper length after 2 mm: ≥ 120 mm
- Minimum bend radius of end sleeve: 10 mm
- Fiber length: 2,000 mm
- Bending radius: 25 mm
- Dynamic flexibility (robotics): No
- Outside diameter, optical fiber cable connection: 2.2 mm
- Fiber arrangement: Singlefiber
- Core structure: Ø 1.0 mm Singlefiber
- Sheath material: Polyethylene (PE)
- Fiber material: Polymethylmethacrylate (PMMA)
- Ambient operating temperature: –40 °C to +70 °C
- Dimensions (H x L x W): 10mm x 2000mm x 10mm
- Weight: 0.1 kg
Key Features
- Through-beam system consisting of a sender and a receiver
- Fiber-optic head designs include threaded sleeve, long end sleeve, bendable sleeve, and 90° deflection
- Maximum sensing range of 3,600 mm with WLL80 at 8 ms
- Minimal object diameter detection of 0.2 mm
- Angle of dispersion of 60°
- Optical fiber cable can be shortened without adapter end sleeves
- Includes mounting hardware and FC fiber cutter
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper setup and optimal performance.
Applications
- Standard sensing applications requiring fiber-optic cables
- Compatible with fiber-optic amplifiers WLL80, WLL180, GLL170(T), WLL24 Ex
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Long service life reduces waste and replacement frequency
- Energy-efficient sensing technology minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK LL3-TB03S01 fiber-optic cable is available for immediate purchase, ideal for industrial sensing and automation applications.
