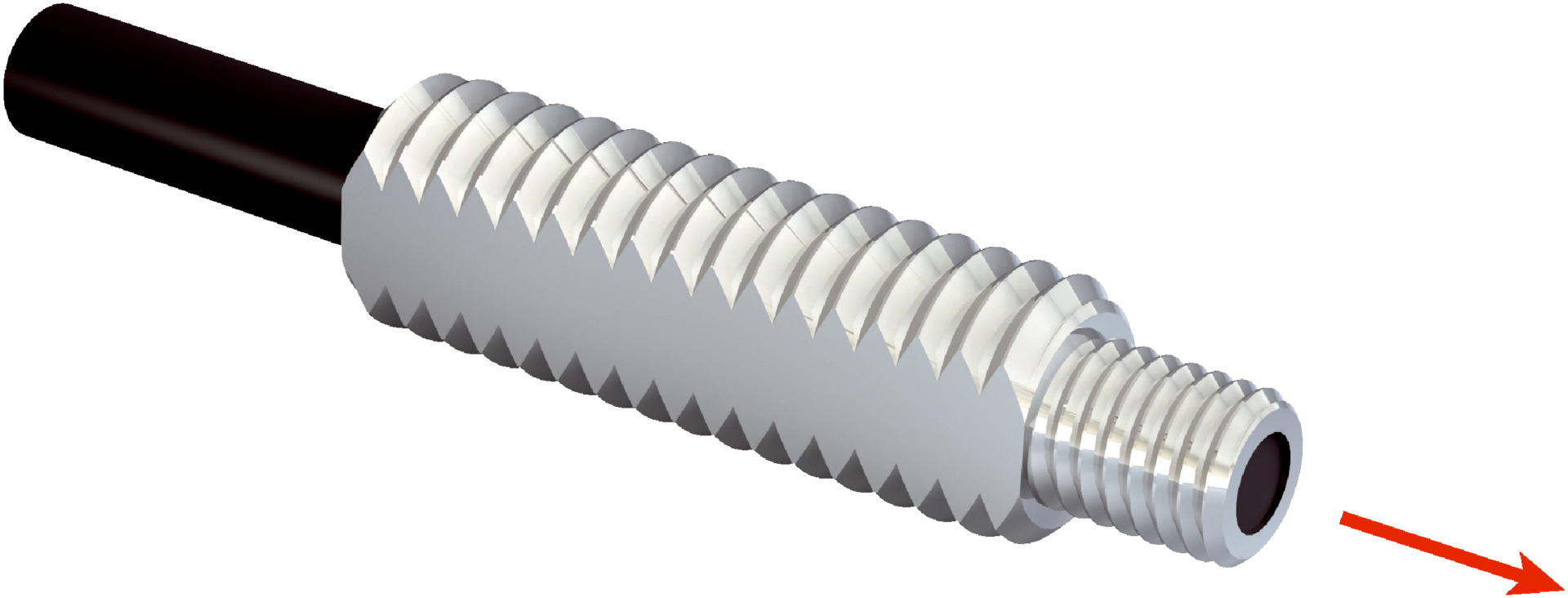

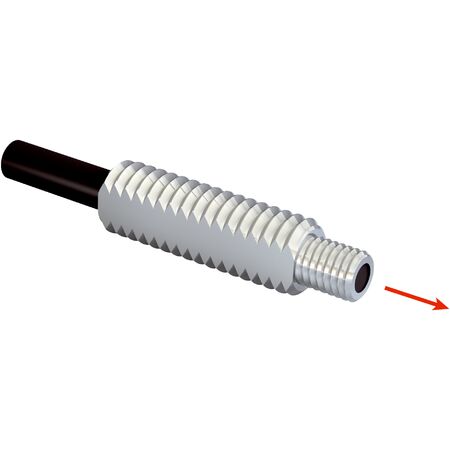

Fiber Optic Cable Sensor LL3-TB02 | Through-Beam System | 3600mm Sensing Range | Threaded Sleeve Design | by SICK
The LL3-TB02 fiber optic cable sensor features a through-beam system with a sender and receiver, offering a maximum sensing range of 3,600 mm. Designed for standard sensing applications, this sensor is ideal for industrial automation and compatible with various fiber-optic amplifiers. Its threaded sleeve design ensures easy installation and adaptability, making it a reliable choice for professionals.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Through-beam system with sender and receiver
- Fiber-optic head design: Threaded sleeve
- Compatible fiber-optic amplifiers: WLL80, WLL180, GLL170(T), WLL24 Ex
- Sensing range max.: 3,600 mm (WLL80 at 8 ms)
- Minimal object diameter: 0.2 mm
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: Yes
- Optical fiber cable can be shortened: Yes
- Thread diameter (housing): M4
- Optical fiber taper diameter: ≥ 2.6 mm
- Optical fiber taper length after 2 mm: ≥ 3 mm
- Fiber length: 2,000 mm
- Bending radius: 25 mm
- Outside diameter, optical fiber cable connection: 2.2 mm
- Fiber arrangement: Singlefiber
- Core structure: Ø 1.0 mm Singlefiber
- Material optical fiber head: Copper-zinc alloy (CuZn)
- Sheath: Polyethylene (PE)
- Fibers: Polymethylmethacrylate (PMMA)
- Ambient operating temperature: –40 °C to +70 °C
- Dimensions (H x L x W): 10mm x 50mm x 10mm
- Weight: 0.1 kg
Key Features
- Through-beam system consisting of a sender and a receiver
- Threaded sleeve fiber-optic head design
- Maximum sensing range of 3,600 mm with WLL80 at 8 ms
- Minimal object diameter detection of 0.2 mm
- Angle of dispersion 60°
- No integrated lens
- Compatibility with tip adapters
- Optical fiber cable can be shortened without adapter end sleeves
- Includes mounting hardware and FC fiber cutter
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper setup and compatibility with fiber-optic amplifiers.
Applications
- Standard sensing applications requiring fiber-optic cables
- Compatible with fiber-optic amplifiers WLL80, WLL180, GLL170(T), WLL24 Ex
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce waste and replacement frequency
- Energy-efficient sensing reduces power consumption in automation systems
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK LL3-TB02 fiber-optic cable is available for immediate purchase, ideal for industrial sensing and automation applications.
