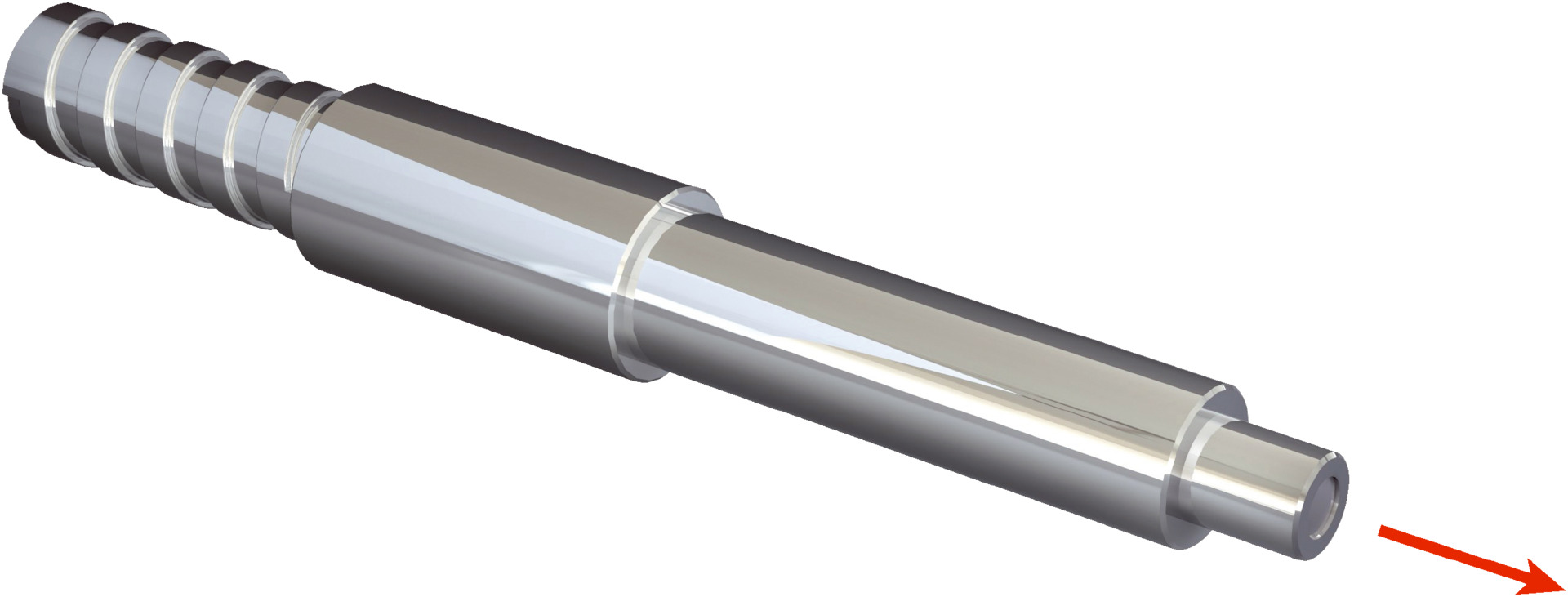

Fiber Optic Cable Sensor | Through-Beam System | Heat-Resistant up to 100°C | 2000 mm Length | by SICK
The Fiber Optic Cable Sensor features a through-beam system with a sender and receiver, designed for industrial sensing applications that require heat resistance up to 100°C. With a durable stainless steel construction and a fiber length of 2000 mm, it ensures reliable performance in extreme temperatures ranging from -60°C to +210°C. Ideal for use with compatible fiber-optic amplifiers, this sensor is perfect for demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Through-beam system with sender and receiver
- Fiber-optic head design: Threaded sleeve
- Application: Heat-resistant (≥100°C)
- Compatible fiber-optic amplifiers: WLL80, WLL180, GLL170(T)
- Minimal object diameter detection: 0.4 mm
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: Yes
- Compatibility with infrared light: Yes
- Adapter end sleeves required: No
- Included with delivery: Mounting, 4 x M4 hexagon nuts, 2 x washers
- Optical fiber head material: Stainless steel
- Light emission: Axial
- Thread diameter (housing): M4
- Optical fiber taper diameter: ≥ 2.6 mm
- Optical fiber taper length after 2 mm: ≥ 3 mm
- Fiber length: 2000 mm
- Bending radius: 25 mm
- Dynamic flexibility (robotics): No
- Outside diameter, optical fiber cable connection: 2.2 mm
- Fiber arrangement: Multi-fiber
- Core structure: Ø 1.5 mm multi-fiber
- Sheath material: Stainless steel
- Fibers material: Glass
- Ambient operating temperature: –60 °C to +210 °C
- Sensing ranges with WLL180T operating modes: 16 µs - 80 mm, 70 µs - 230 mm, 250 µs - 350 mm, 2 ms - 560 mm, 8 ms - 980 mm
- Dimensions (H x L x W): 10mm x 2000mm x 10mm
- Weight: 0.1 kg
Key Features
- Through-beam system consisting of a sender and a receiver
- Threaded sleeve fiber-optic head design
- Heat-resistant up to ≥100°C
- Long connection sleeves for connection to WLL24 Ex
- Compatible with infrared light
- Mounting included with 4 x M4 hexagon nuts and 2 x washers
- Stainless steel optical fiber head and sheath
- Multi-fiber glass core structure with 1.5 mm diameter
- Axial light emission with 60° angle of dispersion
- Fiber length of 2000 mm with 25 mm bending radius
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection with compatible fiber-optic amplifiers and secure mounting.
Applications
- Industrial sensing applications requiring heat-resistant fiber-optic cables
- Use with compatible fiber-optic amplifiers WLL80, WLL180, GLL170(T)
- Environments with ambient temperatures from -60°C to +210°C
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction reduces replacement frequency and waste
- Heat resistance minimizes energy consumption for cooling in high-temperature environments
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty details.
Available Now

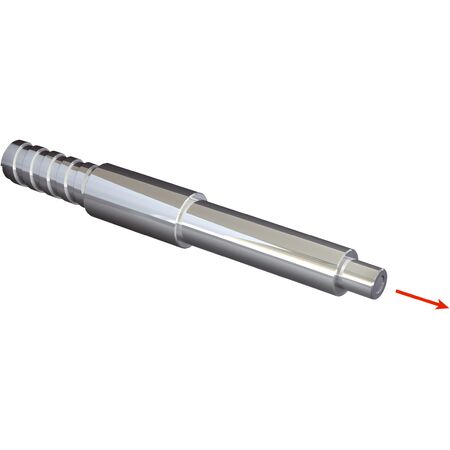

The SICK LL3-TW012000S01 fiber-optic cable is available for immediate purchase, ideal for industrial sensing applications requiring heat-resistant fiber optic solutions.
