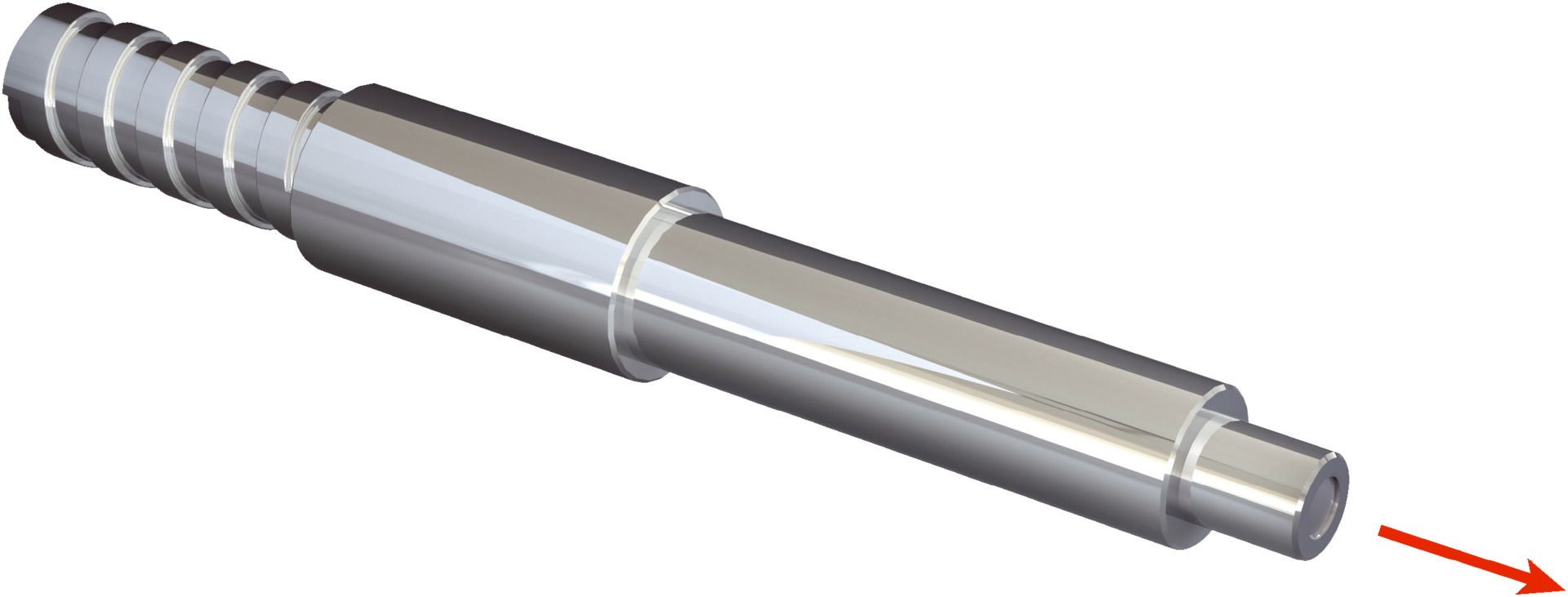

Fiber Optic Cable Sensor | Through-Beam System | Heat-Resistant Design | Stainless Steel | by SICK
The Fiber Optic Cable Sensor features a through-beam system with a sender and receiver, designed for industrial sensing applications. With a heat-resistant capability of up to 210°C and a threaded sleeve fiber-optic head, it ensures reliable performance in extreme environments. Ideal for use with compatible fiber-optic amplifiers, this sensor is built for durability and efficiency, making it perfect for demanding industrial settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Through-beam system with sender and receiver
- Fiber-optic head design: Threaded sleeve
- Sensing range: Dependent on fiber optic amplifier used (up to 980 mm with WLL180T)
- Minimal object diameter detection: 0.4 mm
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: Yes
- Optical fiber head material: Stainless steel
- Light emission: Axial
- Thread diameter (housing): M4
- Optical fiber taper diameter: ≥ 2.6 mm
- Optical fiber taper length after 2 mm: ≥ 3 mm
- Fiber length: 5000 mm
- Bending radius: 25 mm
- Dynamic flexibility (robotics): No
- Outside diameter of optical fiber cable connection: 2.2 mm
- Fiber arrangement: Multi-fiber
- Core structure: Ø 1.5 mm multi-fiber
- Sheath material: Stainless steel
- Fibers material: Glass
- Ambient operating temperature: -60 °C to +210 °C
- Dimensions (H x L x W): 10mm x 50mm x 10mm
- Weight: 0.1 kg
Key Features
- Through-beam system consisting of a sender and a receiver
- Threaded sleeve fiber-optic head design
- Heat-resistant up to ≥100°C
- Compatible with infrared light
- Optical fiber head made of stainless steel with axial light emission
- Multi-fiber optical fiber with glass fibers and stainless steel sheath
- Bending radius of 25 mm
- Includes mounting hardware: 4 x M4 hexagon nuts and 2 x washers
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems and electrical safety standards.
Applications
- Industrial sensing applications requiring heat-resistant fiber-optic cables
- Use with compatible fiber-optic amplifiers WLL80, WLL180, GLL170(T)
- Environments with ambient temperatures from -60°C to +210°C
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction reduces replacement frequency and waste
- Heat resistance minimizes failure in high-temperature environments, reducing downtime and resource use
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK LL3-TW015000 fiber-optic cable is available for immediate purchase, ideal for industrial sensing applications requiring heat-resistant and reliable fiber-optic solutions.
