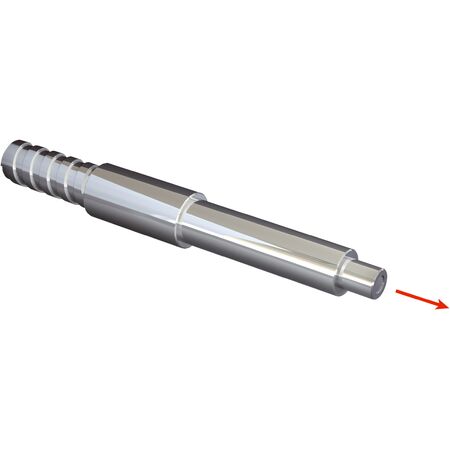

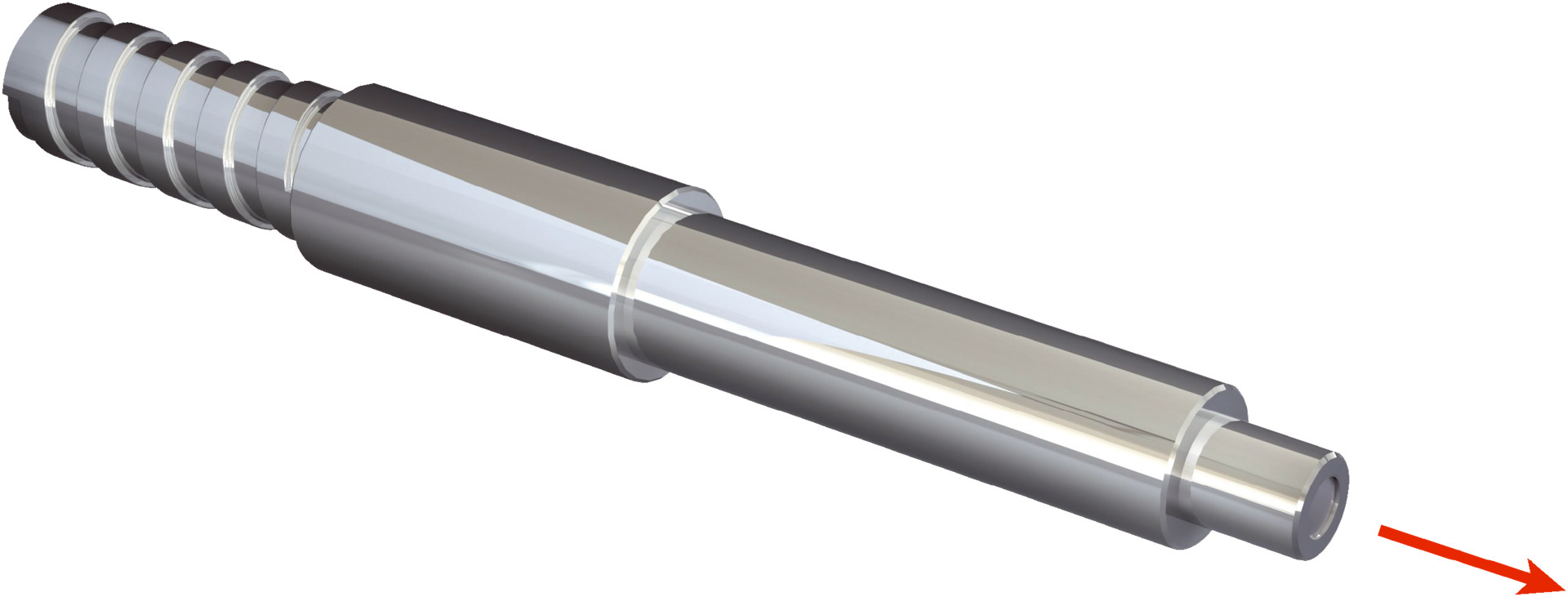

Fiber Optic Cable Sensor | Through-Beam System | Heat-Resistant up to 100°C | Stainless Steel Design | by SICK
The Fiber Optic Cable Sensor features a through-beam system with a sender and receiver, designed for industrial sensing applications that require heat resistance up to 100°C. With a threaded sleeve design and stainless steel construction, it ensures durability and reliability in extreme environments, making it ideal for use with compatible fiber-optic amplifiers in temperatures ranging from -60°C to +210°C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Through-beam system with sender and receiver
- Fiber-optic head design: Threaded sleeve
- Application: Heat-resistant (≥100°C)
- Compatible fiber-optic amplifiers: WLL80, WLL180, GLL170(T)
- Sensing range: Depending on fiber optic amplifier used
- Minimal object diameter: 0.4 mm
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: Yes
- Compatibility with infrared light: Yes
- Adapter end sleeves required: No
- Optical fiber head material: Stainless steel
- Light emission: Axial
- Thread diameter (housing): M4
- Optical fiber taper diameter: ≥ 2.6 mm
- Optical fiber taper length after 2 mm: ≥ 3 mm
- Fiber length: 4000 mm
- Bending radius: 25 mm
- Dynamic flexibility (robotics): No
- Outside diameter, optical fiber cable connection: 2.2 mm
- Fiber arrangement: Multi-fiber
- Core structure: Ø 1.5 mm multi-fiber
- Sheath material: Stainless steel
- Fibers material: Glass
- Ambient operating temperature: –60 °C to +210 °C
- Dimensions (H x L x W): 10mm x 4000mm x 10mm
- Weight: 0.1 kg
Key Features
- Through-beam system consisting of a sender and a receiver
- Threaded sleeve fiber-optic head design
- Heat-resistant up to ≥100°C
- Compatible with infrared light
- Angle of dispersion 60°
- No integrated lens
- Includes mounting hardware: 4 x M4 hexagon nuts, 2 x washers
- Stainless steel optical fiber head and sheath
- Multi-fiber glass core structure with 1.5 mm diameter
- Fiber length 4000 mm with 25 mm bending radius
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems and electrical safety standards.
Applications
- Industrial sensing applications requiring heat-resistant fiber-optic cables
- Use with compatible fiber-optic amplifiers WLL80, WLL180, GLL170(T)
- Environments with ambient temperatures from -60°C to +210°C
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction extends product life reducing waste
- Heat resistance reduces need for frequent replacements in high-temperature environments
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK LL3-TW014000 fiber-optic cable is available for immediate purchase, ideal for industrial sensing applications requiring heat resistance and precise detection.
