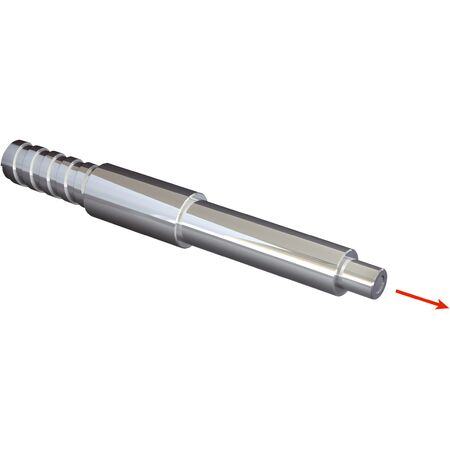

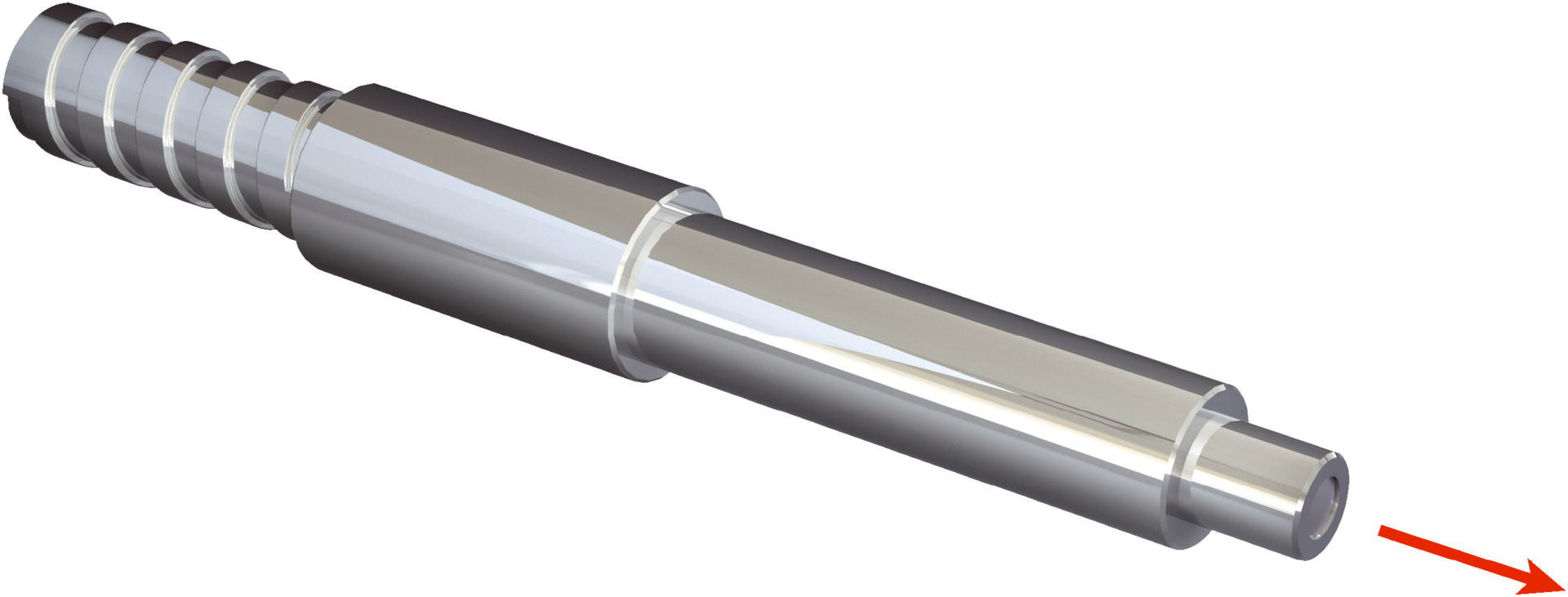

Fiber Optic Cable | Through-Beam System | Heat-Resistant up to 100°C | Stainless Steel Sheath | by SICK
The Fiber Optic Cable LL3-TW014000S05 features a through-beam system with a threaded sleeve design, making it ideal for industrial sensing applications. With heat resistance up to 100°C and compatibility with infrared light, this cable ensures reliable performance in extreme environments. Its durable stainless steel sheath and multi-fiber construction provide longevity and minimal object diameter detection of 0.4 mm, making it perfect for precise sensing tasks.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Through-beam system
- Fiber-optic head design: Threaded sleeve
- Application: Heat-resistant (≥100°C)
- Compatible fiber-optic amplifiers: WLL80, WLL180, GLL170(T)
- Sensing range max.: Depending on fiber optic amplifier used
- Minimal object diameter: 0.4 mm
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: Yes
- Compatibility with infrared light: Yes
- Adapter end sleeves required: No
- Optical fiber head material: Stainless steel
- Light emission: Axial
- Thread diameter (housing): M4
- Optical fiber taper diameter: ≥ 2.6 mm
- Optical fiber taper length after 2 mm: ≥ 3 mm
- Fiber length: 4000 mm
- Bending radius: 25 mm
- Dynamic flexibility (robotics): No
- Outside diameter, optical fiber cable connection: 2.2 mm
- Fiber arrangement: Multi-fiber
- Core structure: Ø 1.5 mm multi-fiber
- Sheath material: Stainless steel
- Fibers material: Glass
- Weight: 13 g
- Ambient operating temperature: –60 °C to +210 °C
- Dimensions (H x L x W): 10mm x 4000mm x 10mm
- Weight: 0.1 kg
Key Features
- Through-beam system with threaded sleeve fiber-optic head
- Heat-resistant up to ≥100°C
- Compatible with infrared light
- Multi-fiber optical fiber with stainless steel sheath and glass fibers
- Axial light emission with 60° angle of dispersion
- Includes mounting hardware: 4 x M4 hexagon nuts, 2 x washers
- Fiber length of 4000 mm with 25 mm bending radius
- Minimal object diameter detection of 0.4 mm
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems to ensure proper setup and safety.
Applications
- Industrial sensing applications requiring heat-resistant fiber-optic cables
- Use with compatible fiber-optic amplifiers WLL80, WLL180, GLL170(T)
- Environments with ambient temperatures from -60°C to +210°C
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel and glass fiber construction reduces replacement frequency
- Heat resistance minimizes failure and waste in high-temperature environments
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK LL3-TW014000S05 fiber-optic cable is available for immediate purchase, ideal for industrial sensing applications requiring heat-resistant fiber optic solutions.
