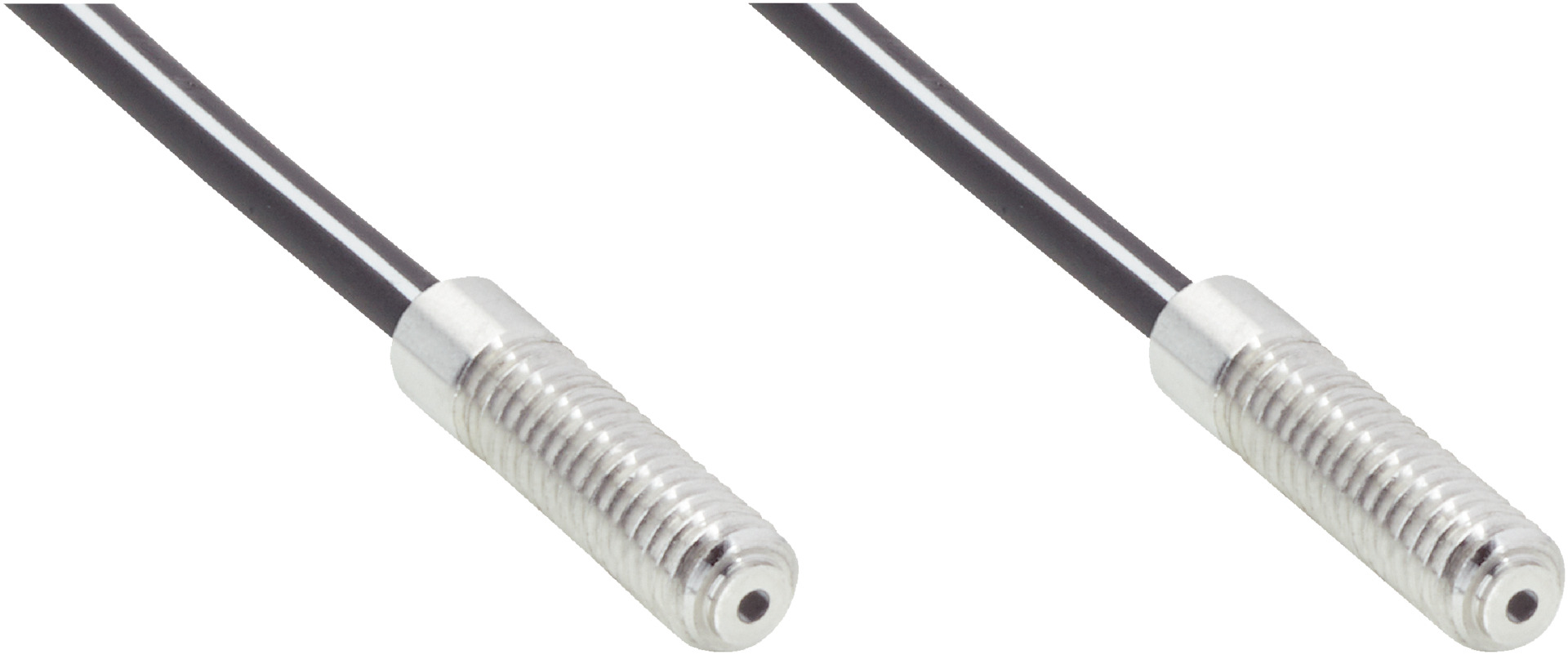

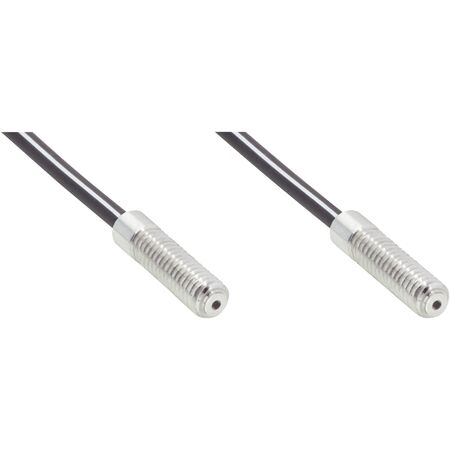

Fiber Optic Cable LLSE-A1400111050C4 | Through-Beam System | 60° Dispersion Angle | Stainless Steel Head | by SICK
The LLSE-A1400111050C4 fiber optic cable is designed for standard sensing applications, featuring a through-beam system with a sender and receiver. With a 60° angle of dispersion and a durable stainless steel head, this cable is perfect for industrial automation and compatible with various fiber-optic amplifiers. Its robust design ensures reliability in temperatures ranging from -40 °C to +60 °C, making it ideal for demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Through-beam system with sender and receiver
- Fiber-optic head design: Threaded sleeve
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: Yes
- Optical fiber cable can be shortened: Yes
- Optical fiber head material: Stainless steel
- Light emission: Axial
- Thread diameter (housing): M4
- Fiber length: 5000 mm
- Bending radius: 15 mm
- Dynamic flexibility (robotics): No
- Outside diameter, optical fiber cable connection: 2.2 mm
- Fiber arrangement: Single fiber
- Core structure: Ø 1.0 mm Single fiber
- Sheath material: Polyethylene (PE)
- Fibers: PMMA
- Ambient operating temperature: -40 °C to +60 °C
- Dimensions (H x L x W): 10mm x 5000mm x 10mm
- Weight: 0.1 kg
Key Features
- Through-beam system consisting of a sender and a receiver
- Threaded sleeve fiber-optic head design
- Angle of dispersion 60°
- No integrated lens
- Compatibility with tip adapters
- Optical fiber cable can be shortened
- Stainless steel optical fiber head with axial light emission
- Fiber length 5000 mm with 15 mm bending radius
- Single fiber arrangement with PMMA fibers and polyethylene sheath
- Operating temperature range from -40 °C to +60 °C
- RoHS compliant
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems to ensure proper setup and safety.
Applications
- Standard sensing applications requiring through-beam fiber-optic cables
- Compatible with fiber-optic amplifiers WLL80, WLL180, GLL170(T), WLL24 Ex
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS compliant, ensuring reduced hazardous substances
- Durable materials extend product life and reduce waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for details.
Available Now
The SICK LLSE-A1400111050C4 fiber-optic cable is available for immediate purchase, ideal for industrial sensing and automation applications.
