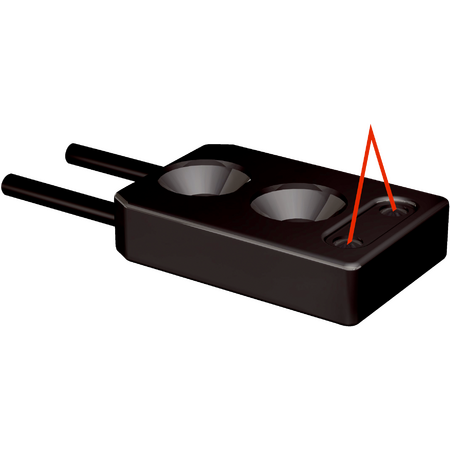

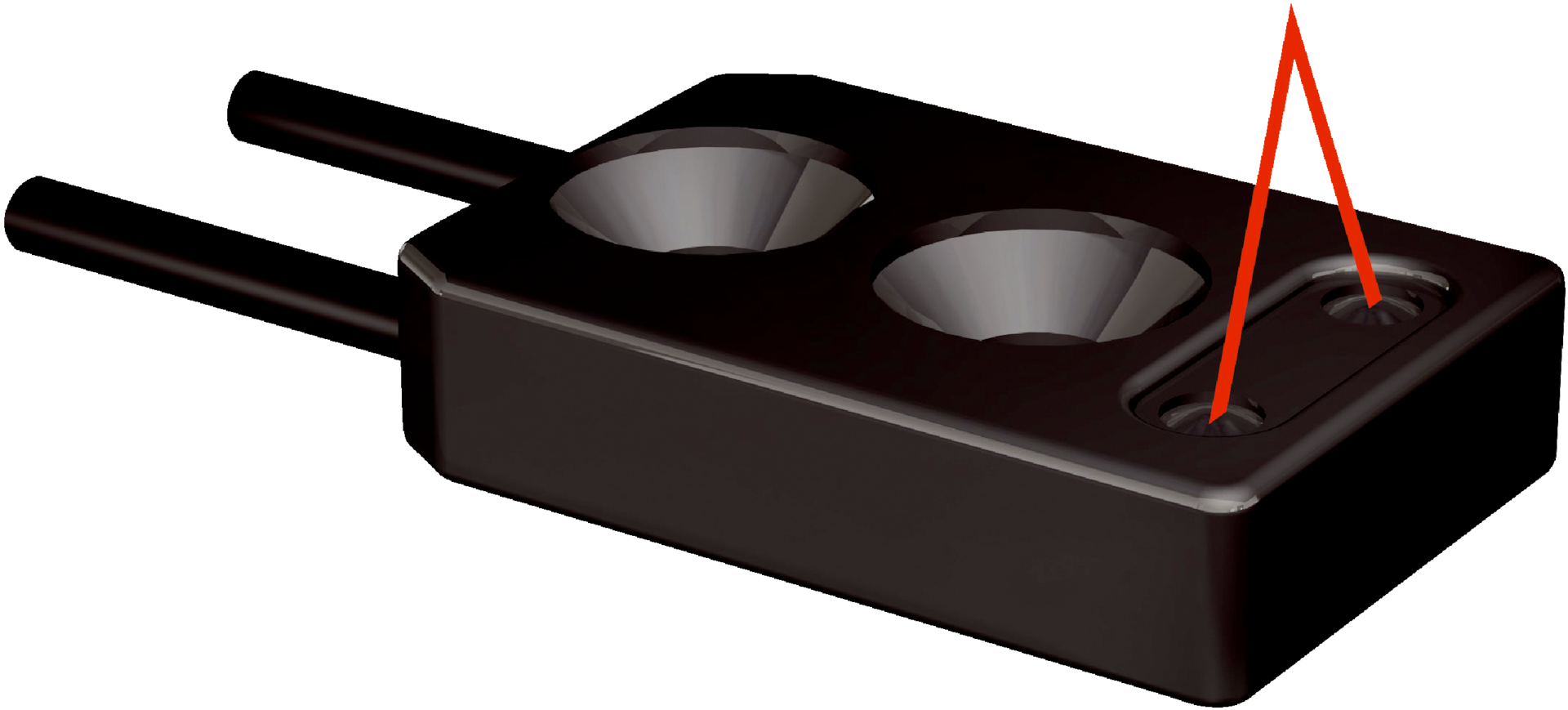

Fiber Optic Light Guide LL3-DC38 | 90° Deflection Head | 67mm Sensing Range | Integrated Lens | by SICK
The Fiber Optic Light Guide LL3-DC38 features a flat type, 90° deflection head and a maximum sensing range of 67 mm, making it ideal for precise proximity detection in electronics and semiconductor applications. With a minimal object diameter detection of just 0.02 mm and an integrated lens offering a 36° angle of dispersion, this light guide enhances manufacturing efficiency while ensuring durability and reliability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Fiber Optic Light Guide, Proximity Fiber Optic Cable, SICK LL3 DC38 Light Guide
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Proximity system
- Fiber-optic head design: Flat type, 90° deflection
- Sensing range max.: 67 mm (with WLL80 at 8 ms)
- Minimal object diameter: 0.02 mm
- Angle of dispersion: 36°
- Integrated lens: Yes
- Compatibility tip adapters: No
- Compatibility with infrared light: No
- Optical fiber cable can be shortened: Yes
- Adapter end sleeves required: Yes
- Fiber length: 2000 mm
- Bending radius: 10 mm
- Dynamic flexibility (robotics): No
- Outside diameter, optical fiber cable connection: 1 mm
- Fiber arrangement: Single fiber
- Core structure: 2 x Ø 0.5 mm Single fiber
- Material optical fiber head: Acrylnitril-Butadien-Styrol (ABS)
- Sheath material: Polyethylene (PE)
- Fibers material: Polymethylmethacrylate (PMMA)
- Ambient operating temperature: -40 °C to +50 °C
- Dimensions (H x L x W): 10mm x 2000mm x 10mm
- Weight: 0.1 kg
Key Features
- Fiber-optic cable with flat type, 90° deflection head
- Compatible with fiber-optic amplifiers GLL70, WLL80, WLL180, GLL170(T), WLL24 Ex, KTL180
- Maximum sensing range of 67 mm with WLL80 at 8 ms
- Minimal object diameter detection of 0.02 mm
- Integrated lens with 36° angle of dispersion
- Radial light emission
- Optical fiber cable can be shortened
- Includes adapter sleeves and FC fiber cutter
Professional Installation Requirements
- Installation should be performed by trained personnel familiar with fiber-optic sensor systems to ensure proper handling and connection.
Applications
- LCD and clear material detection
- Semiconductor sensing
- Limited sensing range proximity detection
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enables precise sensing reducing waste and improving manufacturing efficiency
- Durable materials extend product life reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.
Available Now
The SICK LL3-DC38 Fiber-Optic Light Guide is available for immediate purchase, ideal for industrial proximity sensing applications in electronics and semiconductor manufacturing.
