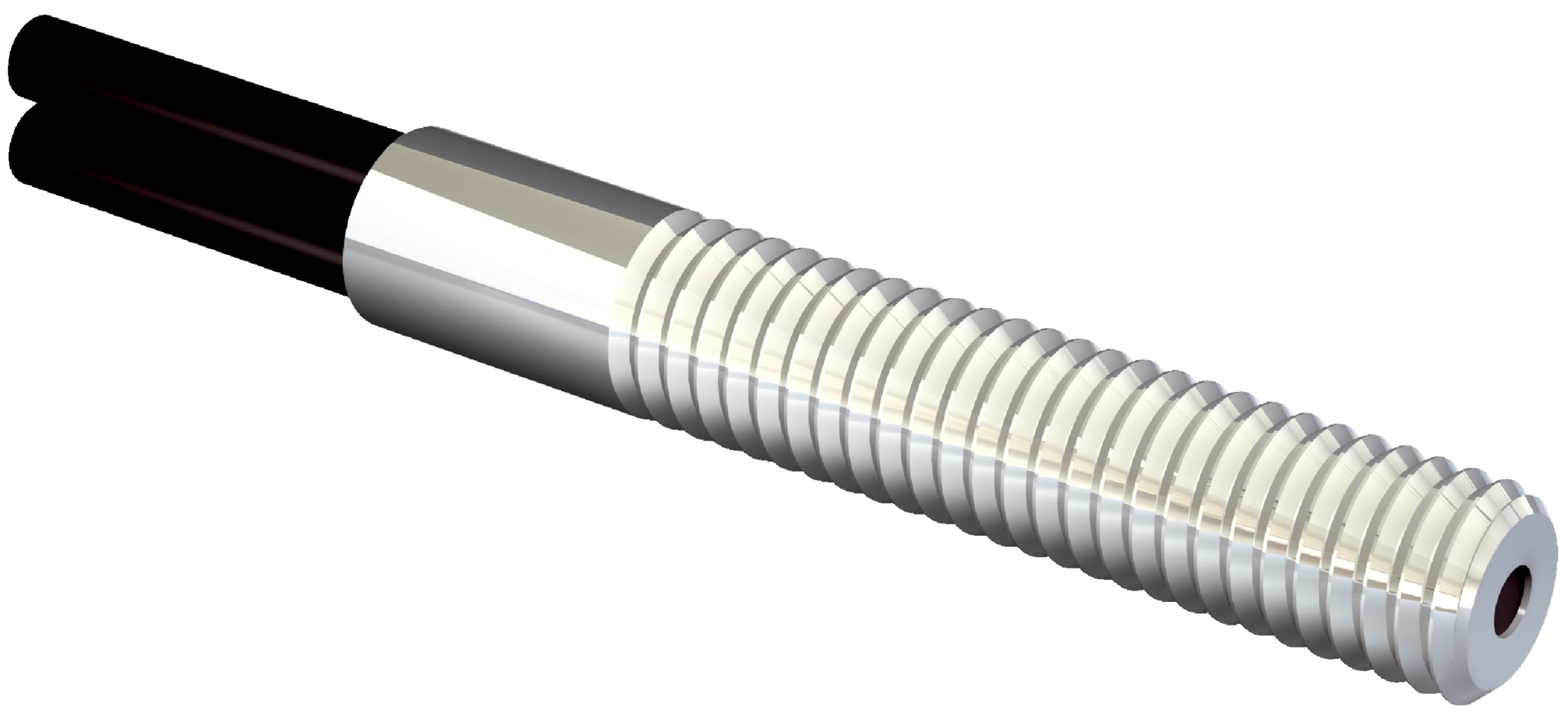

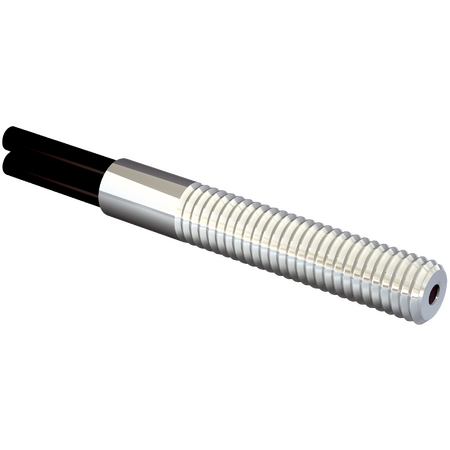

Fiber Optic Light Guide LL3-DT01 | Threaded Sleeve Design | Proximity Sensing | 710 mm Range | by SICK
The Fiber Optic Light Guide LL3-DT01 features a threaded sleeve design and operates on a proximity sensing principle, making it ideal for various industrial automation applications. With a sensing range of up to 710 mm and the ability to detect minimal object diameters of 0.015 mm, this light guide is perfect for precise measurements and reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Fiber optic cable light guide, Proximity fiber optic sensor cable, SICK fiber optic head LL3-DT01
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Proximity system
- Fiber-optic head design: Threaded sleeve
- Compatible fiber-optic amplifiers: GLL70, WLL80, WLL180, GLL170(T)
- Sensing range max.: 710 mm (WLL80 at 8 ms)
- Minimal object diameter: 0.015 mm
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: Yes
- Optical fiber compatibility with infrared light: No
- Optical fiber cable can be shortened: Yes
- Adapter end sleeves required: Yes
- Optical fiber head material: Stainless steel
- Light emission: Axial
- Thread diameter (housing): M3
- Fiber length: 2000 mm
- Bending radius: 15 mm
- Dynamic flexibility (robotics): No
- Outside diameter, optical fiber cable connection: 1.3 mm
- Fiber arrangement: Coaxial
- Core structure: S: Ø 0.5 mm, R: 9 x Ø 0.25 mm
- Sheath material: Polyethylene (PE)
- Fibers material: Polymethylmethacrylate (PMMA)
- Ambient operating temperature: -40 °C to +70 °C
- Dimensions (H x L x W): 10mm x 2000mm x 10mm
- Weight: 0.1 kg
Key Features
- Fiber-optic cable with threaded sleeve design
- Proximity system functional principle
- Sensing range up to 710 mm with WLL80 at 8 ms
- Minimal object diameter detection of 0.015 mm
- Angle of dispersion 60°
- No integrated lens, compatible with tip adapters
- Optical fiber cable can be shortened
- Includes mounting accessories and adapter sleeves
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper connection with compatible fiber-optic amplifiers and secure mounting.
Applications
- Standard proximity sensing applications
- Compatible with fiber-optic amplifiers GLL70, WLL80, WLL180, GLL170(T)
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce waste and replacement frequency
- Energy-efficient sensing reduces power consumption in automation systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for details.
Available Now
The SICK LL3-DT01 Fiber-Optic Light Guide is available for immediate purchase, ideal for industrial automation and proximity sensing applications.
