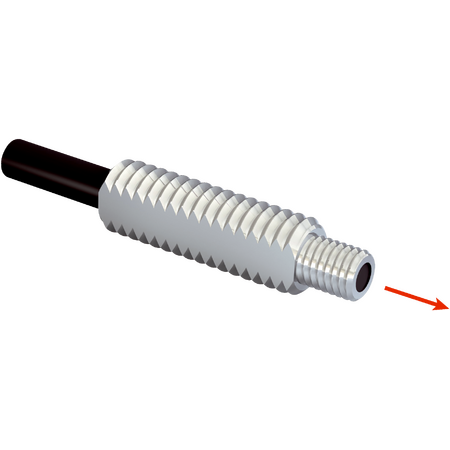

Fiber-Optic Light Guide LL3-TB01 | Through-Beam System | Threaded Sleeve Design | Axial Light Emission | by SICK
The Fiber-Optic Light Guide LL3-TB01 is designed for standard fiber-optic sensing applications, featuring a through-beam system with sender and receiver for precise detection. With a threaded sleeve head design and axial light emission, this durable light guide is perfect for industrial use, ensuring reliable performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Fiber-optic light guide, Fiber optic cable set, LL3-TB01 light guide
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Through-beam system with sender and receiver
- Fiber-optic head design: Threaded sleeve
- Sensing range max: 3600 mm (with WLL80 at 8 ms)
- Minimal object diameter: 0.5 mm
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: Yes
- Compatibility with infrared light: No
- Optical fiber cable can be shortened: Yes
- Optical fiber head material: Stainless steel
- Light emission: Axial
- Thread diameter (housing): M4
- Optical fiber taper diameter: ≥ 2.6 mm
- Optical fiber taper length after 2 mm: ≥ 3 mm
- Fiber length: 2000 mm
- Bending radius: 30 mm
- Outside diameter, optical fiber cable connection: 2.2 mm
- Fiber arrangement: Singlefiber
- Core structure: Ø 1.5 mm Singlefiber
- Sheath material: Polyethylene (PE)
- Fibers material: Polymethylmethacrylate (PMMA)
- Ambient operating temperature: –40 °C to +70 °C
- Dimensions (H x L x W): 10mm x 50mm x 10mm
- Weight: 0.1 kg
Key Features
- Through-beam system with sender and receiver
- Threaded sleeve fiber-optic head design
- Axial light emission
- Angle of dispersion 60°
- Optical fiber cable can be shortened
- Includes mounting hardware and FC fiber cutter
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper mounting and connection with compatible fiber-optic amplifiers.
Applications
- Standard fiber-optic sensing applications
- Compatible with fiber-optic amplifiers GLL70, WLL80, WLL180, GLL170(T), WLL24 Ex
Standards & Compliance
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable stainless steel and polyethylene materials ensure long product life reducing waste
- Energy efficient fiber-optic sensing reduces electrical consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for details.
Available Now
The SICK LL3-TB01 Light Guide (2 pcs/set) is available for immediate purchase, ideal for industrial fiber-optic sensing applications.
