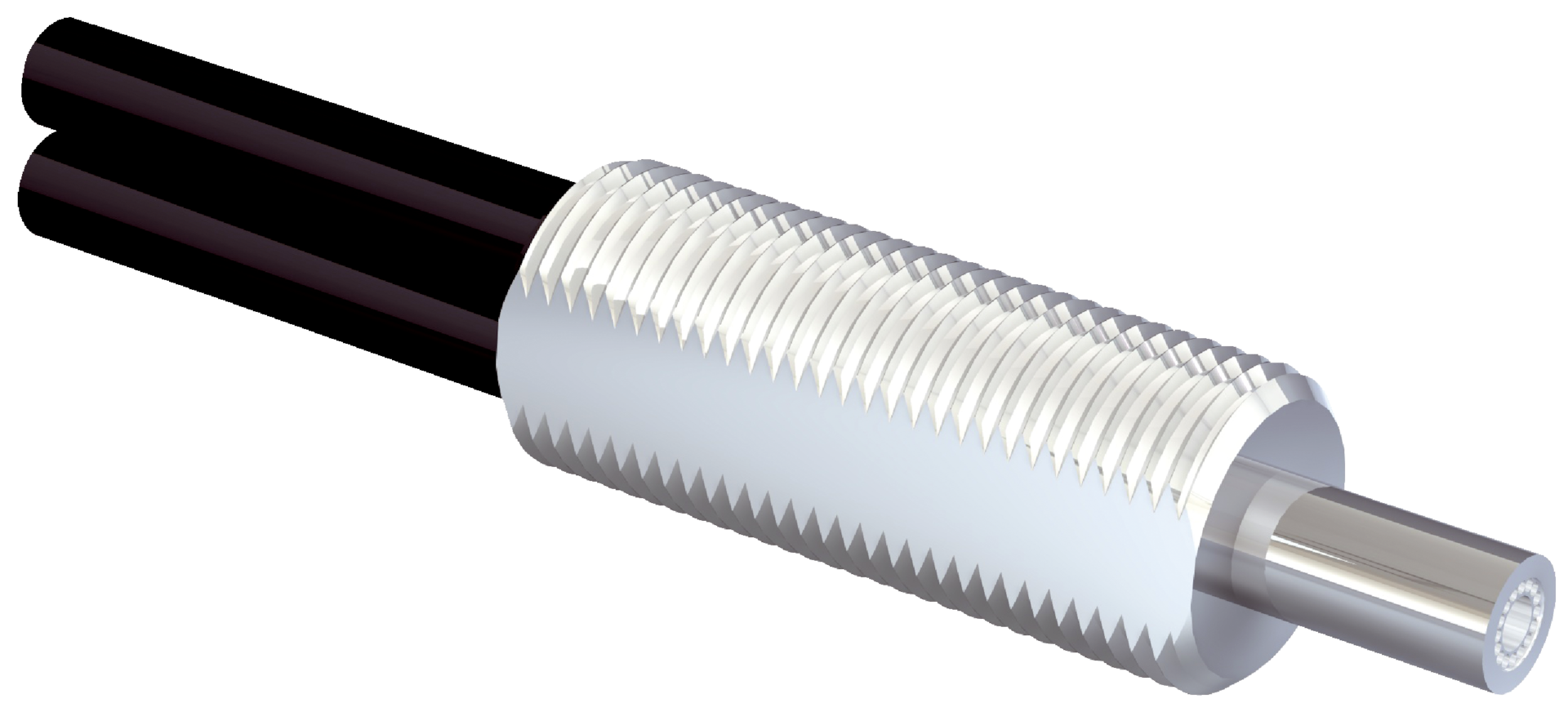

Fiber Optic Light Guide LL3-DB01 | Threaded Sleeve Design | Axial Light Emission | High Sensing Range | by SICK
The Fiber Optic Light Guide LL3-DB01 features a durable threaded sleeve design and axial light emission, making it ideal for standard proximity sensing applications. With a high sensing range of up to 1,250 mm and an operating temperature from -40 °C to +70 °C, this light guide is built for reliability in industrial environments. Its stainless steel head ensures longevity, while the ability to shorten the optical fiber cable adds versatility for various setups.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Fiber optic cable, Fiber optic light guide, Proximity fiber optic sensor cable, LL3 DB01 light guide
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Proximity system
- Fiber-optic head design: Threaded sleeve
- Compatible fiber-optic amplifiers: GLL70, WLL80, WLL180, GLL170(T), WLL24 Ex, KTL180
- Maximum sensing range: 1,250 mm (with WLL80 at 8 ms operating mode)
- Minimal object diameter: 0.015 mm
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: No
- Compatibility with infrared light: No
- Optical fiber cable can be shortened: Yes
- Adapter end sleeves required: No
- Optical fiber head material: Stainless steel
- Light emission: Axial
- Thread diameter (housing): M6
- Optical fiber taper diameter: ≥ 2.8 mm
- Optical fiber taper length after 2 mm: ≥ 5 mm
- Fiber length: 2,000 mm
- Bending radius: 25 mm
- Dynamic flexibility (robotics): No
- Outside diameter, optical fiber cable connection: 2.2 mm
- Fiber arrangement: Coaxial
- Core structure: S: Ø 1 mm, R: 16 x Ø 0.25 mm
- Sheath material: Polyethylene (PE)
- Fibers material: Polymethylmethacrylate (PMMA)
- Ambient operating temperature: -40 °C to +70 °C
- Dimensions (H x L x W): 6mm x 2000mm x 6mm
- Weight: 0.1 kg
Key Features
- Fiber-optic cable with threaded sleeve design
- Axial light emission
- Stainless steel optical fiber head
- 60° angle of dispersion
- Optical fiber cable can be shortened
- Includes mounting hardware and FC fiber cutter
- High sensing range up to 1,250 mm depending on amplifier and operating mode
- Operating temperature range from -40 °C to +70 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems to ensure proper connection and alignment with compatible amplifiers.
Applications
- Standard proximity sensing applications
- Compatible with fiber-optic amplifiers GLL70, WLL80, WLL180, GLL170(T), WLL24 Ex, KTL180
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel and polyethylene materials ensure long product life and reduce waste
- Energy-efficient fiber-optic sensing reduces electrical consumption compared to traditional sensors
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK LL3-DB01 Fiber-Optic Light Guide is available for immediate purchase, ideal for industrial proximity sensing applications requiring reliable fiber-optic solutions.
