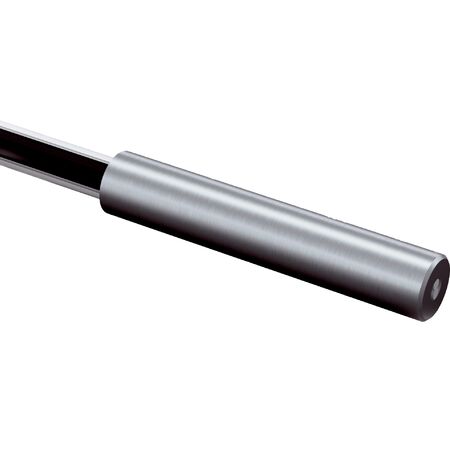

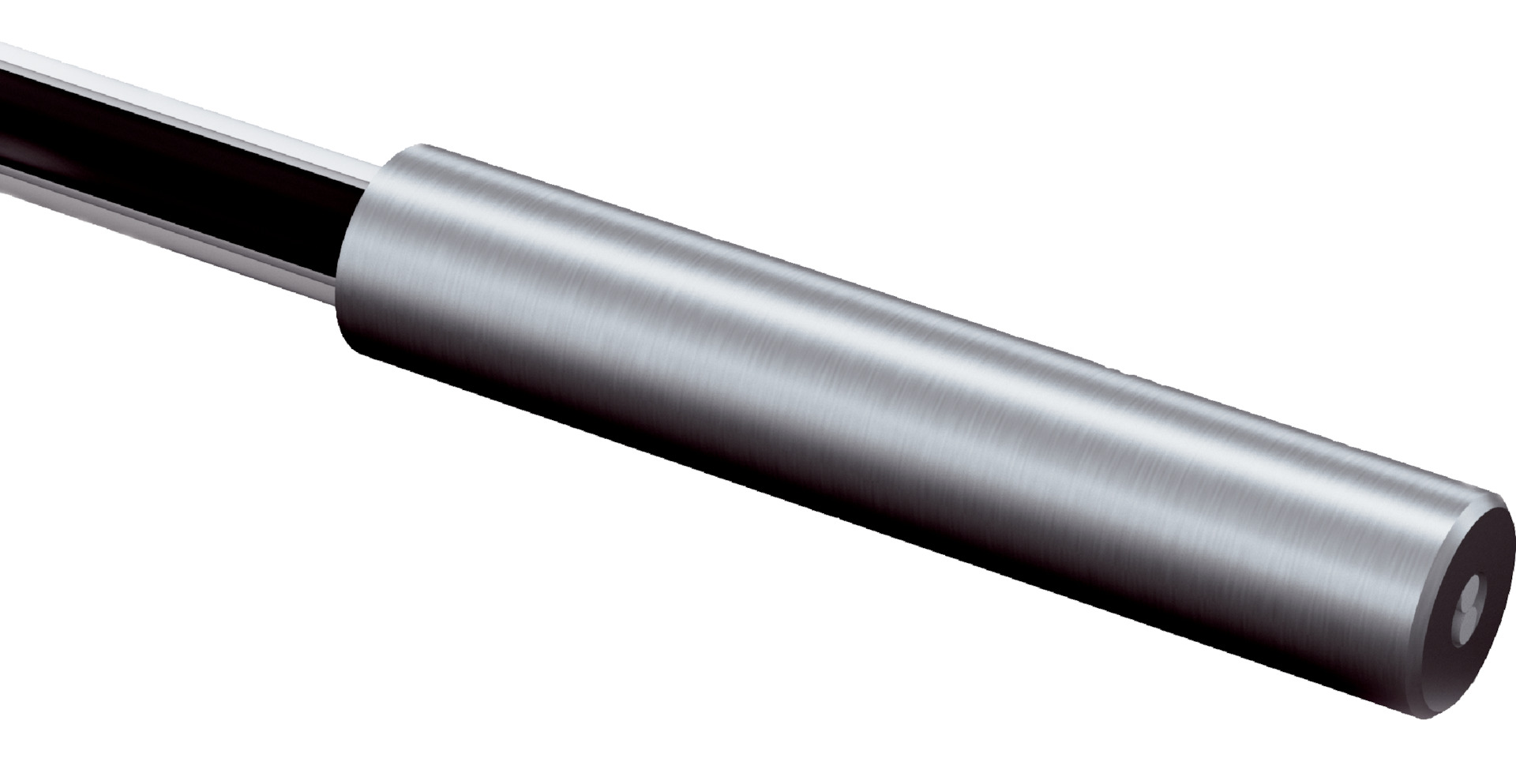

Fiber Optic Proximity Cable LL3-DB124000 | Stainless Steel Head | PE Hose for Easy Cleaning | 4000mm Length | by SICK
The Fiber Optic Proximity Cable LL3-DB124000 features a durable stainless steel head and a PE hose for easy cleaning, making it ideal for standard proximity sensing applications in industrial automation. With a smooth sleeve design and a 60° angle of dispersion, this cable ensures precise detection and compatibility with various fiber-optic amplifiers, enhancing efficiency in your operations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Proximity system
- Fiber-optic head design: Smooth sleeve
- Application: Standard
- Special features: PE hose and stainless steel head for easy cleaning
- Compatible fiber-optic amplifiers: WLL80, WLL180, GLL170(T)
- Sensing range max.: Depending on fiber optic amplifier used
- Minimal object diameter: 0.02 mm
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: No
- Compatibility with infrared light: No
- Optical fiber cable can be shortened: Yes
- Adapter end sleeves required: Yes
- Included with delivery: Adapter sleeve BF-WLL160-13 (1.3 mm), FC fiber cutter
- Optical fiber head material: Stainless steel
- Light emission: Axial
- Smooth sleeve diameter: 6 mm
- Fiber length: 4000 mm
- Bending radius: 15 mm
- Dynamic flexibility (robotics): No
- Outside diameter, optical fiber cable connection: 1.3 mm
- Fiber arrangement: Coaxial
- Core structure: S: Ø 0.5 mm, R: 9 x Ø 0.25 mm
- Sheath material: Polyethylene (PE)
- Fibers material: Polymethylmethacrylate (PMMA)
- Ambient operating temperature: -40 °C to +70 °C
- Dimensions (H x L x W): 6mm x 4000mm x 6mm
- Weight: 0.1 kg
Key Features
- Fiber-optic cable with stainless steel head and PE hose for easy cleaning
- Smooth sleeve fiber-optic head design with 6 mm diameter
- Axial light emission with 60° angle of dispersion
- Compatible with fiber-optic amplifiers WLL80, WLL180, GLL170(T)
- Optical fiber cable can be shortened with adapter end sleeves
- Includes adapter sleeve BF-WLL160-13 (1.3 mm) and FC fiber cutter
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems to ensure proper connection and calibration.
Applications
- Standard proximity sensing applications requiring fiber-optic cables
- Industrial automation and detection systems
- Environments requiring easy-to-clean fiber-optic heads
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel and PE materials extend product life reducing waste
- Fiber-optic technology enables precise sensing reducing energy consumption in automation
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's warranty policy for details.
Available Now
The SICK LL3-DB124000 fiber-optic cable is available for immediate purchase, ideal for industrial proximity sensing and automation applications.
