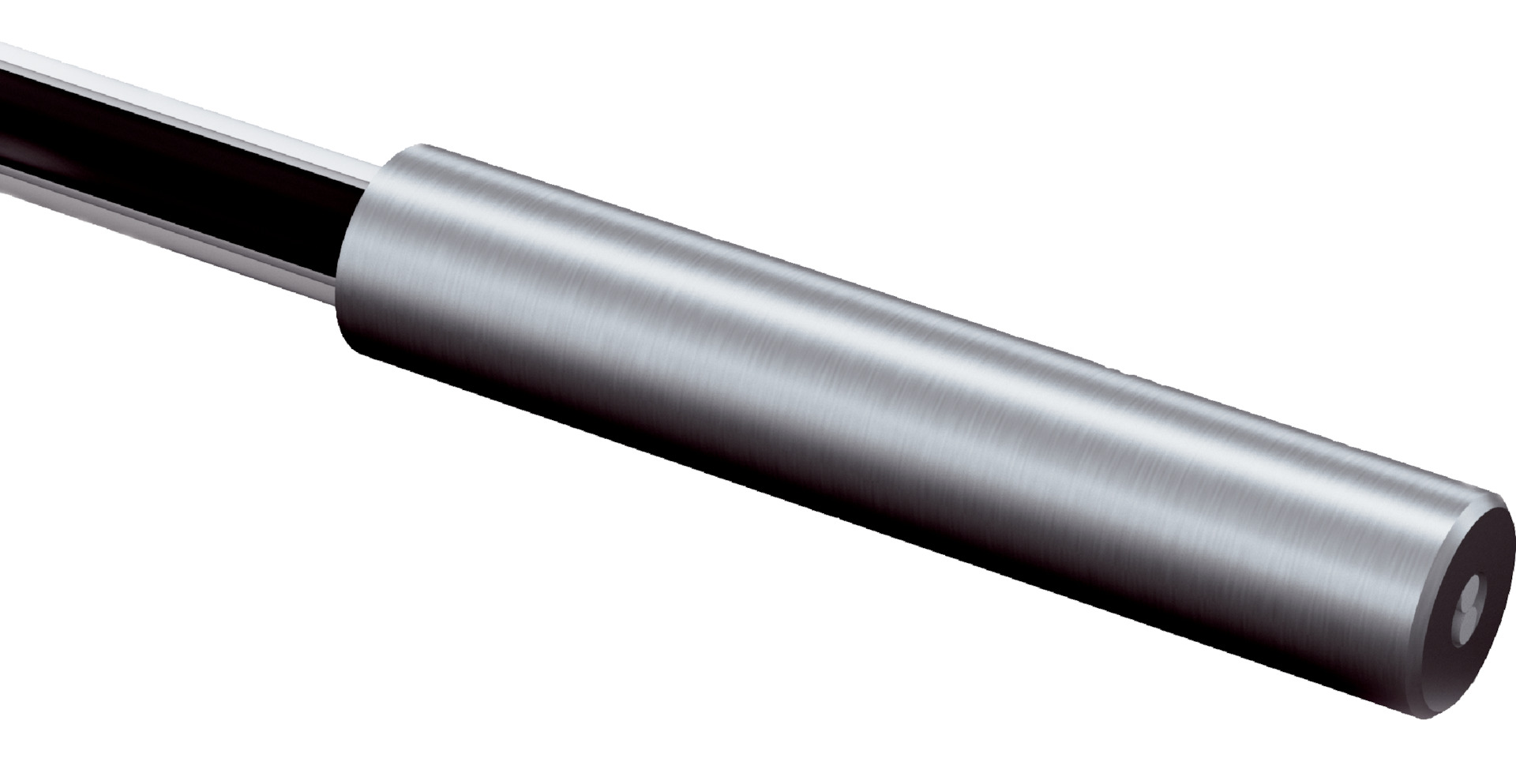

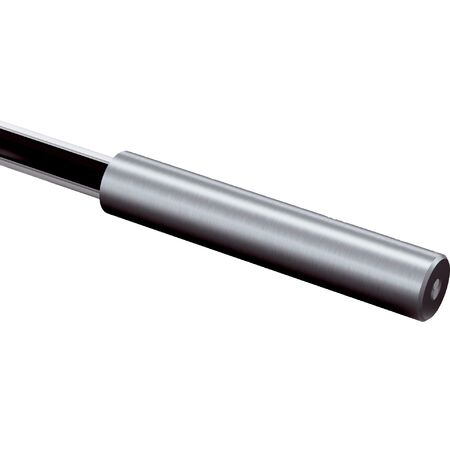

Fiber Optic Proximity Cable LL3-KD01500 | 6mm Diameter | 32mm Length | 500mm Fiber Length | by SICK
The Fiber Optic Proximity Cable LL3-KD01500 is designed for standard proximity sensing applications, featuring a smooth sleeve with a 6mm diameter and 32mm length. With a sensing range dependent on compatible fiber-optic amplifiers, this cable is perfect for industrial automation environments, ensuring reliable performance in temperatures from -40°C to +70°C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Proximity system
- Fiber-optic head design: Smooth sleeve, Ø 6 mm, length 32 mm
- Compatible fiber-optic amplifiers: WLL80, WLL180, GLL170(T)
- Sensing range: Depending on the fiber optic amplifier used
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: No
- Light emission: Axial
- Fiber length: 500 mm
- Bending radius: 25 mm
- Fiber arrangement: Single fiber
- Core structure: 2 x Ø 1.0 mm
- Material: Stainless steel optical fiber head, polyethylene sheath, polymethylmethacrylate fibers
- Operating temperature: –40 °C to +70 °C
- Dimensions (H x L x W): 6mm x 32mm x 6mm
- Weight: 0.1 kg
Key Features
- Fiber-optic cable with smooth sleeve, 6 mm diameter, 32 mm length
- Proximity system functional principle
- Can be connected to LL3-KX01
- Angle of dispersion 60°
- No integrated lens or compatibility tip adapters
- Axial light emission
- Single fiber arrangement with 2 x Ø 1.0 mm core structure
- Fiber length 500 mm with 25 mm bending radius
- Material: Stainless steel optical fiber head, polyethylene sheath, polymethylmethacrylate fibers
- Operating temperature range from –40 °C to +70 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems to ensure proper connection and operation.
Applications
- Standard proximity sensing applications
- Compatible with fiber-optic amplifiers WLL80, WLL180, GLL170(T)
- Industrial automation and sensing environments
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce replacement frequency and waste
- Energy-efficient sensing technology minimizes power consumption
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK LL3-KD01500 fiber-optic cable is available for immediate purchase, ideal for industrial proximity sensing applications.
