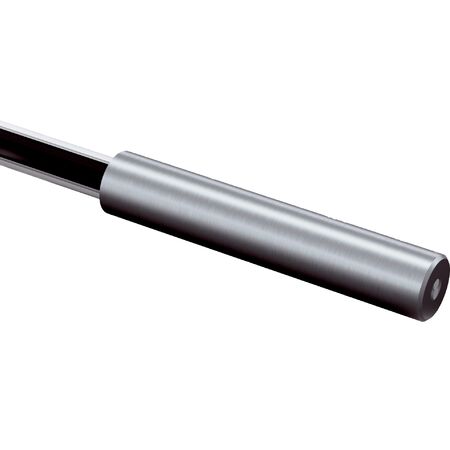

Fiber Optic Proximity Cable LL3-KD01750 | 6mm Diameter | 750mm Length | Axial Light Emission | by SICK
The Fiber Optic Proximity Cable LL3-KD01750 is designed for standard proximity sensing applications, featuring a smooth sleeve fiber-optic head with a 6mm diameter and 750mm length. Built for industrial automation, it connects seamlessly with compatible fiber-optic amplifiers like WLL80 and WLL180, ensuring precise sensing and durability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Proximity system

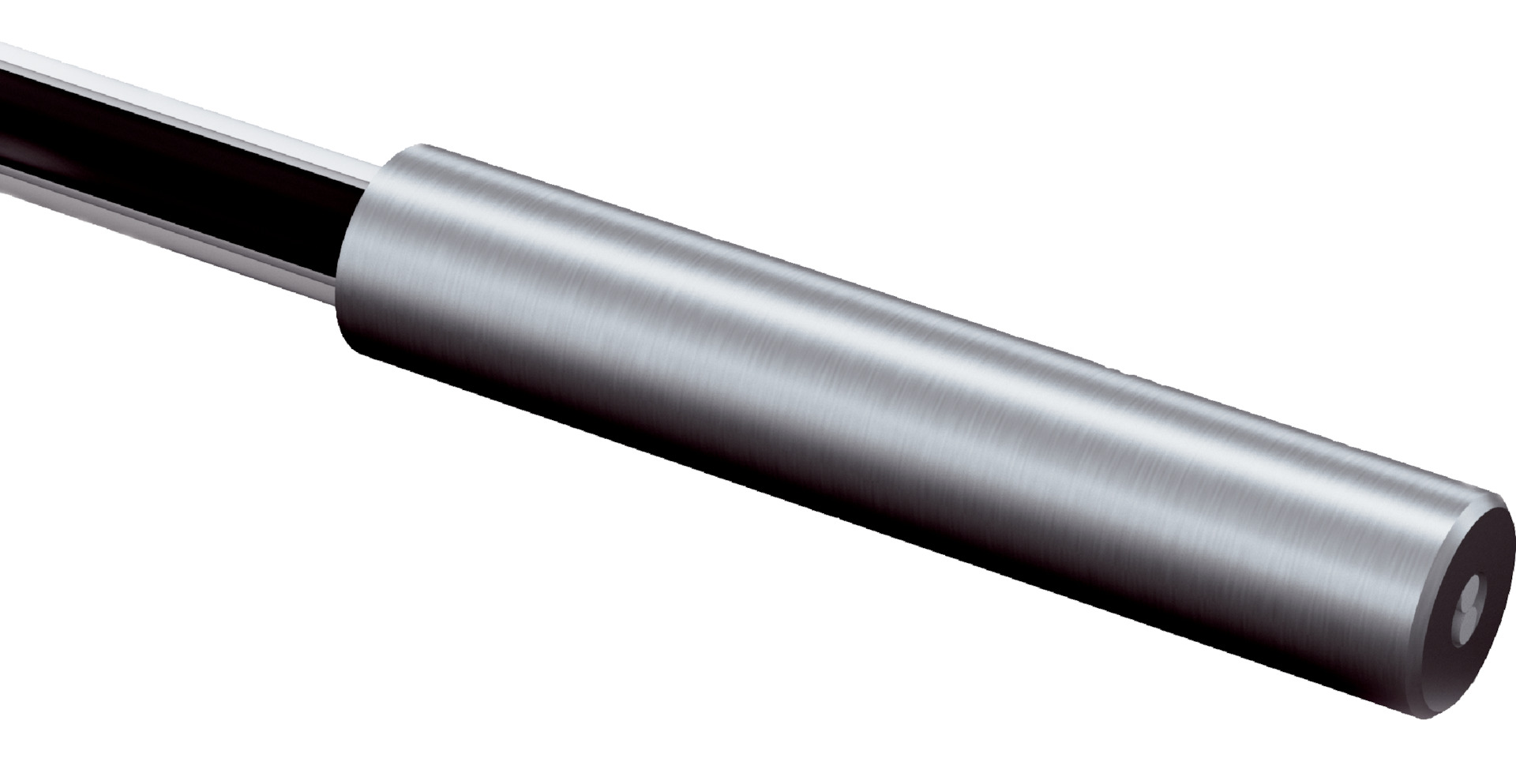

- Fiber-optic head design: Smooth sleeve, Ø 6 mm, length 32 mm
- Application: Standard
- Compatible fiber-optic amplifiers: WLL80, WLL180, GLL170(T)
- Sensing range: Depending on fiber optic amplifier used
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: No
- Light emission: Axial
- Fiber length: 750 mm
- Bending radius: 25 mm
- Fiber arrangement: Single fiber
- Core structure: 2 x Ø 1.0 mm
- Material: Stainless steel optical fiber head, polyethylene sheath, polymethylmethacrylate fibers
- Ambient operating temperature: –40 °C to +70 °C
- Dimensions (H x L x W): 6mm x 750mm x 6mm
- Weight: 0.1 kg
Key Features
- Fiber-optic cable device type with smooth sleeve fiber-optic head
- Fiber-optic head diameter 6 mm and length 32 mm
- Proximity system functional principle
- Can be connected to LL3-KX01
- Compatible with fiber-optic amplifiers WLL80, WLL180, GLL170(T)
- Angle of dispersion 60°
- No integrated lens or compatibility tip adapters
- Axial light emission
- Single fiber arrangement with core structure 2 x Ø 1.0 mm
- Fiber length 750 mm with bending radius 25 mm
- Materials include stainless steel optical fiber head, polyethylene sheath, and polymethylmethacrylate fibers
- Operating temperature range from –40 °C to +70 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems to ensure proper connection and operation.
Applications
- Standard proximity sensing applications requiring fiber-optic cables
- Integration with compatible fiber-optic amplifiers such as WLL80, WLL180, GLL170(T)
- Industrial automation and sensing environments
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables precise sensing reducing waste and energy consumption in industrial processes
- Durable materials extend product life reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK LL3-KD01750 fiber-optic cable is available for immediate purchase, ideal for industrial proximity sensing applications.
