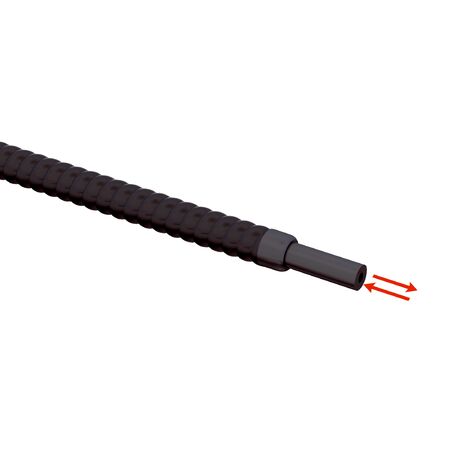

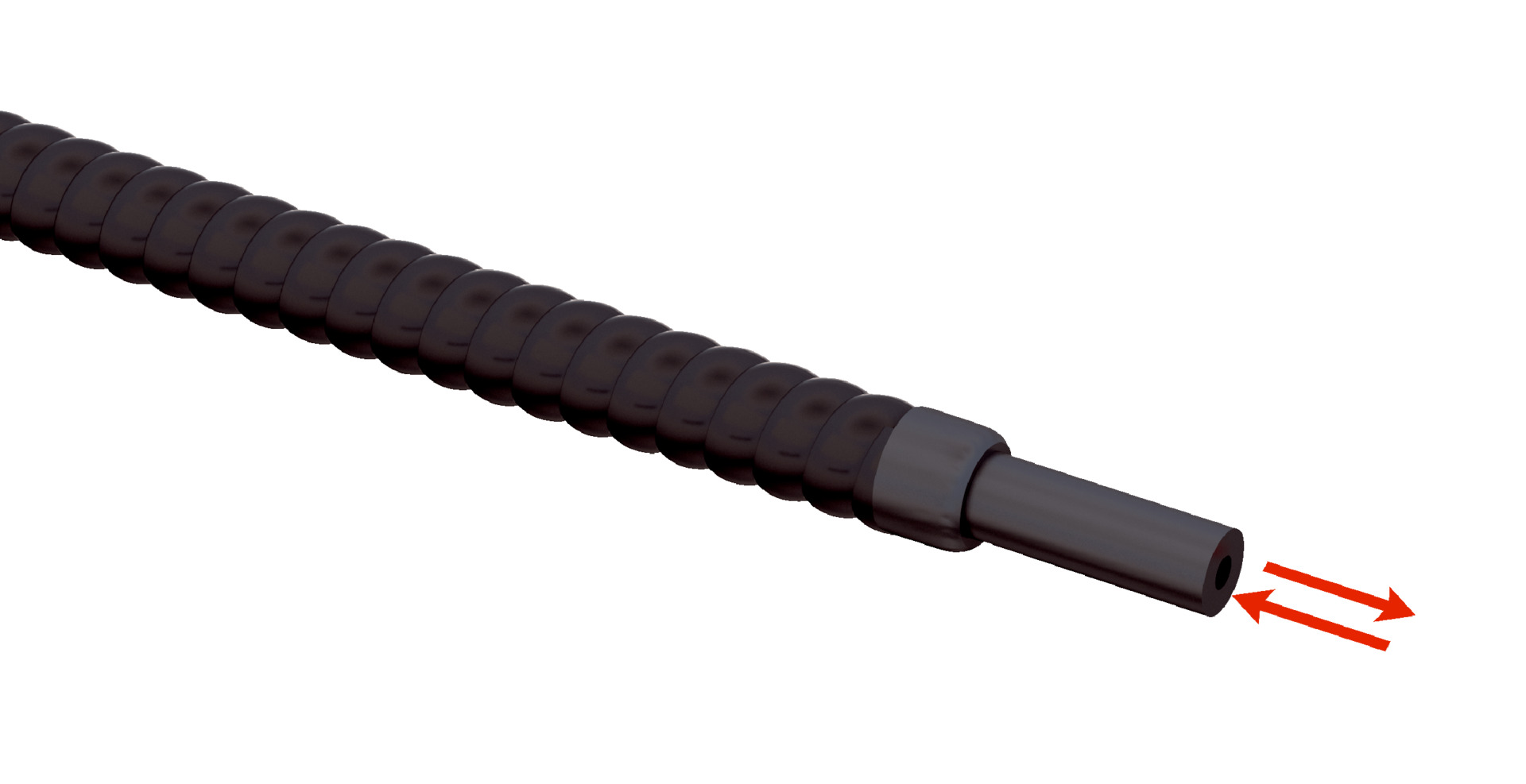

Fiber Optic Proximity Cable LL3-LM31300 | Smooth Sleeve Design | Axial Light Emission | 60° Angle of Dispersion | by SICK
The Fiber Optic Proximity Cable LL3-LM31300 features a smooth sleeve and long end sleeve design, perfect for standard proximity sensing applications. With an axial light emission and a 60° angle of dispersion, this cable is compatible with infrared light and ideal for industrial automation and object detection. Built with a durable PVC sheath and multi-fiber glass core, it ensures reliable performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Proximity system
- Fiber-optic head design: Smooth sleeve, Long end sleeve
- Compatible fiber-optic amplifiers: WLL80, WLL180, GLL170(T)
- Sensing range max.: Dependent on fiber optic amplifier used
- Minimal object diameter: 0.5 mm
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: No
- Compatibility with infrared light: Yes
- Adapter end sleeves required: No
- Light emission: Axial
- Smooth sleeve diameter: 5.8 mm
- Optical fiber head array width: 10.9 mm
- Optical fiber taper diameter: ≥ 4 mm
- Optical fiber taper length after 2 mm: ≥ 11.4 mm
- Fiber length: 300 mm
- Bending radius: 20 mm
- Dynamic flexibility (robotics): No
- Outside diameter, optical fiber cable connection: 2.2 mm
- Fiber arrangement: Multi-fiber
- Core structure: Multi-fiber
- Material sheath: Polyvinylchloride (PVC)
- Fibers: Glass
- Ambient operating temperature: –10 °C to +60 °C
- Dimensions (H x L x W): 6mm x 300mm x 11mm
- Weight: 0.1 kg
Key Features
- Fiber-optic cable with smooth sleeve and long end sleeve design
- Axial light emission with 60° angle of dispersion
- Compatible with infrared light
- Multi-fiber core structure with glass fibers
- Chrome-plated metal coil optical fiber head
- Polyvinylchloride (PVC) sheath for durability
- Minimal object diameter detection of 0.5 mm
Professional Installation Requirements
- Installation by qualified personnel familiar with fiber-optic sensor systems is recommended to ensure proper connection and functionality.
Applications
- Standard proximity sensing applications
- Compatible with fiber-optic amplifiers WLL80, WLL180, GLL170(T)
- Industrial automation and object detection
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enables precise sensing to reduce waste and improve automation efficiency
- Durable materials reduce replacement frequency and waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK LL3-LM31300 fiber-optic cable is available for immediate purchase, ideal for industrial proximity sensing and automation applications.
