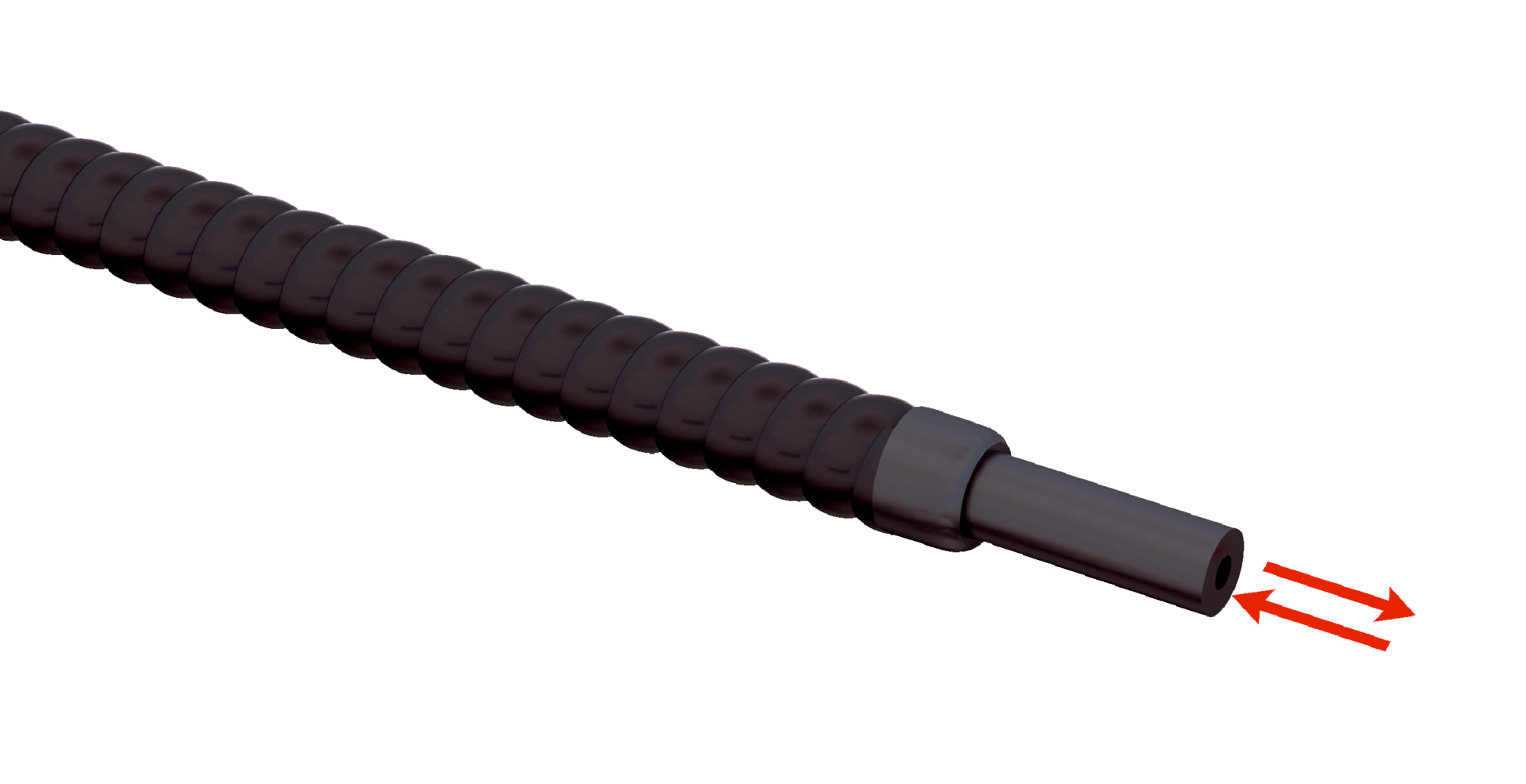

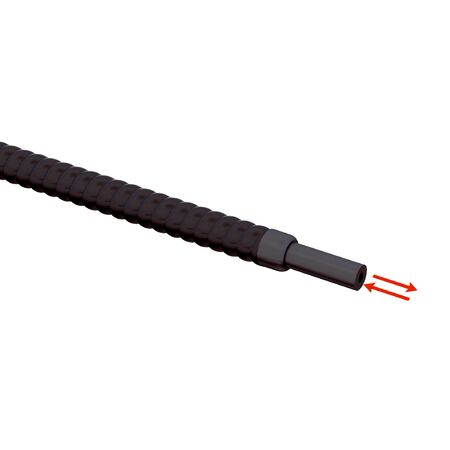

Fiber Optic Proximity Cable LL3-LM31750 | Smooth Sleeve Design | Infrared Compatible | 750mm Length | by SICK
The Fiber Optic Proximity Cable LL3-LM31750 is engineered for precision in proximity sensing applications. With a smooth sleeve design and compatibility with infrared light, this cable ensures reliable performance in industrial automation and object detection. Its multi-fiber core structure and 750mm length make it ideal for various setups, while the absence of adapter end sleeves simplifies installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Proximity system
- Fiber-optic head design: Smooth sleeve, Long end sleeve
- Compatible fiber-optic amplifiers: WLL80, WLL180, GLL170(T)
- Sensing range max.: Depending on the fiber optic amplifier used
- Minimal object diameter: 0.5 mm
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: No
- Compatibility with infrared light: Yes
- Adapter end sleeves required: No
- Light emission: Axial
- Smooth sleeve diameter: 5.8 mm
- Optical fiber head array width: 10.85 mm
- Optical fiber taper diameter: ≥ 4 mm
- Optical fiber taper length after 2 mm: ≥ 11.4 mm
- Fiber length: 750 mm
- Bending radius: 20 mm
- Dynamic flexibility (robotics): No
- Outside diameter, optical fiber cable connection: 2.2 mm
- Fiber arrangement: Multi-fiber
- Core structure: Multi-fiber
- Material sheath: Polyvinylchlorid (PVC)
- Fibers: Glass
- Ambient operating temperature: –10 °C to +60 °C
- Dimensions (H x L x W): 6mm x 750mm x 11mm
- Weight: 0.1 kg
Key Features
- Fiber-optic cable designed for proximity systems
- Smooth sleeve and long end sleeve fiber-optic head design
- Compatible with infrared light
- No adapter end sleeves required
- Multi-fiber core structure with glass fibers
- Chrome-plated metal coil optical fiber head
- Axial light emission with 60° angle of dispersion
- Bending radius of 20 mm
- Fiber length of 750 mm
Professional Installation Requirements
- Installation by trained personnel recommended to ensure proper connection with compatible fiber-optic amplifiers and optimal sensor performance.
Applications
- Standard proximity sensing applications
- Compatible with fiber-optic amplifiers WLL80, WLL180, GLL170(T)
- Industrial automation and object detection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables precise sensing to reduce waste and improve automation efficiency
- Durable materials reduce replacement frequency and waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK LL3-LM31750 fiber-optic cable is available for immediate purchase, ideal for industrial proximity sensing and automation applications.
