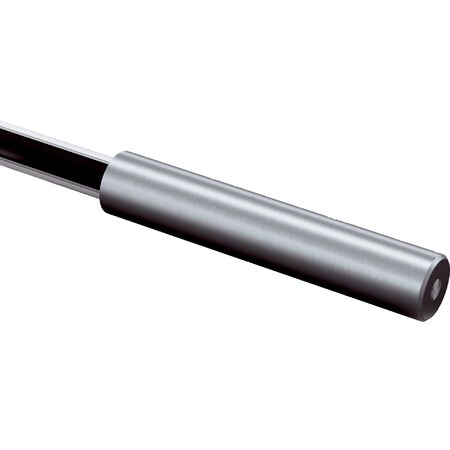

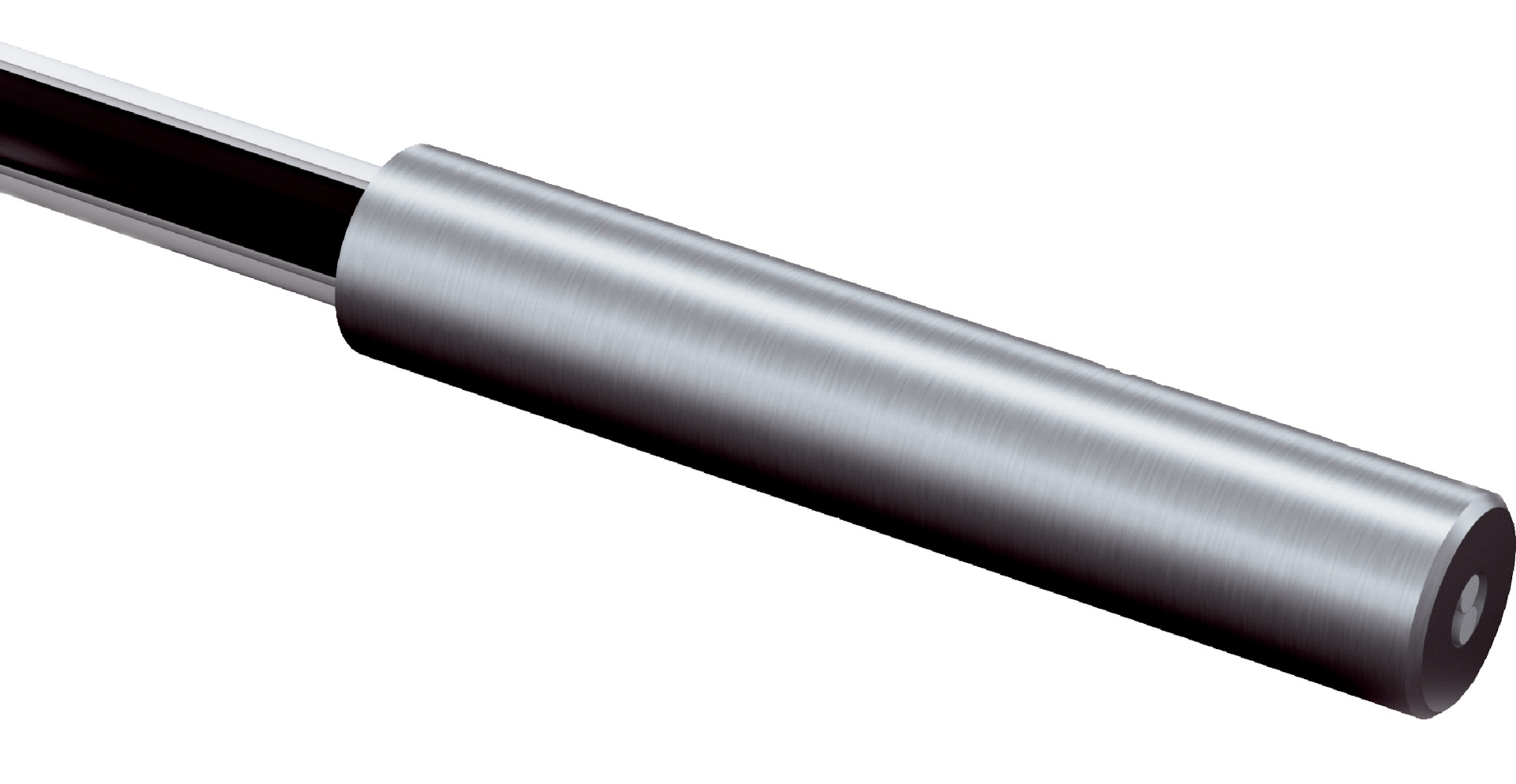

Fiber Optic Proximity Cable | Smooth Sleeve Design | PE Hose & Stainless Steel Head | by SICK
The Fiber Optic Proximity Cable is designed for standard proximity sensing applications, featuring a smooth sleeve design and a durable stainless steel head for easy cleaning. Ideal for industrial automation, this cable supports minimal object diameter detection of 0.02 mm and is compatible with various fiber-optic amplifiers, ensuring precise and reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Proximity system
- Fiber-optic head design: Smooth sleeve
- Application: Standard
- Special features: PE hose and stainless steel head for easy cleaning
- Compatible fiber-optic amplifiers: WLL80, WLL180, GLL170(T)
- Sensing range max.: Depending on fiber optic amplifier used
- Minimal object diameter: 0.02 mm
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: No
- Compatibility with infrared light: No
- Optical fiber cable can be shortened: Yes
- Adapter end sleeves required: Yes
- Included with delivery: Adapter sleeve BF-WLL160-13 (1.3 mm), FC fiber cutter (5304141)
- Optical fiber head material: Stainless steel
- Light emission: Axial
- Smooth sleeve diameter: 6 mm
- Fiber length: 4000 mm
- Bending radius: 25 mm
- Dynamic flexibility (robotics): No
- Outside diameter, optical fiber cable connection: 1.3 mm
- Fiber arrangement: Singlefiber
- Core structure: 2 x Ø 1.0 mm Singlefiber
- Sheath material: Polyethylene (PE)
- Fibers material: Polymethylmethacrylate (PMMA)
- Ambient operating temperature: -55 °C to +70 °C
- Dimensions (H x L x W): 6mm x 4000mm x 6mm
- Weight: 0.1 kg
Key Features
- Fiber-optic cable with smooth sleeve design
- Proximity system functional principle
- Includes PE hose and stainless steel head for easy cleaning
- Compatible with fiber-optic amplifiers WLL80, WLL180, GLL170(T)
- Minimal object diameter detection of 0.02 mm
- 60° angle of dispersion
- Optical fiber cable can be shortened
- Adapter end sleeves required and included (Adapter sleeve BF-WLL160-13, FC fiber cutter)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems to ensure proper connection and calibration with compatible amplifiers.
Applications
- Standard proximity sensing applications requiring fiber-optic cables
- Industrial automation and detection systems
- Environments requiring easy cleaning with PE hose and stainless steel head
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable materials such as stainless steel and polyethylene reduce replacement frequency
- Supports precise sensing reducing waste and energy consumption in industrial processes
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK LL3-DB114000 fiber-optic cable is available for immediate purchase, ideal for industrial proximity sensing applications requiring durable and precise fiber-optic solutions.
