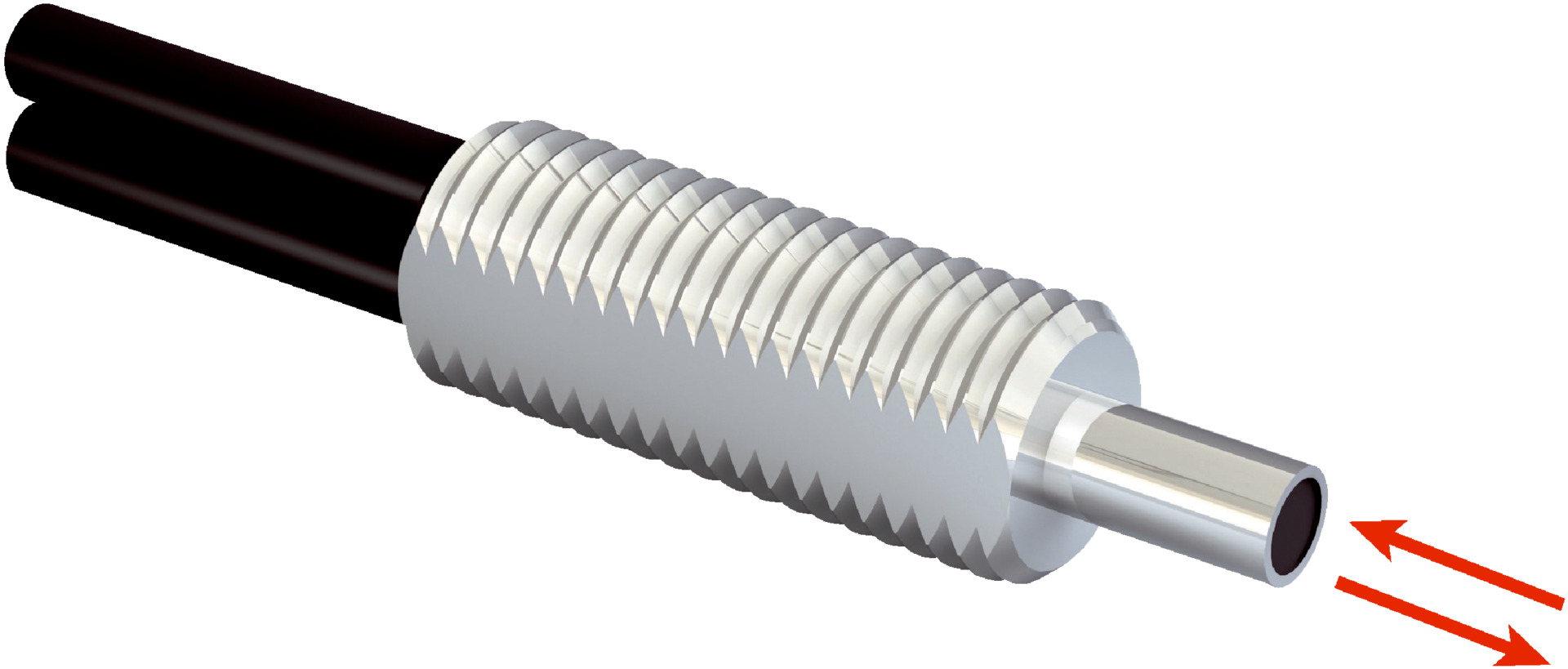

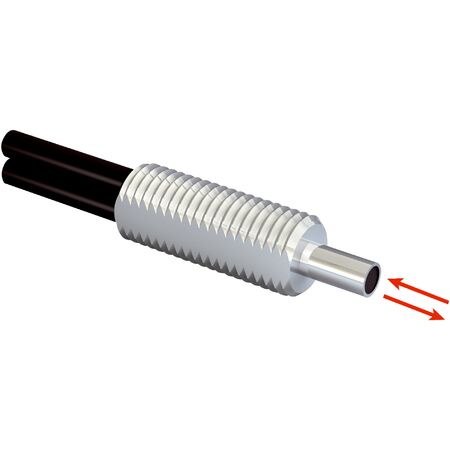

Fiber Optic Proximity Cable LL3-DB01-3 | Threaded Sleeve Design | 60° Angle of Dispersion | 3000 mm Length | by SICK
The Fiber Optic Proximity Cable LL3-DB01-3 features a durable threaded sleeve design and a 60° angle of dispersion, making it ideal for standard proximity sensing applications. With a sensing range dependent on the fiber optic amplifier used and a minimal object diameter detection of just 0.015 mm, this cable is perfect for industrial automation setups. Built with stainless steel and polyethylene materials, it ensures longevity and reliability in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Proximity system
- Fiber-optic head design: Threaded sleeve
- Sensing range: Dependent on fiber optic amplifier used
- Minimal object diameter: 0.015 mm
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: No
- Compatibility with infrared light: No
- Optical fiber cable can be shortened: Yes
- Thread diameter (housing): M6
- Optical fiber taper diameter: ≥ 2.8 mm
- Optical fiber taper length after 2 mm: ≥ 5 mm
- Fiber length: 3000 mm
- Bending radius: 25 mm
- Material optical fiber head: Stainless steel
- Sheath material: Polyethylene (PE)
- Fiber material: Polymethylmethacrylate (PMMA)
- Operating temperature range: -40 °C to +70 °C
- Dimensions (H x L x W): 6mm x 3000mm x 6mm
- Weight: 0.1 kg
Key Features
- Fiber-optic cable with threaded sleeve design
- Axial light emission with 60° angle of dispersion
- Compatible with multiple fiber-optic amplifiers
- Optical fiber cable can be shortened without adapter end sleeves
- Includes mounting hardware and FC fiber cutter
- Stainless steel optical fiber head with M6 thread diameter
- Polyethylene sheath with polymethylmethacrylate fibers
- 3,000 mm fiber length with 25 mm bending radius
- Minimal object diameter detection of 0.015 mm
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems to ensure proper setup and safety.
Applications
- Standard proximity sensing applications
- Compatible with fiber-optic amplifiers WLL80, WLL180, GLL170(T), WLL24 Ex
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable materials reduce replacement frequency and waste
- Energy-efficient sensing reduces power consumption in automation systems
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK LL3-DB01-3 fiber-optic cable is available for immediate purchase, ideal for industrial automation and proximity sensing applications.
