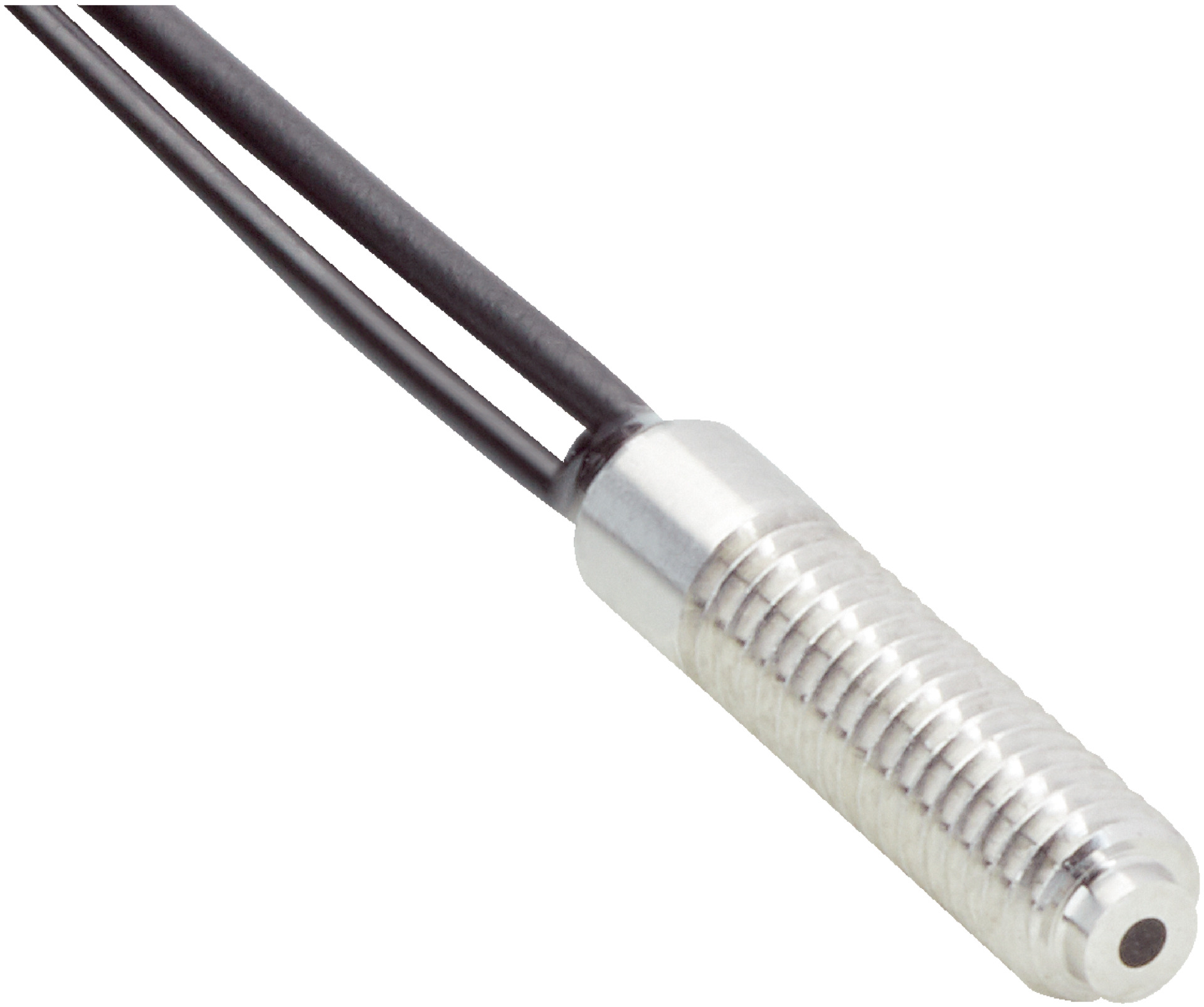

Fiber Optic Proximity Cable | Threaded Sleeve Design | 60° Angle of Dispersion | Axial Light Emission | by SICK
The Fiber Optic Proximity Cable is designed for standard proximity sensing applications, featuring a threaded sleeve design and a 60° angle of dispersion. Ideal for industrial automation and detection systems, this cable is compatible with various fiber-optic amplifiers and can be shortened for flexibility in installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Proximity system
- Fiber-optic head design: Threaded sleeve
- Compatible fiber-optic amplifiers: WLL80, WLL180, GLL170(T)
- Sensing range max: Depends on fiber optic amplifier used
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: Yes
- Compatibility with infrared light: No
- Optical fiber cable can be shortened: Yes
- Adapter end sleeves required: Yes (1 x LLAC-AB10 / 1 x LLAC-AB13)
- Optical fiber head material: Stainless steel
- Light emission: Axial
- Thread diameter (housing): M4
- Fiber length: 2000 mm
- Bending radius: 15 mm
- Dynamic flexibility (robotics): No
- Outside diameter, optical fiber cable connection: 2.2 mm
- Fiber arrangement: Coaxial
- Core structure: Ø 0.5 mm Coaxial
- Sheath material: Polyethylene (PE)
- Fibers material: PMMA
- Ambient operating temperature: -40 °C to +60 °C
- Dimensions (H x L x W): 10mm x 2000mm x 10mm
- Weight: 0.1 kg
Key Features
- Fiber-optic cable with threaded sleeve design
- Proximity system functional principle
- Angle of dispersion: 60°
- Axial light emission
- Compatible with tip adapters
- Optical fiber cable can be shortened
- Includes fiber cutter, mounting set, and fiber adapter bushings
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems to ensure proper setup and safety.
Applications
- Standard proximity sensing applications
- Compatible with fiber-optic amplifiers WLL80, WLL180, GLL170(T)
- Industrial automation and detection systems
Standards & Compliance
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- RoHS compliant, ensuring reduced hazardous substances
- Durable materials reduce waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for details.
Available Now

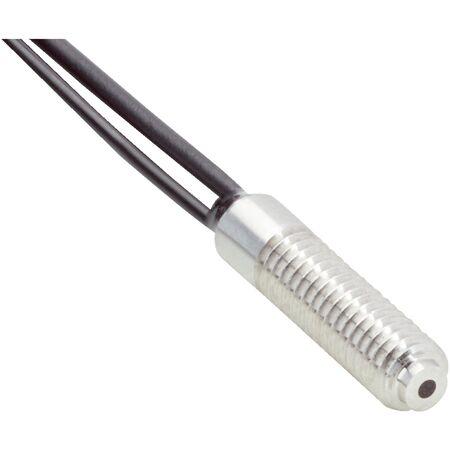

The SICK LLTE-A1400111020E4 fiber-optic cable is available for immediate purchase, ideal for industrial proximity sensing applications.
