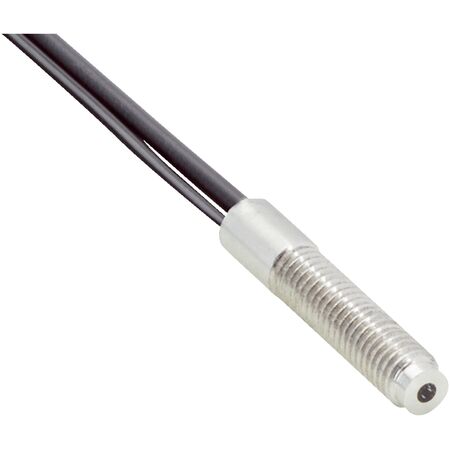

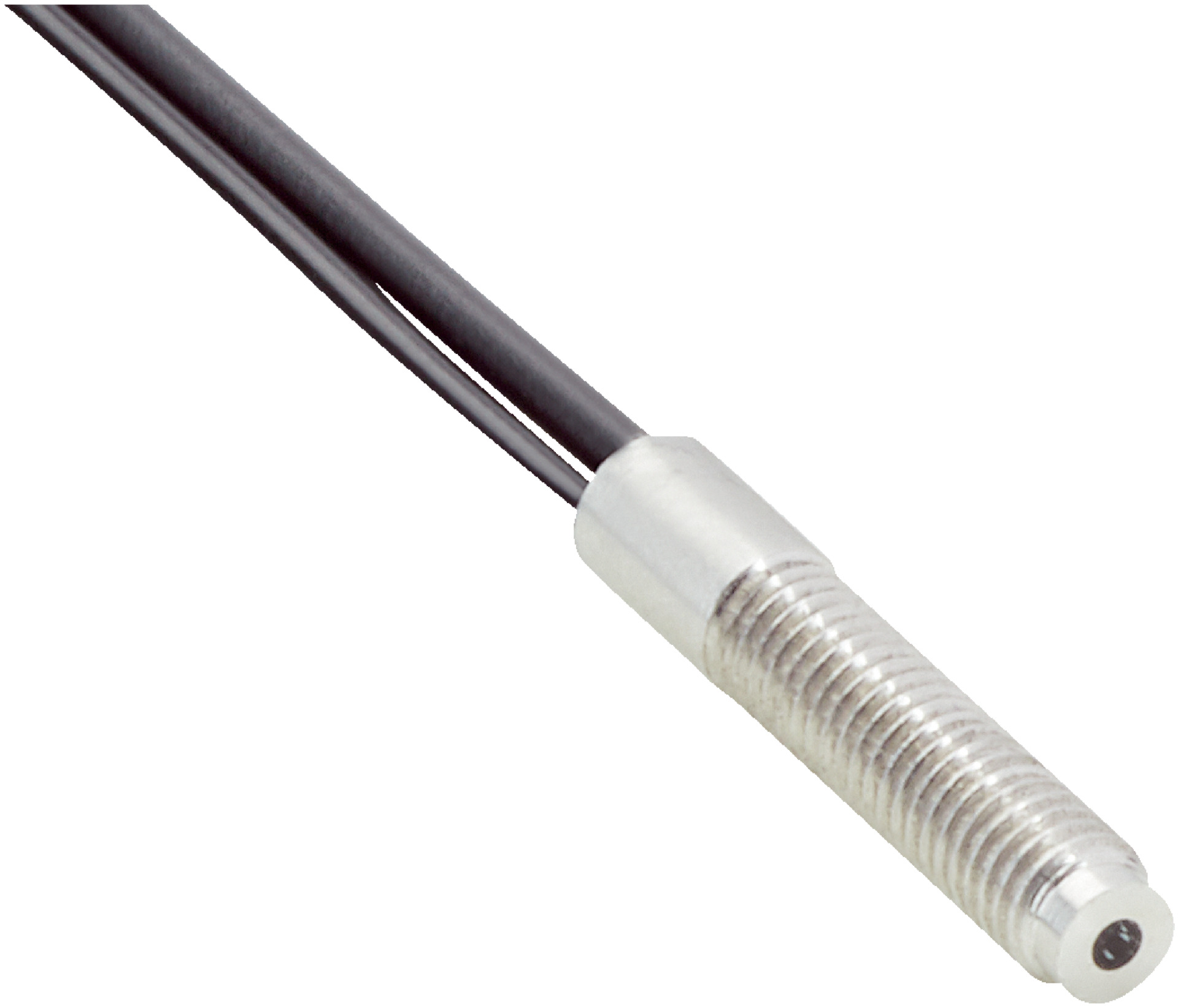

Fiber Optic Proximity Cable | Threaded Sleeve Design | 60° Dispersion Angle | by SICK
The Fiber Optic Proximity Cable LLTE-A1300111150E4 features a threaded sleeve design and a 60° angle of dispersion, making it ideal for standard proximity sensing applications in industrial environments. Built for compatibility with various fiber-optic amplifiers, this cable can be shortened for flexibility and includes essential accessories for installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Proximity system
- Fiber-optic head design: Threaded sleeve
- Sensing range max: Depending on fiber optic amplifier used
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: Yes
- Optical fiber compatibility with infrared light: No
- Optical fiber cable can be shortened: Yes
- Adapter end sleeves required: Yes (1 x LLAC-AB10 / 1 x LLAC-AB13)
- Optical fiber head material: Stainless steel
- Light emission: Axial
- Thread diameter (housing): M3
- Fiber length: 15,000 mm
- Bending radius: 15 mm
- Dynamic flexibility (robotics): No
- Outside diameter, optical fiber cable connection: 2.2 mm
- Fiber arrangement: Coaxial
- Core structure: Ø 0.5 mm Coaxial
- Sheath material: Polyethylene (PE)
- Fibers material: PMMA
- Ambient operating temperature: –40 °C to +60 °C
- Sensing ranges with WLL180T operating modes: 4 mm (16 µs), 15 mm (70 µs), 26 mm (250 µs), 56 mm (2 ms), 111 mm (8 ms)
- Dimensions (H x L x W): 10mm x 15000mm x 10mm
- Weight: 0.1 kg
Key Features
- Fiber-optic cable with threaded sleeve fiber-optic head
- Proximity system functional principle
- Angle of dispersion 60°
- No integrated lens
- Compatibility with tip adapters
- Optical fiber cable can be shortened
- Includes fiber cutter, mounting set, and fiber adapter bushings
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems to ensure proper setup and safety.
Applications
- Standard proximity sensing applications
- Compatible with fiber-optic amplifiers WLL80, WLL180, GLL170(T)
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS compliant, ensuring reduced hazardous substances in manufacturing
Warranty Information
Warranty information not specified; please refer to SICK official warranty policy.
Available Now
The SICK LLTE-A1300111150E4 fiber-optic cable is available for immediate purchase, ideal for standard proximity sensing applications in industrial environments.
