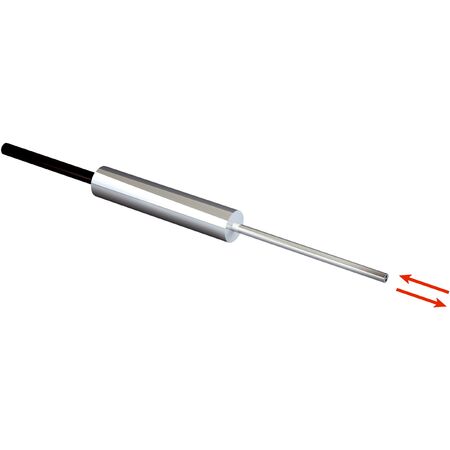

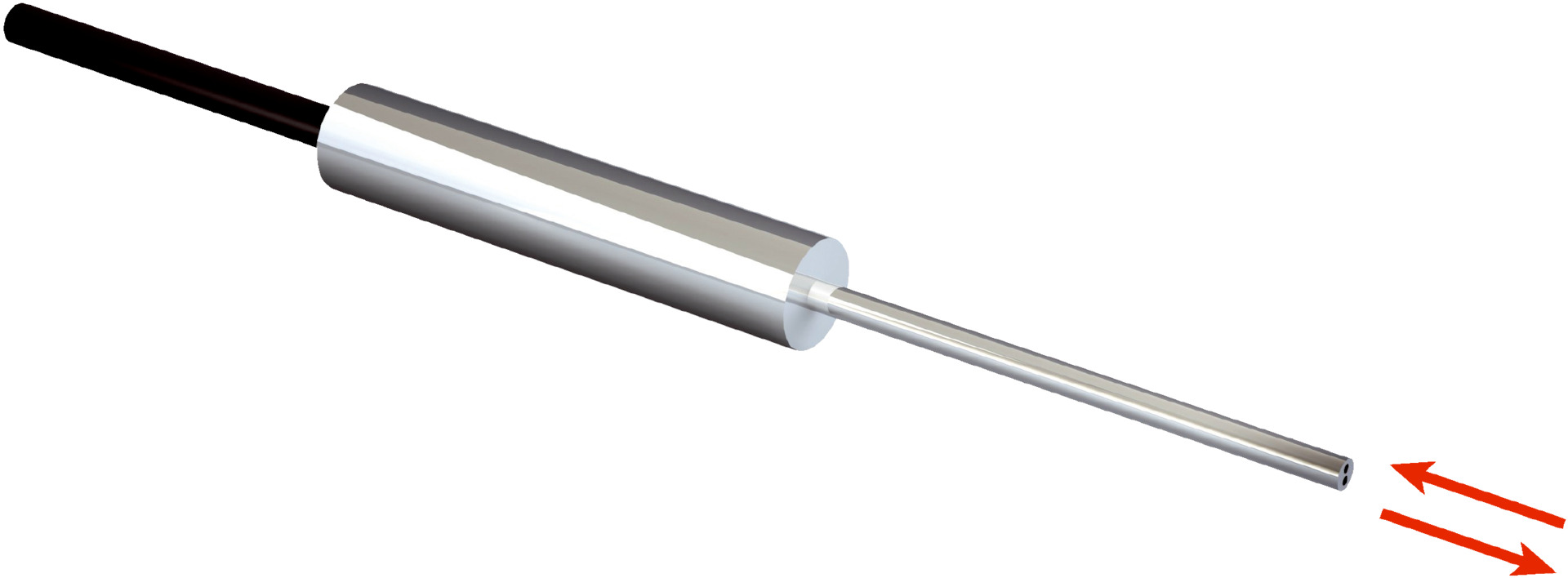

Fiber Optic Proximity Sensor Cable LL3-DR07 | 120mm Sensing Range | Stainless Steel Head | by SICK
The Fiber Optic Proximity Sensor Cable LL3-DR07 is designed for precision sensing in industrial automation, featuring a maximum sensing range of 120 mm and a minimal object diameter detection of just 0.015 mm. With its durable stainless steel head and smooth sleeve design, this cable ensures reliable performance in various applications, making it ideal for object detection and proximity sensing tasks.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Proximity system
- Fiber-optic head design: Smooth sleeve, Long end sleeve
- Compatible fiber-optic amplifiers: WLL80, WLL180, GLL170(T)
- Sensing range max.: 120 mm (WLL80 at 8 ms)
- Minimal object diameter: 0.015 mm
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: No
- Compatibility with infrared light: No
- Optical fiber cable can be shortened: Yes
- Adapter end sleeves required: No
- Optical fiber head material: Stainless steel
- Light emission: Axial
- Smooth sleeve diameter: 3 mm
- Optical fiber taper diameter: ≥ 0.8 mm
- Optical fiber taper length after 2 mm: ≥ 80 mm
- Fiber length: 1000 mm
- Bending radius: 25 mm
- Dynamic flexibility (robotics): No
- Outside diameter, optical fiber cable connection: 2.2 mm
- Fiber arrangement: Singlefiber
- Core structure: 2 x Ø 0.25 mm Singlefiber
- Sheath material: Polyethylene (PE)
- Fibers material: Polymethylmethacrylate (PMMA)
- Ambient operating temperature: –40 °C to +60 °C
- Dimensions (H x L x W): 3mm x 1000mm x 3mm
- Weight: 0.1 kg
Key Features
- Fiber-optic cable with smooth sleeve and long end sleeve design
- Proximity system functional principle
- Maximum sensing range of 120 mm with WLL80 at 8 ms
- Minimal object diameter detection of 0.015 mm
- Axial light emission with 60° angle of dispersion
- Optical fiber cable can be shortened without adapter end sleeves
- Stainless steel optical fiber head with polyethylene sheath
- Fiber length of 1000 mm with 25 mm bending radius
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems to ensure proper setup and safety.
Applications
- Standard proximity sensing applications
- Compatible with fiber-optic amplifiers WLL80, WLL180, GLL170(T)
- Industrial automation and object detection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Non-contact sensing reduces wear and tear, extending product life
- Durable materials reduce waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK LL3-DR07 fiber-optic cable is available for immediate purchase, ideal for industrial automation and proximity sensing applications.
