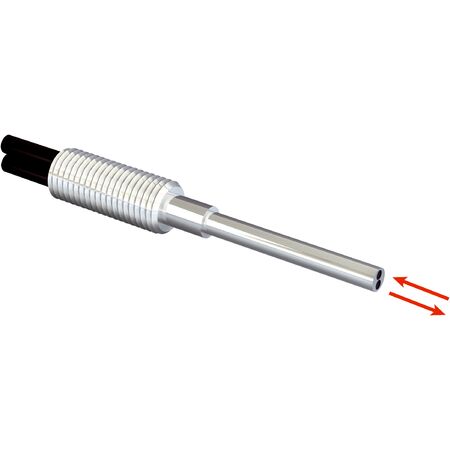

Fiber-Optic Proximity Sensor Cable LL3-DB06 | 1,250 mm Sensing Range | Threaded & Bendable Design | by SICK
The LL3-DB06 fiber-optic proximity sensor cable is designed for precision sensing applications, featuring a maximum sensing range of 1,250 mm and a unique threaded and bendable head design. Ideal for industrial automation, this durable cable is compatible with various fiber-optic amplifiers, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Proximity system
- Fiber-optic head design: Threaded sleeve, long end sleeve, bendable sleeve, 90° deflection
- Compatible fiber-optic amplifiers: WLL80, WLL180, GLL170(T), WLL24 Ex
- Sensing range max.: 1,250 mm (WLL80 at 8 ms)
- Minimal object diameter: 0.02 mm
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: No
- Compatibility with infrared light: No
- Optical fiber cable can be shortened: Yes
- Adapter end sleeves required: No
- Optical fiber head material: Stainless steel
- Light emission: Axial
- Thread diameter (housing): M6
- Optical fiber taper diameter: ≥ 2.5 mm
- Optical fiber taper length after 2 mm: ≥ 35 mm
- Minimum bend radius of end sleeve: 10 mm
- Fiber length: 2,000 mm
- Bending radius: 25 mm
- Dynamic flexibility (robotics): No
- Outside diameter, optical fiber cable connection: 2.2 mm
- Fiber arrangement: Singlefiber
- Core structure: 2 x Ø 1.0 mm Singlefiber
- Sheath material: Polyethylene (PE)
- Fiber material: Polymethylmethacrylate (PMMA)
- Ambient operating temperature: –40 °C to +60 °C
- Dimensions (H x L x W): 35mm x 2000mm x 6mm
- Weight: 0.1 kg
Key Features
- Fiber-optic cable device type with proximity system functional principle
- Threaded sleeve, long end sleeve, bendable sleeve, and 90° deflection fiber-optic head design
- Maximum sensing range of 1,250 mm with WLL80 at 8 ms
- Minimal object diameter detection of 0.02 mm
- 60° angle of dispersion
- Optical fiber cable can be shortened without adapter end sleeves
- Includes mounting hardware, 2 x M6 hexagon nuts, 1 x washer, and FC fiber cutter
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems and electrical wiring standards.
Applications
- Standard proximity sensing applications
- Compatible with fiber-optic amplifiers WLL80, WLL180, GLL170(T), WLL24 Ex
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel and polyethylene materials enhance product longevity, reducing waste
- Low power consumption when used with compatible amplifiers
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK LL3-DB06 fiber-optic cable proximity sensor is available for immediate purchase, ideal for industrial sensing and automation applications.
