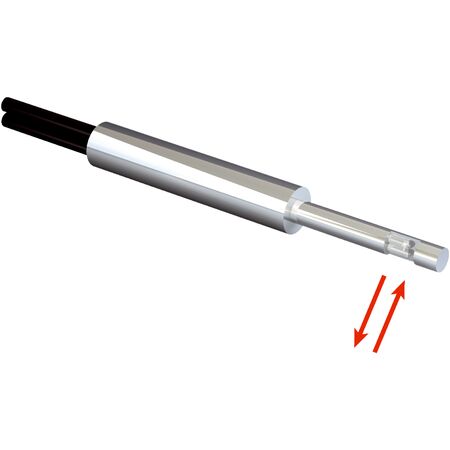

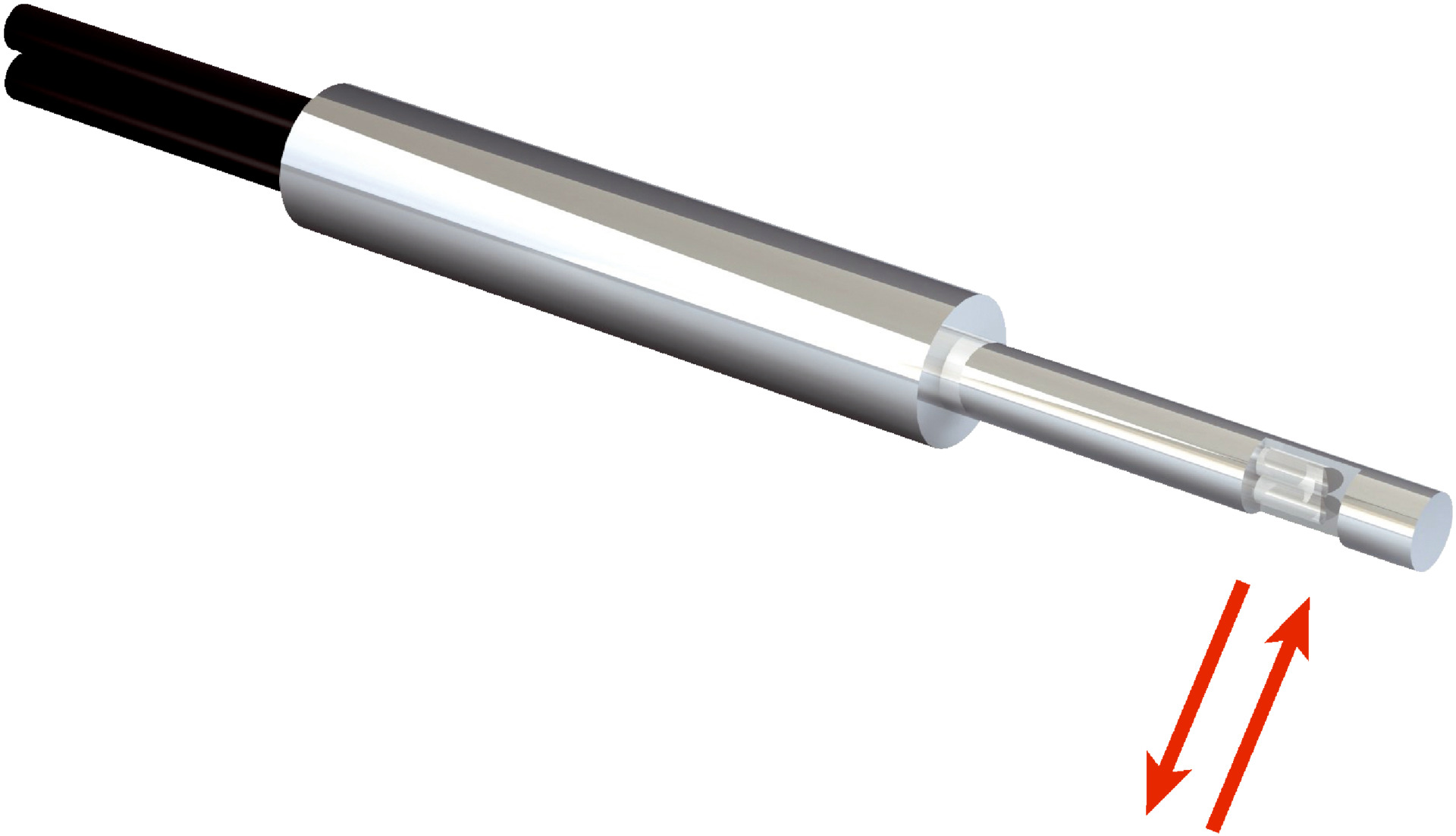

Fiber Optic Proximity Sensor Cable | 320 mm Sensing Range | Smooth Sleeve & 90° Deflection | by SICK
The Fiber Optic Proximity Sensor Cable is designed for precision sensing applications, featuring a maximum sensing range of 320 mm and a unique smooth sleeve with a 90° deflection design. Ideal for industrial environments, this cable ensures minimal object diameter detection of just 0.015 mm, making it perfect for high-accuracy tasks. Built with durable stainless steel and polyethylene, it offers longevity and reliability in various conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Proximity system
- Fiber-optic head design: Smooth sleeve, Long end sleeve, 90° deflection
- Compatible fiber-optic amplifiers: WLL80, WLL180, GLL170(T)
- Sensing range max.: 320 mm (WLL80 at 8 ms)
- Minimal object diameter: 0.015 mm
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: No
- Compatibility with infrared light: No
- Optical fiber cable can be shortened: Yes
- Adapter end sleeves required: Yes
- Included with delivery: Adapter sleeves, BF-WLL160-10 (1.0 mm) adapter sleeves, FC fiber cutter
- Optical fiber head material: Stainless steel
- Light emission: Radial
- Smooth sleeve diameter: 3 mm
- Optical fiber taper diameter: ≥ 1.5 mm
- Optical fiber taper length after 2 mm: ≥ 10 mm
- Fiber length: 2000 mm
- Bending radius: 25 mm
- Dynamic flexibility (robotics): No
- Outside diameter, optical fiber cable connection: 1 mm
- Fiber arrangement: Singlefiber
- Core structure: 2 x Ø 0.5 mm
- Sheath material: Polyethylene (PE)
- Fibers material: Polymethylmethacrylate (PMMA)
- Ambient operating temperature: –40 °C to +70 °C
- Dimensions (H x L x W): 10mm x 2000mm x 3mm
- Weight: 0.1 kg
Key Features
- Fiber-optic cable with smooth sleeve, long end sleeve, and 90° deflection design
- Maximum sensing range of 320 mm with WLL80 at 8 ms
- Minimal object diameter detection of 0.015 mm
- Angle of dispersion of 60°
- Radial light emission
- Optical fiber cable can be shortened
- Includes adapter sleeves and FC fiber cutter
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems to ensure proper setup and safety.
Applications
- Standard proximity sensing applications
- Compatible with fiber-optic amplifiers WLL80, WLL180, GLL170(T)
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel and polyethylene materials ensure long product life and reduce waste
- Low power consumption when used with compatible amplifiers
Warranty Information
Standard manufacturer warranty applies.
Available Now
The SICK LL3-DV02 fiber-optic cable is available for immediate purchase, ideal for industrial proximity sensing applications.
