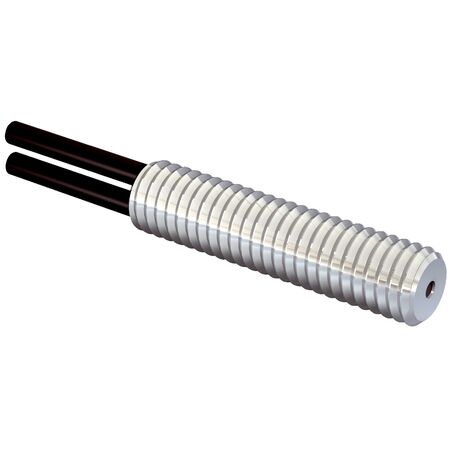

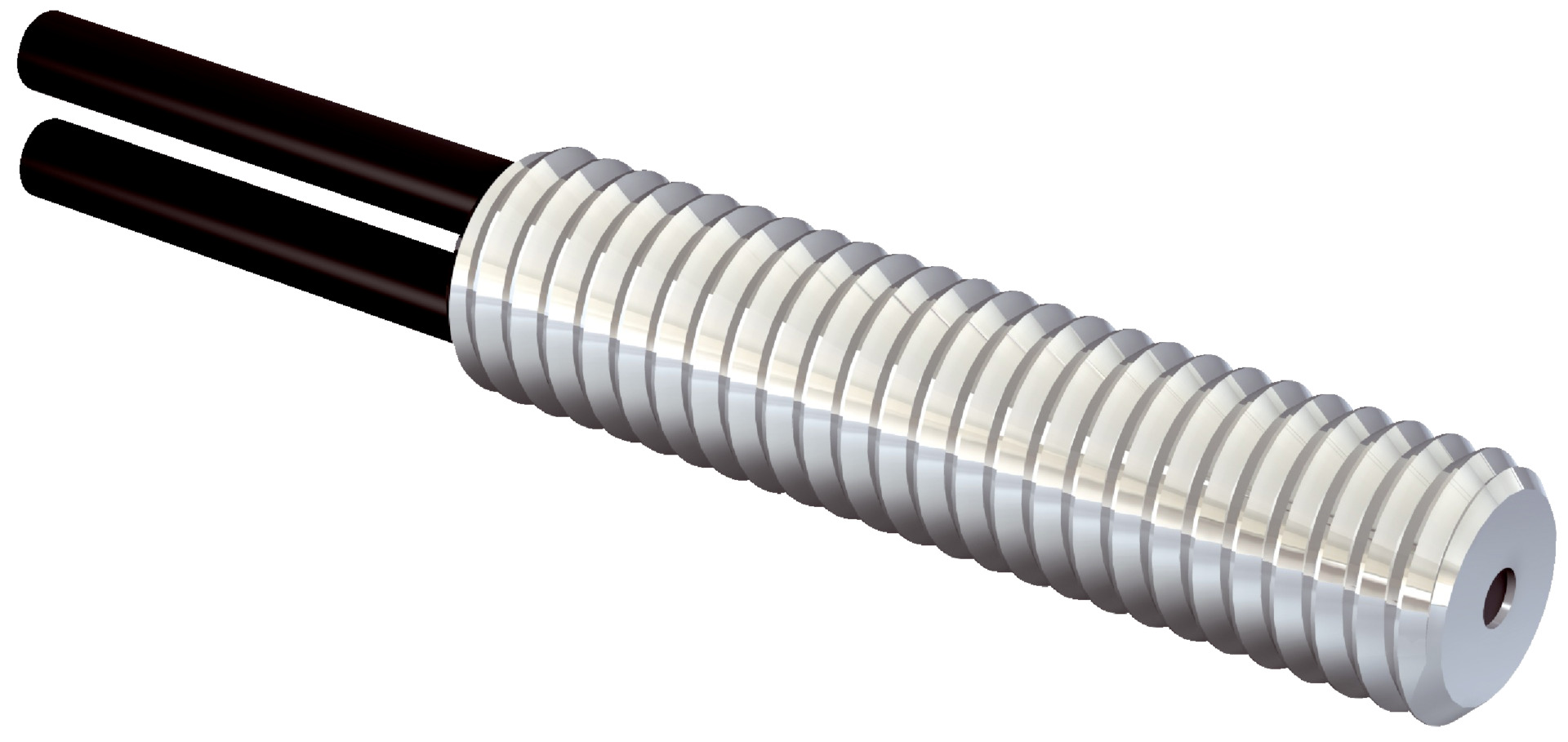

Fiber Optic Proximity Sensor Cable LL3-DR02 | 320 mm Sensing Range | Threaded Sleeve Design | by SICK
The LL3-DR02 fiber optic proximity sensor cable is designed for high flexibility in static and dynamic applications, featuring a maximum sensing range of 320 mm and a minimal object diameter detection of just 0.015 mm. With its threaded sleeve design and axial light emission, this cable is perfect for robotics and industrial automation, ensuring precise sensing and improved efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Proximity system
- Fiber-optic head design: Threaded sleeve
- Sensing range max.: 320 mm (with WLL80 at 8 ms)
- Minimal object diameter: 0.015 mm
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: No
- Compatibility with infrared light: No
- Optical fiber cable can be shortened: Yes
- Adapter end sleeves required: Yes
- Optical fiber head material: Stainless steel
- Light emission: Axial
- Thread diameter (housing): M3
- Fiber length: 1000 mm
- Bending radius: 4 mm
- Dynamic flexibility (robotics): Yes
- Outside diameter, optical fiber cable connection: 1 mm
- Fiber arrangement: Multi-fiber
- Core structure: 2 x Ø 0.25 mm
- Sheath material: Polyethylene (PE)
- Fibers material: Polymethylmethacrylate (PMMA)
- Ambient operating temperature: -40 °C to +70 °C
- Dimensions (H x L x W): 3mm x 1000mm x 3mm
- Weight: 0.1 kg
Key Features
- Fiber-optic cable with threaded sleeve design
- Compatible with WLL80, WLL180, GLL170(T) fiber-optic amplifiers
- Maximum sensing range of 320 mm with WLL80 at 8 ms
- Minimal object diameter detection of 0.015 mm
- Axial light emission with 60° angle of dispersion
- Optical fiber cable can be shortened
- Includes mounting accessories and fiber cutter
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems to ensure proper setup and safety.
Applications
- High flexible static applications
- Robotics dynamic flexible sensing
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Enables precise sensing reducing waste and improving automation efficiency
- Durable materials extend product life reducing replacement frequency
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
The SICK LL3-DR02 fiber-optic cable is available for immediate purchase, ideal for industrial automation and robotic sensing applications.
