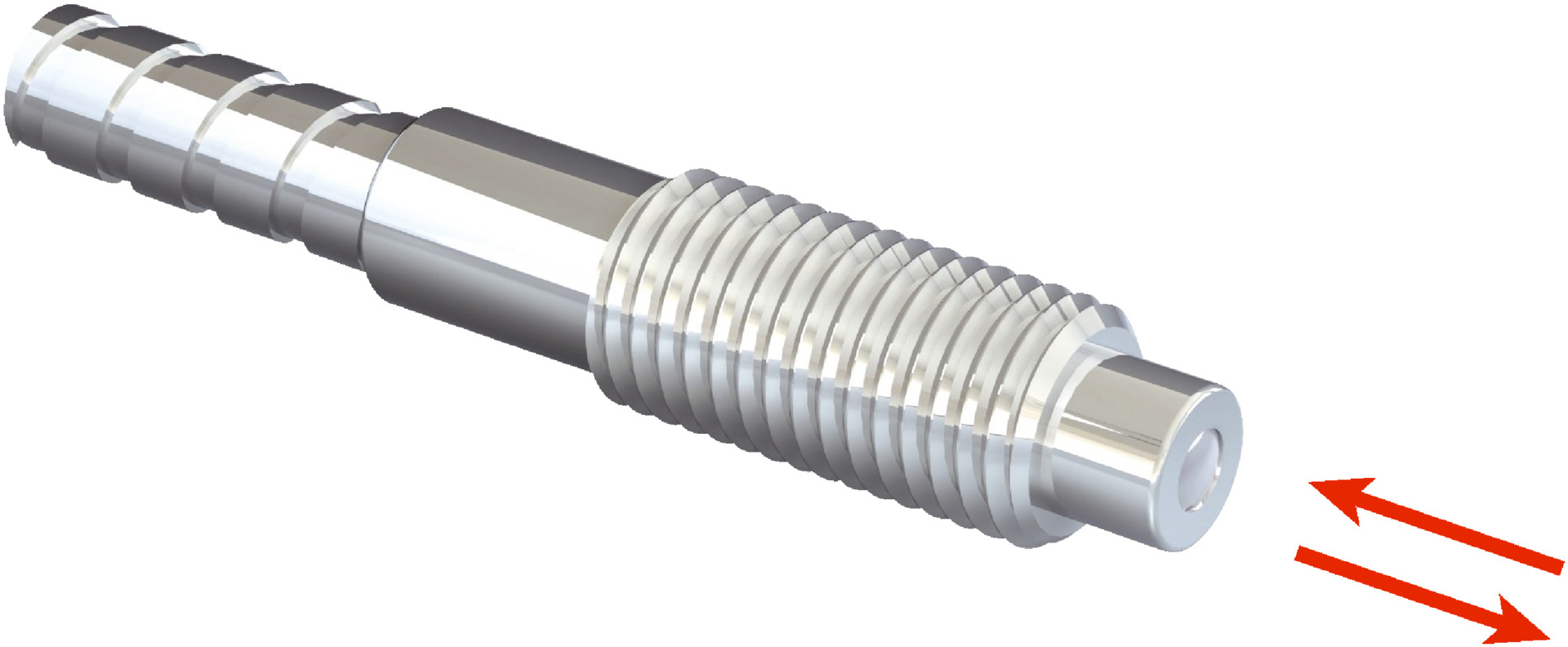

Fiber Optic Proximity Sensor Cable | Heat-Resistant Up to 100°C | Threaded Sleeve Design | by SICK
The Fiber Optic Proximity Sensor Cable is designed for industrial automation, featuring a heat-resistant capability of up to 100°C and a threaded sleeve head design. Ideal for high-temperature environments, this sensor cable ensures precise detection with a minimal object diameter of just 0.02 mm, making it perfect for applications requiring reliable proximity sensing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Proximity system
- Fiber-optic head design: Threaded sleeve
- Application: Heat-resistant (≥100°C)
- Compatible fiber-optic amplifiers: WLL80, WLL180, GLL170(T)
- Sensing range max.: Dependent on fiber optic amplifier used
- Minimal object diameter: 0.02 mm
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: No
- Compatibility with infrared light: Yes
- Adapter end sleeves required: No
- Light emission: Axial
- Thread diameter (housing): M6
- Optical fiber taper diameter: ≥ 4 mm
- Optical fiber taper length after 2 mm: ≥ 3 mm
- Fiber length: 1000 mm
- Bending radius: 25 mm
- Dynamic flexibility (robotics): No
- Outside diameter, optical fiber cable connection: 2.2 mm
- Material: Stainless steel head and sheath, glass fibers
- Ambient operating temperature: –40 °C to +210 °C
- Sensing ranges with WLL180T operating modes: 16 µs - 20 mm, 70 µs - 50 mm, 250 µs - 95 mm, 2 ms - 150 mm, 8 ms - 400 mm
- Sensing ranges with GLL170 operating mode 250 µs: 142 mm
- Sensing ranges with GLL170T operating modes: 50 µs - 206 mm, 250 µs - 323 mm
- Dimensions (H x L x W): 6mm x 1000mm x 6mm
- Weight: 0.1 kg
Key Features
- Fiber-optic cable device type with threaded sleeve head design
- Heat-resistant up to ≥100°C
- Compatible with infrared light
- Axial light emission with 60° angle of dispersion
- Stainless steel optical fiber head and sheath with glass fibers
- Includes mounting hardware: 2 x M6 hexagon nuts and 1 washer
- Fiber length of 1000 mm with 2.2 mm outside diameter cable
- Minimal object diameter detection of 0.02 mm
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems and compatible amplifiers to ensure proper setup and safety.
Applications
- Industrial automation requiring heat-resistant fiber-optic proximity sensing
- Use with compatible fiber-optic amplifiers WLL80, WLL180, GLL170(T)
- Environments with ambient temperatures from -40°C to +210°C
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction extends product life reducing waste
- Heat resistance reduces need for frequent replacements in high-temperature environments
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now

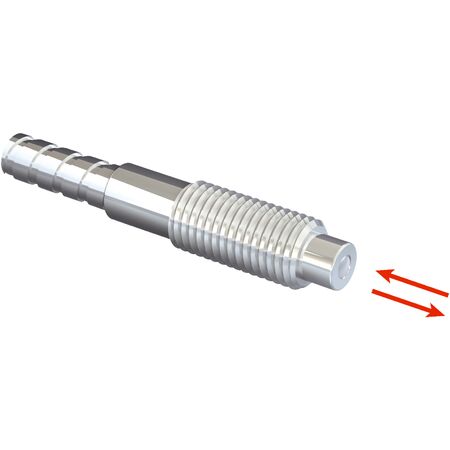

The SICK LL3-DW01 fiber-optic cable proximity sensor is available for immediate purchase, ideal for industrial automation and high-temperature sensing applications.
