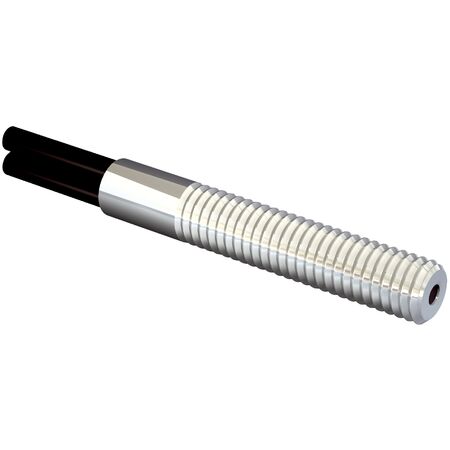

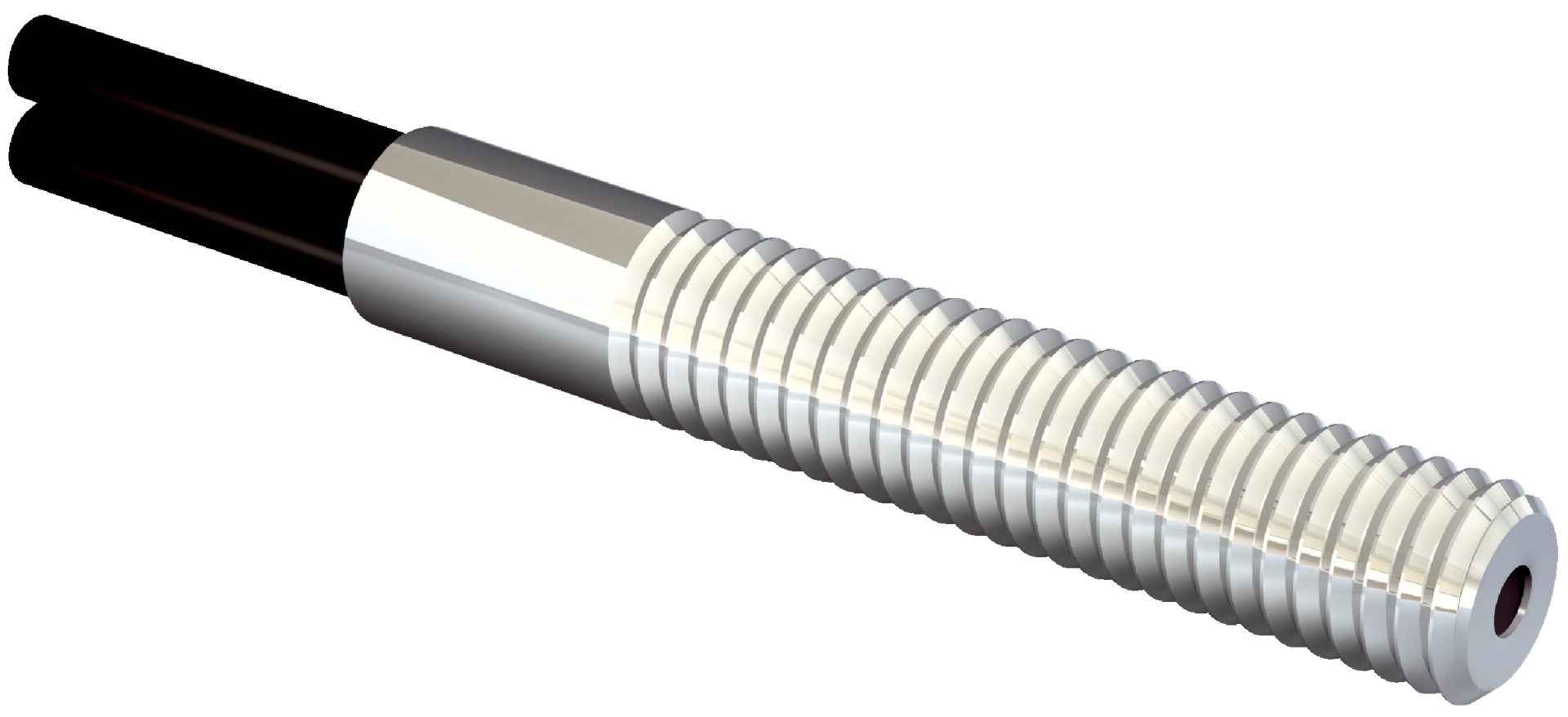

Fiber Optic Proximity Sensor Cable | Threaded Sleeve Design | Axial Light Emission | -40°C to +70°C Operating Range | by SICK
The Fiber Optic Proximity Sensor Cable is designed for standard proximity sensing applications, featuring a threaded sleeve design and an operating temperature range of -40°C to +70°C. Built for industrial automation, this durable sensor cable includes mounting hardware and is compatible with various fiber-optic amplifiers, ensuring reliable object detection in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Proximity system
- Fiber-optic head design: Threaded sleeve
- Sensing range max.: Depending on fiber optic amplifier used
- Minimal object diameter: 0.015 mm
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: Yes
- Compatibility with infrared light: No
- Optical fiber cable can be shortened: Yes
- Adapter end sleeves required: Yes
- Included with delivery: Mounting, 2 x M3 hexagon nut, 2 x washer, adapter sleeves, BF-WLL160-13 (1.3 mm) adapter sleeves, FC fiber cutter
- Optical fiber head material: Stainless steel
- Light emission: Axial
- Thread diameter (housing): M3
- Fiber length: 2000 mm
- Bending radius: 15 mm
- Dynamic flexibility (robotics): No
- Outside diameter, optical fiber cable connection: 1.3 mm
- Fiber arrangement: Coaxial
- Core structure: S: Ø 0.5 mm, R: 9 x Ø 0.25 mm
- Sheath material: Polyethylene (PE)
- Fibers material: Polymethylmethacrylate (PMMA)
- Ambient operating temperature: -40 °C to +70 °C
- Dimensions (H x L x W): 3mm x 2000mm x 3mm
- Weight: 0.1 kg
Key Features
- Fiber-optic cable with threaded sleeve design
- Proximity system functional principle
- 1,950 mm heat-shrink tubing for protection
- Compatible with infrared light: No
- Optical fiber cable can be shortened
- Includes mounting hardware and adapter sleeves
- Axial light emission with M3 thread diameter housing
- Stainless steel optical fiber head
- Polyethylene (PE) sheath and polymethylmethacrylate (PMMA) fibers
- Coaxial fiber arrangement with core structure S: Ø 0.5 mm, R: 9 x Ø 0.25 mm
- Operating temperature range from -40 °C to +70 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems to ensure proper setup and safety.
Applications
- Standard proximity sensing applications
- Use with compatible fiber-optic amplifiers WLL80, WLL180, GLL170(T)
- Industrial automation and object detection
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable materials reduce replacement frequency and waste
- Energy-efficient sensing reduces power consumption in automation systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK LL3-DT01S02 fiber-optic cable proximity sensor is available for immediate purchase, ideal for industrial automation and standard proximity sensing applications.
