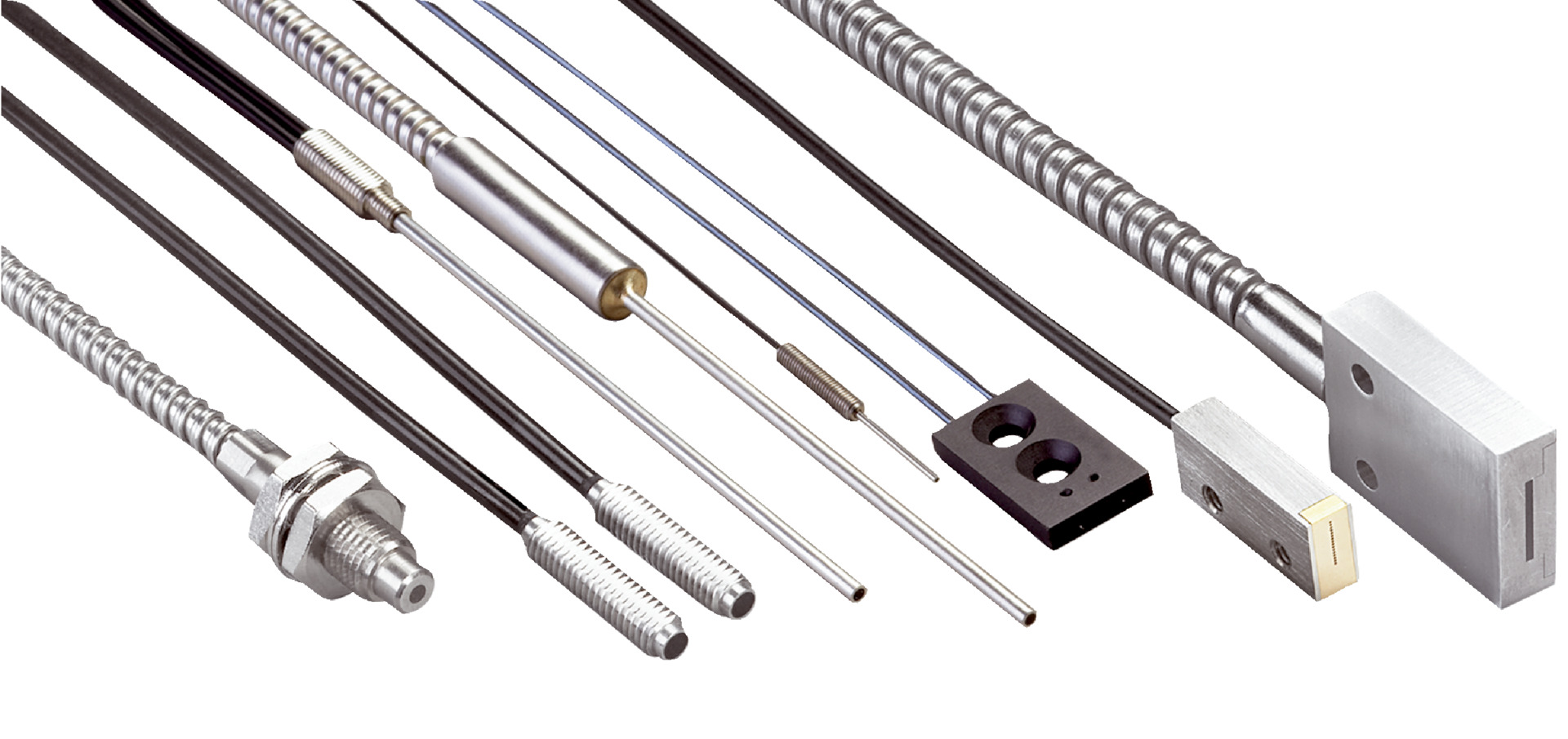

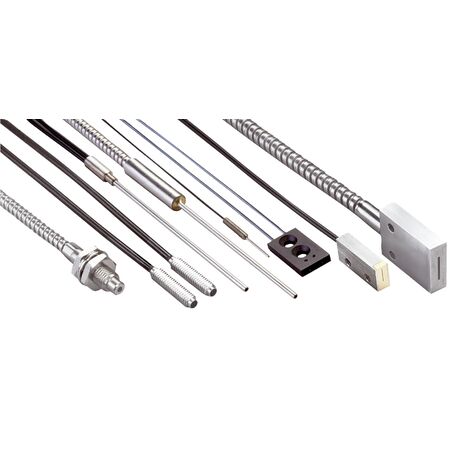

Fiber Optic Proximity Sensor LL3-DL01 | Flat Head Design | 3,490 mm Length | Axial Light Emission | by SICK
The Fiber Optic Proximity Sensor LL3-DL01 is designed for standard proximity sensing applications, utilizing advanced fiber-optic technology for reliable performance. With a flat head design and a sensing range compatible with various amplifiers, this sensor is perfect for industrial automation. Its non-contact sensing reduces wear and tear, ensuring longevity and efficiency in your operations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Proximity system
- Fiber-optic head design: Flat type
- Compatible fiber-optic amplifiers: WLL80, WLL180, GLL170(T)
- Sensing range max.: Depending on the fiber optic amplifier used
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: No
- Adapter end sleeves required: No
- Light emission: Axial
- Fiber length: 3,490 mm
- Dynamic flexibility (robotics): No
- Outside diameter, optical fiber cable connection: 2.2 mm
- Fiber arrangement: Multi-fiber
- Core structure: Multi-fiber
- Weight: 13 g
- Sensing ranges with GLL170 operating mode 250 µs: 94 mm
- Sensing ranges with GLL170T operating mode 50 µs: 77 mm
- Sensing ranges with GLL170T operating mode 250 µs: 162 mm
- Dimensions (H x L x W): 10mm x 3490mm x 10mm
- Weight: 0.1 kg
Key Features
- Fiber-optic cable device type
- Proximity system functional principle
- Flat type fiber-optic head design
- Axial light emission
- Multi-fiber core structure and arrangement
- Fiber length of 3,490 mm
- Outside diameter of optical fiber cable connection is 2.2 mm
- Angle of dispersion 60°
- No integrated lens or compatibility tip adapters required
- No adapter end sleeves required
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems and compatible amplifiers to ensure optimal performance and safety.
Applications
- Standard proximity sensing applications using fiber-optic technology
- Compatible with fiber-optic amplifiers WLL80, WLL180, GLL170(T)
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Non-contact sensing reduces wear and tear, extending product life and reducing waste
- Energy-efficient fiber-optic technology minimizes power consumption
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK LL3-DL01 Fiber-Optic Cable Proximity Sensor is available for immediate purchase, ideal for industrial and automation sensing applications.
