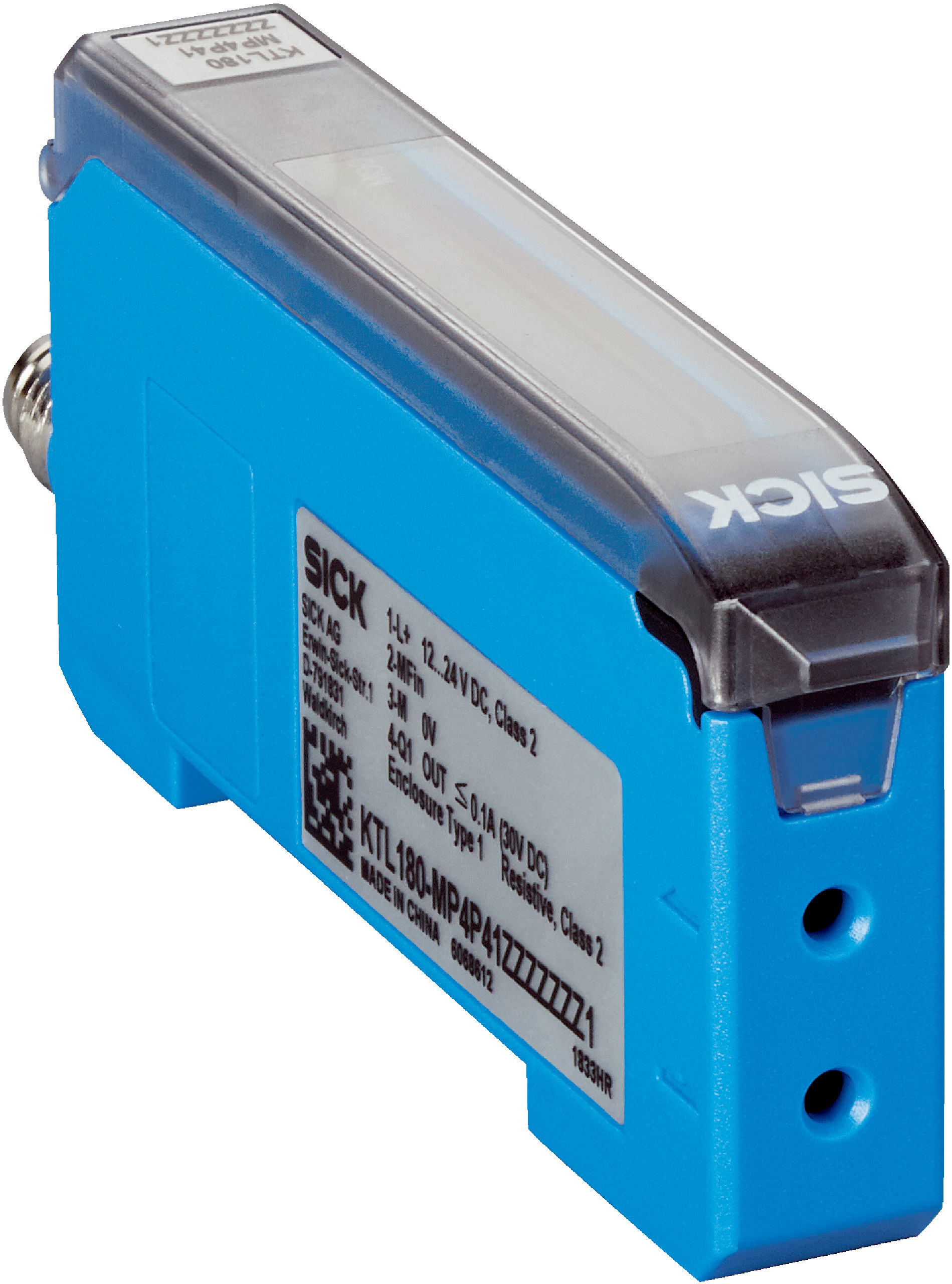

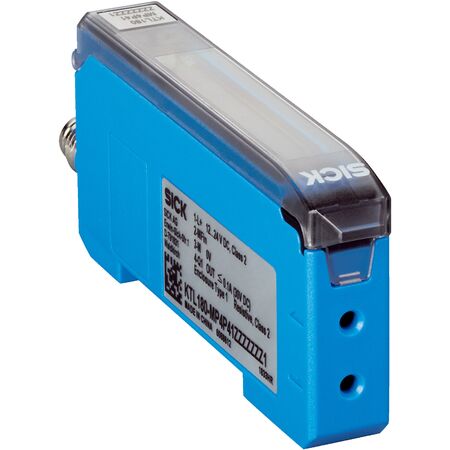

Fiber-Optic Proximity Sensor KTL180-MN4P71ZZZZZ | IP50 Rated | LED Status Display | 30mm Sensing Range | by SICK
The KTL180-MN4P71ZZZZZ fiber-optic proximity sensor is designed for industrial automation, featuring a sensing range of up to 30 mm and an IP50 enclosure rating for dust protection. With a fast response time of 16 µs and NPN switching output, it’s perfect for machine safety and process control applications, ensuring reliable performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 12 V DC to 24 V DC with ≤ 10% ripple
- Current consumption: ≥ 50 mA at 24 V
- Switching frequency: 31.2 kHz
- Response time: 16 µs
- Jitter: 8 µs
- Number of switching outputs: 1 (NPN)
- Output current max: 100 mA
- Switching mode: Light/dark switching
- Protection class: III
- Circuit protection: Reverse polarity, short-circuit, overcurrent, and interference pulse suppression
- Ambient operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Enclosure rating: IP50
- Shock load tested to IEC 60068-2-27
- Dimensions (H x L x W): 33.2mm x 71.9mm x 10.5mm
- Weight: 0.1 kg
Key Features
- Stand-alone device with LED status display and dual 4-character digital displays
- Sensing range up to 30 mm with proximity system
- White LED light source with approx. 65° angle of dispersion
- 1-point, 2-point, and dynamic teach-in modes
- Adjustable delay time and multi-function input
- NPN switching output with light/dark switching mode
- Reverse polarity, short-circuit, and overcurrent protected outputs
- Cable open end 4-wire connection with 2 m cable length
- Operating temperature range from -25°C to +55°C
- Enclosure rating IP50 for protection against dust
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Fiber-optic sensing applications
- Machine safety and process control
Standards & Compliance
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Low power consumption with 12 V DC to 24 V DC supply voltage
- Durable housing material (VISTAL®) extends product life reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK KTL180-MN4P71ZZZZZ fiber-optic sensor is available for immediate purchase, ideal for industrial automation and fiber-optic sensing applications.
