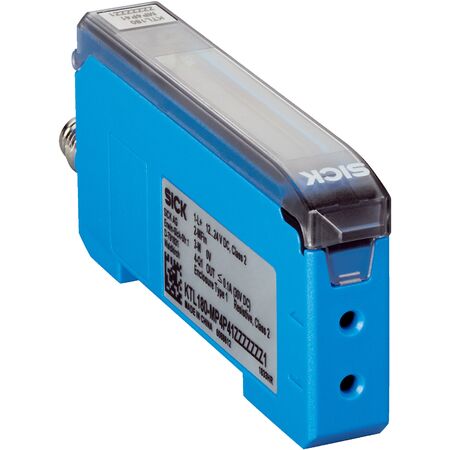

Fiber-Optic Proximity Sensor KTL180-MN4P41ZZZZZ | LED Display | NPN Output | IP50 Rated | by SICK
The KTL180-MN4P41ZZZZZ fiber-optic proximity sensor is designed for industrial automation, featuring a responsive LED display and a sensing range of up to 30 mm. With a robust IP50 enclosure and protection against reverse polarity and short-circuits, this sensor is perfect for machine safety and monitoring applications, ensuring reliable performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 12 V DC to 24 V DC with ≤10% ripple
- Current consumption: ≥ 50 mA at 24 V
- Switching frequency: 31.2 kHz
- Response time: 16 µs
- Jitter: 8 µs
- Number of switching outputs: 1 NPN output
- Output current max: 100 mA
- Switching mode: Light/dark switching
- Retention time: 25 ms non-volatile memory
- Protection class: III
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Housing material: VISTAL®
- Connection type: Male M8, 4-pin connector
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Shock load tested to IEC 60068-2-27
- Enclosure rating: IP50
- Dimensions (H x L x W): 33.2mm x 71.9mm x 10.5mm
- Weight: 0.1 kg
Key Features
- Stand-alone device with LED status display and dual 4-character digital displays showing set and actual values simultaneously
- Sensing range up to 30 mm with proximity system
- White LED light source with approx. 65° angle of dispersion
- 1-point, 2-point, and dynamic teach-in modes
- Adjustable delay time and multi-function input
- NPN switching output with light/dark switching mode
- Protection against reverse polarity, short-circuit, and interference pulses
- Compact housing made of VISTAL® with male M8 4-pin connector
- Operating temperature range from -25 °C to +55 °C
- IP50 enclosure rating
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and configuration.
Applications
- Industrial automation for object detection
- Fiber-optic sensing applications
- Machine safety and monitoring systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with 12 V DC to 24 V DC supply voltage
- Durable housing reduces waste and extends product life
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK KTL180-MN4P41ZZZZZ fiber-optic sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
