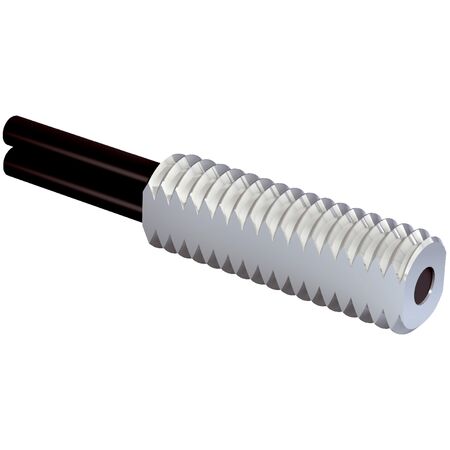

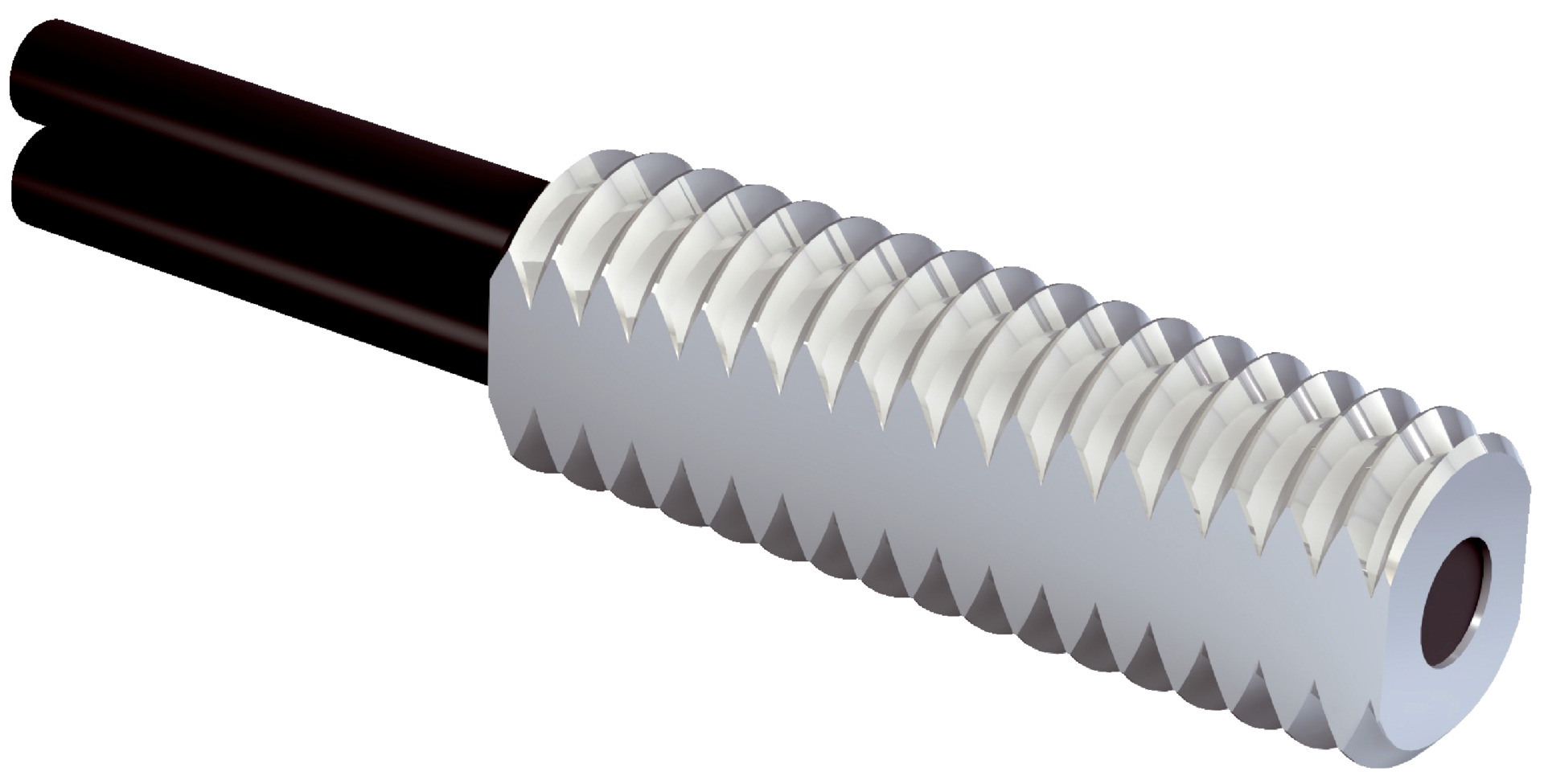

Fiber Optic Proximity Sensor LL3-DM02 | 710 mm Sensing Range | Threaded Sleeve Design | by SICK
The Fiber Optic Proximity Sensor LL3-DM02 is engineered for precision in industrial automation, featuring a maximum sensing range of 710 mm and a threaded sleeve design for easy installation. With a minimal object diameter detection of just 0.015 mm and a 60° angle of dispersion, this sensor is perfect for standard proximity sensing applications, ensuring reliable performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Proximity system
- Fiber-optic head design: Threaded sleeve
- Compatible fiber-optic amplifiers: WLL80, WLL180, GLL170(T), WLL24 Ex, KTL180
- Sensing range max.: 710 mm (with WLL80 at 8 ms)
- Minimal object diameter: 0.015 mm
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: Yes
- Compatibility with infrared light: No
- Optical fiber cable can be shortened: Yes
- Adapter end sleeves required: Yes
- Included with delivery: Mounting, 2 x M4 hexagon nut, 2 x washer, adapter sleeves, BF-WLL160-13 (1.3 mm) adapter sleeves, FC fiber cutter
- Optical fiber head material: Stainless steel
- Light emission: Axial
- Thread diameter (housing): M4
- Fiber length: 2000 mm
- Bending radius: 15 mm
- Dynamic flexibility (robotics): No
- Outside diameter, optical fiber cable connection: 1.3 mm
- Fiber arrangement: Coaxial
- Core structure: S: Ø 0.5 mm, R: 9 x Ø 0.25 mm
- Sheath material: Polyethylene (PE)
- Fibers material: Polymethylmethacrylate (PMMA)
- Ambient operating temperature: -40 °C to +70 °C
- Dimensions (H x L x W): 10mm x 50mm x 10mm
- Weight: 0.1 kg
Key Features
- Fiber-optic cable device type with threaded sleeve fiber-optic head
- Proximity system functional principle
- Maximum sensing range of 710 mm with WLL80 at 8 ms
- Minimal object diameter detection of 0.015 mm
- 60° angle of dispersion
- No integrated lens, compatibility with tip adapters
- Optical fiber cable can be shortened
- Includes mounting hardware, adapter sleeves, and fiber cutter
- Optical fiber head made of stainless steel with axial light emission
- Fiber length of 2000 mm with 15 mm bending radius
- Sheath made of polyethylene (PE) and fibers of polymethylmethacrylate (PMMA)
- Operating temperature range from -40 °C to +70 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems to ensure proper setup and safety.
Applications
- Standard proximity sensing applications
- Compatible with fiber-optic amplifiers WLL80, WLL180, GLL170(T), WLL24 Ex, KTL180
- Industrial automation and object detection
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable materials reduce waste and replacement frequency
- Energy-efficient sensing technology minimizes power consumption
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK LL3-DM02 Fiber-Optic Cable Proximity Sensor is available for immediate purchase. Ideal for industrial automation and precise object detection applications.
