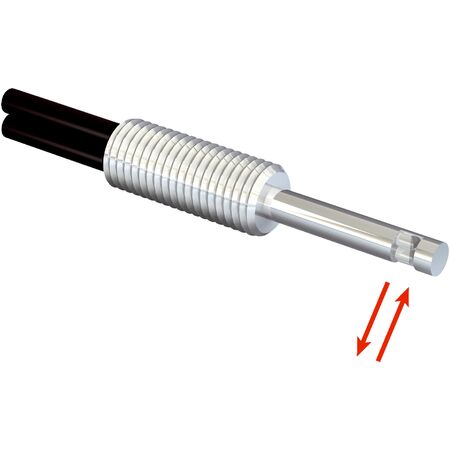

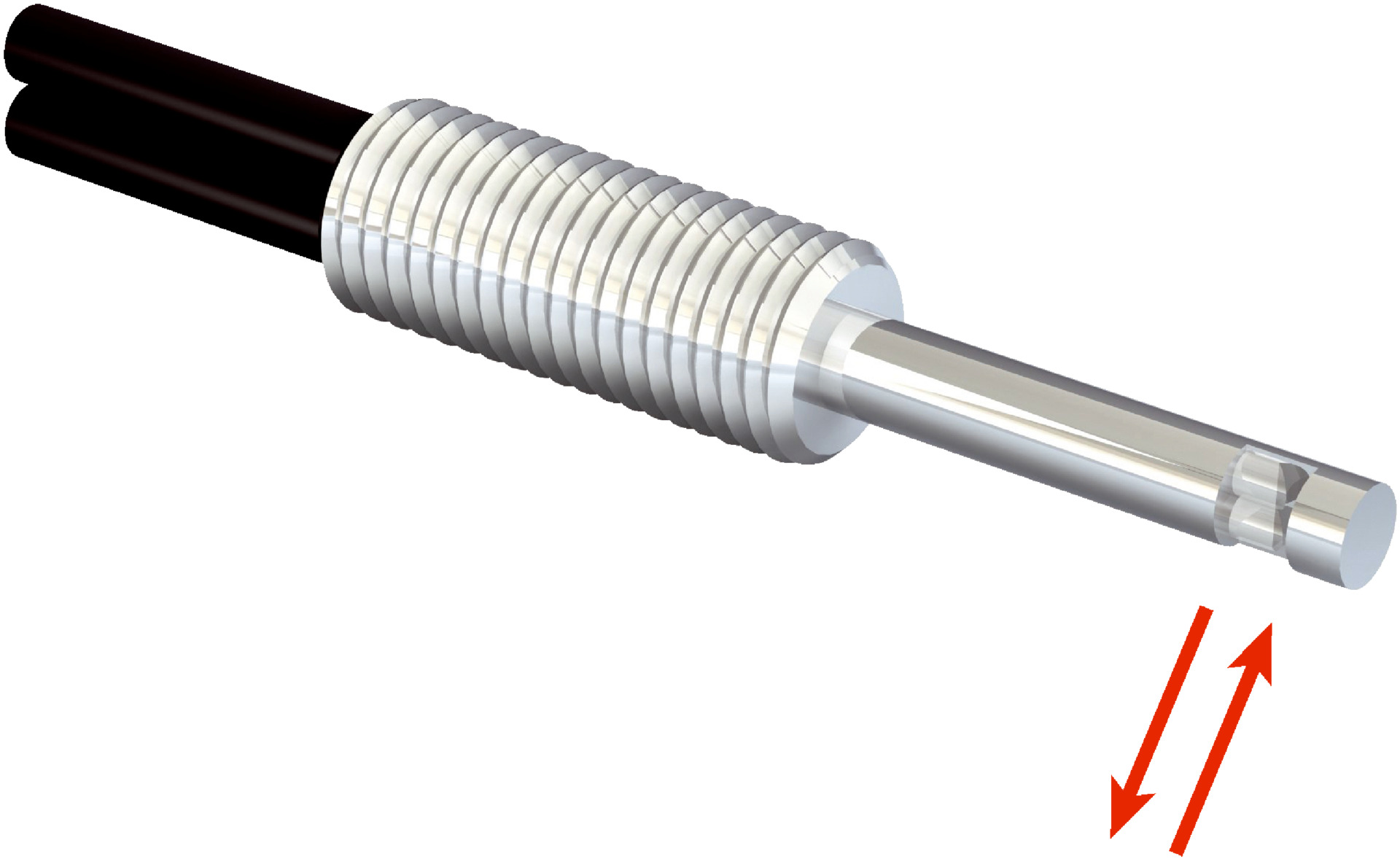

Fiber Optic Proximity Sensor LL3-DV03 | 970 mm Sensing Range | Stainless Steel Head | 60° Dispersion | by SICK
The Fiber Optic Proximity Sensor LL3-DV03 is designed for precision sensing in industrial applications, featuring a maximum sensing range of 970 mm and a minimal object diameter detection of just 0.025 mm. With a robust stainless steel head and a 60° angle of dispersion, this sensor is perfect for reliable proximity detection in automation systems, ensuring optimal performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Proximity system
- Fiber-optic head design: Threaded sleeve, Long end sleeve, 90° deflection
- Compatible fiber-optic amplifiers: WLL80, WLL180, GLL170(T), WLL24 Ex
- Sensing range max.: 970 mm (with WLL80 at 8 ms)
- Minimal object diameter: 0.025 mm
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: No
- Compatibility with infrared light: No
- Optical fiber cable can be shortened: Yes
- Adapter end sleeves required: No
- Optical fiber head material: Stainless steel
- Light emission: Radial
- Thread diameter (housing): M6
- Optical fiber taper diameter: ≥ 2.7 mm
- Optical fiber taper length after 2 mm: ≥ 20 mm
- Fiber length: 2000 mm
- Bending radius: 25 mm
- Dynamic flexibility (robotics): No
- Outside diameter, optical fiber cable connection: 2.2 mm
- Fiber arrangement: Singlefiber
- Core structure: 2 x Ø 1.0 mm
- Sheath material: Polyethylene (PE)
- Fibers material: Polymethylmethacrylate (PMMA)
- Ambient operating temperature: -40 °C to +70 °C
- Dimensions (H x L x W): 20mm x 2000mm x 6mm
- Weight: 0.1 kg
Key Features
- Fiber-optic cable device type with proximity system functional principle
- Threaded sleeve, long end sleeve, 90° deflection fiber-optic head design
- Maximum sensing range of 970 mm with WLL80 at 8 ms
- Minimal object diameter detection of 0.025 mm
- Angle of dispersion 60°
- Radial light emission from stainless steel optical fiber head
- Optical fiber cable length 2000 mm with 2.2 mm outside diameter
- Optical fiber cable can be shortened without adapter end sleeves
- Operating temperature range from -40 °C to +70 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems to ensure proper setup and safety.
Applications
- Standard proximity sensing applications
- Compatible with fiber-optic amplifiers WLL80, WLL180, GLL170(T), WLL24 Ex
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Long operational life reduces waste and replacement frequency
- Energy-efficient sensing technology minimizes power consumption
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK LL3-DV03 Fiber-Optic Cable Proximity Sensor is available for immediate purchase, ideal for industrial and automation sensing applications.
