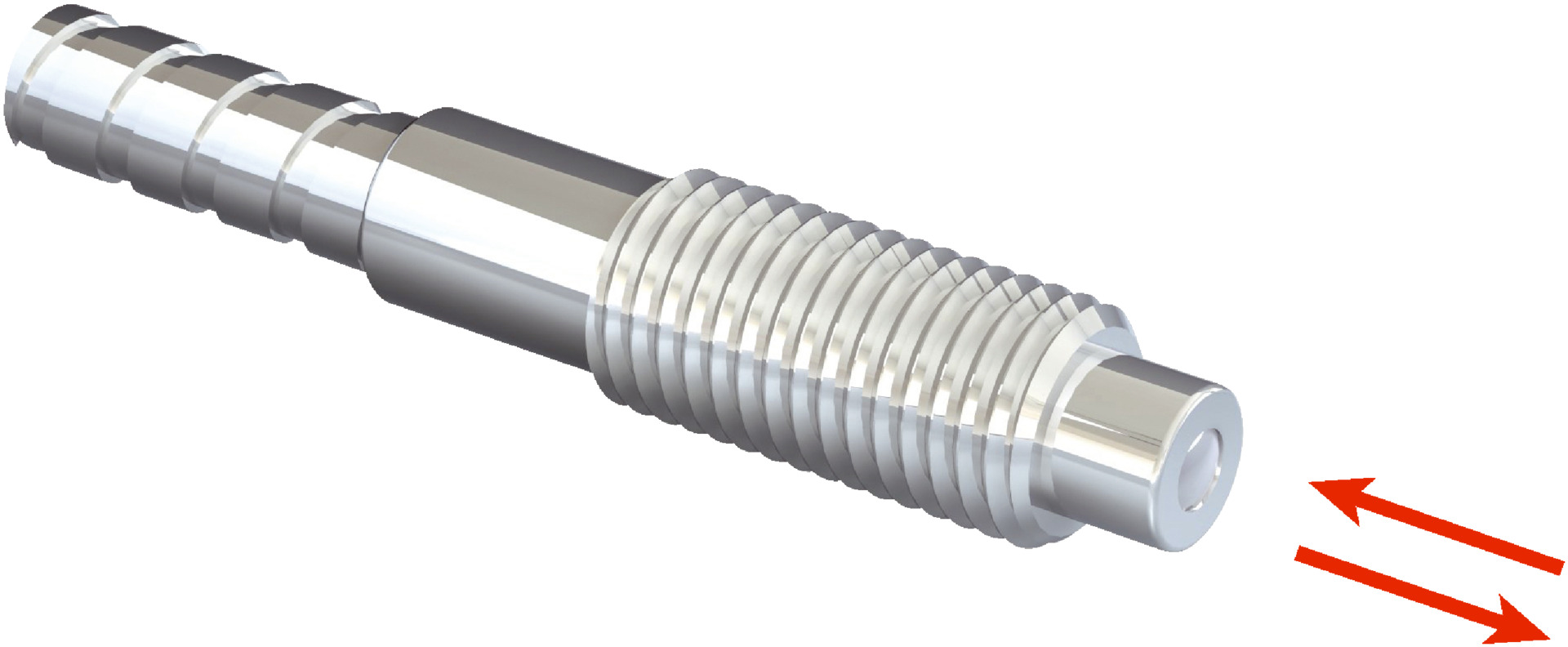

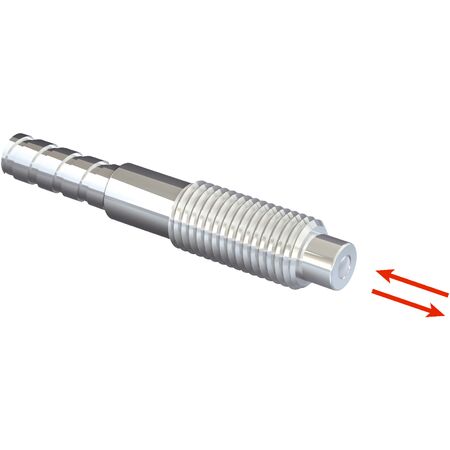

Fiber Optic Proximity Sensor LL3-DW01-5 | Heat Resistant Up to 210°C | Threaded Sleeve Design | Axial Light Emission | by SICK
The Fiber Optic Proximity Sensor LL3-DW01-5 is engineered for industrial automation, featuring a heat-resistant design that withstands temperatures up to 210°C. With a threaded sleeve design and axial light emission at a 60° angle of dispersion, this sensor is perfect for high-temperature environments and compatible with various fiber-optic amplifiers. Built with durable stainless steel, it ensures longevity and reliability in demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Proximity system
- Fiber-optic head design: Threaded sleeve
- Application: Heat-resistant (≥100°C)
- Compatible fiber-optic amplifiers: WLL80, WLL180, GLL170(T)
- Sensing range max.: Depending on the fiber optic amplifier used
- Minimal object diameter: 0.02 mm
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: No
- Compatibility with infrared light: Yes
- Adapter end sleeves required: No
- Included with delivery: Mounting, 2 x M6 hexagon nut, 1 x washer
- Optical fiber head material: Stainless steel
- Light emission: Axial
- Thread diameter (housing): M6
- Optical fiber taper diameter: ≥ 4 mm
- Optical fiber taper length after 2 mm: ≥ 3 mm
- Fiber length: 5,000 mm
- Bending radius: 25 mm
- Dynamic flexibility (robotics): No
- Outside diameter, optical fiber cable connection: 2.2 mm
- Sheath material: Stainless steel
- Fibers material: Glass
- Weight: 24 g
- Ambient operating temperature: –40 °C to +210 °C
- Sensing ranges with WLL180T operating modes: 16 µs - 20 mm, 70 µs - 50 mm, 250 µs - 95 mm, 2 ms - 150 mm, 8 ms - 400 mm
- Sensing ranges with GLL170 operating mode 250 µs: 113 mm
- Sensing ranges with GLL170T operating modes: 50 µs - 171 mm, 250 µs - 277 mm
- Dimensions (H x L x W): 6mm x 5000mm x 6mm
- Weight: 0.1 kg
Key Features
- Fiber-optic cable with threaded sleeve design
- Heat-resistant up to 210°C
- Axial light emission with 60° angle of dispersion
- Compatible with infrared light
- Includes mounting hardware: 2 x M6 hexagon nuts and 1 washer
- Stainless steel optical fiber head and sheath
- Glass fibers with 5,000 mm fiber length
- Bending radius of 25 mm
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems and electrical safety standards.
Applications
- Industrial automation for proximity sensing
- Heat-resistant environments up to 210°C
- Use with compatible fiber-optic amplifiers WLL80, WLL180, GLL170(T)
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel construction extends product life reducing waste
- Heat resistance reduces need for frequent replacements in high-temperature environments
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK LL3-DW01-5 fiber-optic cable sensor is available for immediate purchase, ideal for industrial automation and high-temperature sensing applications.
