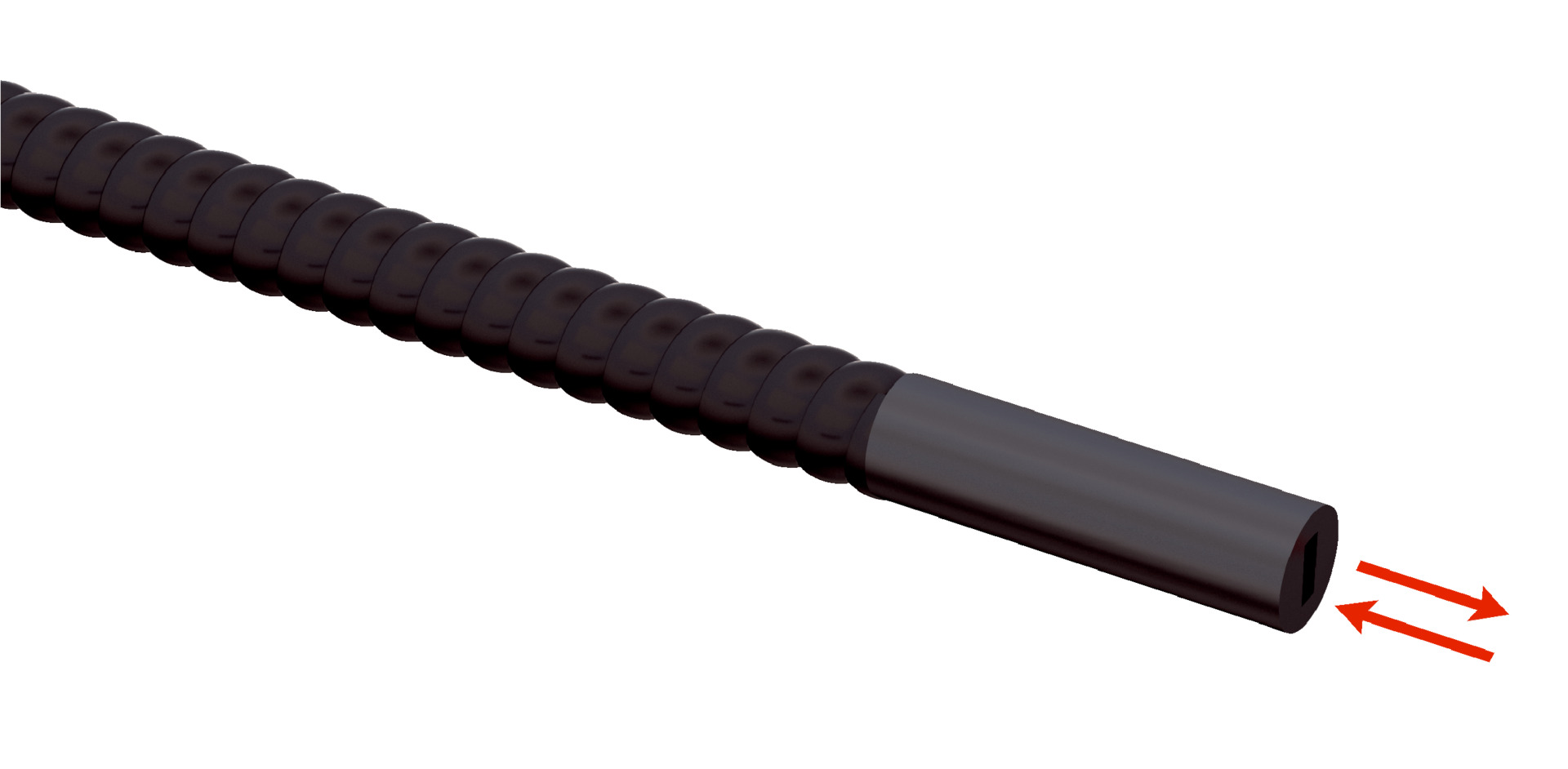

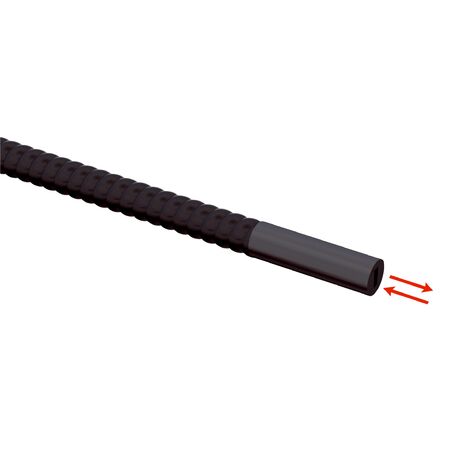

Fiber Optic Proximity Sensor LL3-LM35750 | Smooth Sleeve Design | 0.5mm Minimal Object Diameter | 60° Dispersion Angle | by SICK
The Fiber Optic Proximity Sensor LL3-LM35750 features a smooth sleeve design and operates on a proximity system, making it ideal for standard sensing applications. With a minimal object diameter detection of just 0.5mm and a 60° angle of dispersion, this sensor is compatible with various fiber-optic amplifiers, ensuring reliable performance in industrial settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Proximity system
- Fiber-optic head design: Smooth sleeve
- Compatible fiber-optic amplifiers: WLL80, WLL180, GLL170(T)
- Sensing range max.: Depending on fiber optic amplifier used
- Minimal object diameter: 0.5 mm
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: No
- Compatibility with infrared light: Yes
- Adapter end sleeves required: No
- Light emission: Axial
- Smooth sleeve diameter: 5.8 mm
- Optical fiber head material: Chrome-plated metal coil
- Fiber length: 750 mm
- Bending radius: 20 mm
- Dynamic flexibility (robotics): No
- Outside diameter, optical fiber cable connection: 2.2 mm
- Fiber arrangement: Multi-fiber
- Core structure: Multi-fiber
- Sheath material: Polyvinylchlorid (PVC)
- Fibers material: Glass
- Ambient operating temperature: –10 °C to +60 °C
- Dimensions (H x L x W): 6mm x 750mm x 6mm
- Weight: 0.1 kg
Key Features
- Fiber-optic cable device type with smooth sleeve fiber-optic head design
- Proximity system functional principle
- Sensing range depends on fiber optic amplifier used
- Minimal object diameter detection of 0.5 mm
- Angle of dispersion 60°
- No integrated lens and no compatibility with tip adapters
- Compatibility with infrared light
- Axial light emission
- Chrome-plated metal coil optical fiber head
- Multi-fiber core structure and fiber arrangement
- Polyvinylchlorid (PVC) sheath with glass fibers
- Fiber length 750 mm with 20 mm bending radius
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems to ensure proper setup and safety.
Applications
- Standard proximity sensing applications
- Compatible with fiber-optic amplifiers WLL80, WLL180, GLL170(T)
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Non-contact sensing reduces wear and tear, extending device life
- Energy-efficient operation with minimal power consumption
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK LL3-LM35750 fiber-optic cable sensor is available for immediate purchase, ideal for industrial proximity sensing applications.
