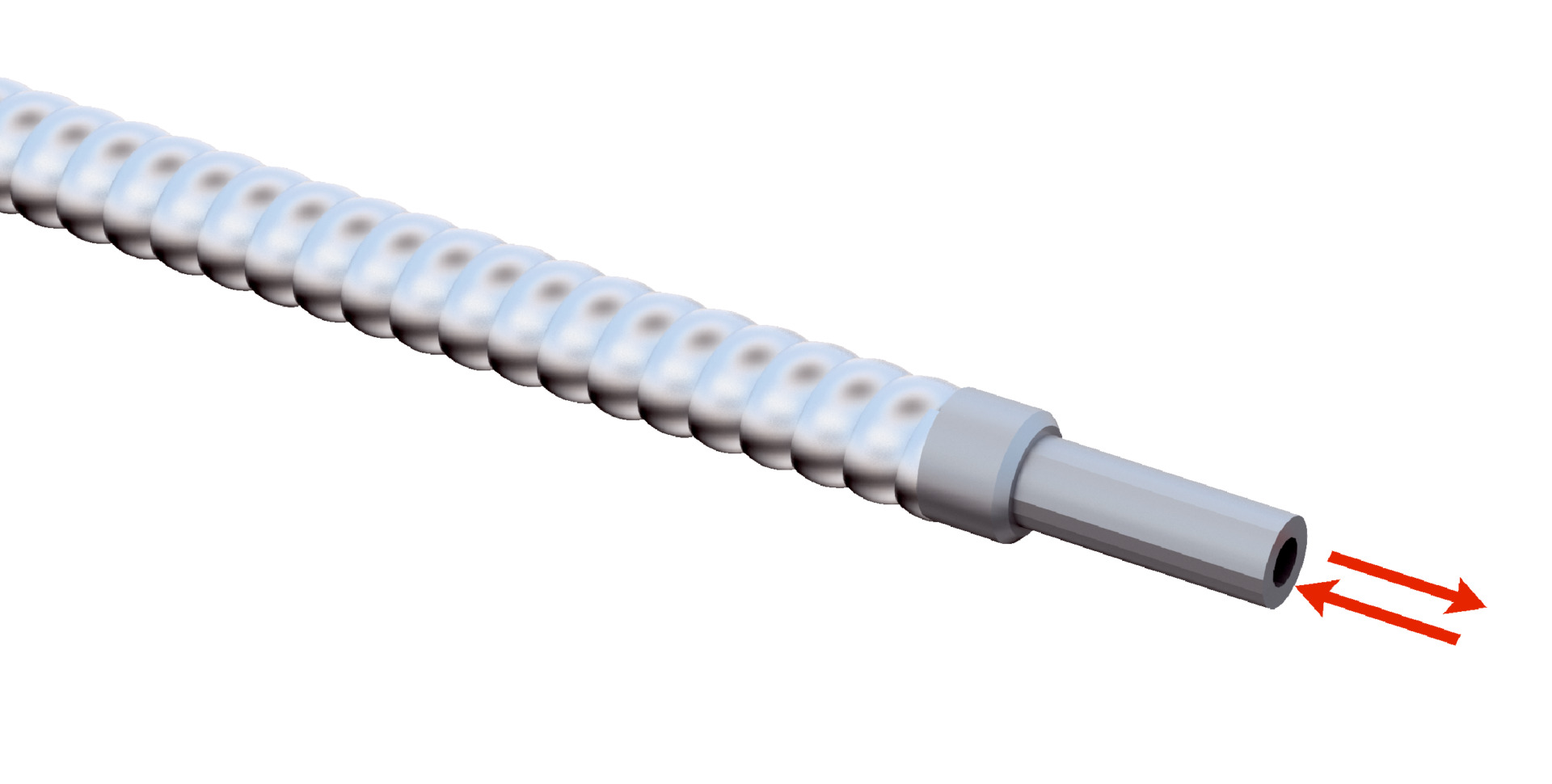

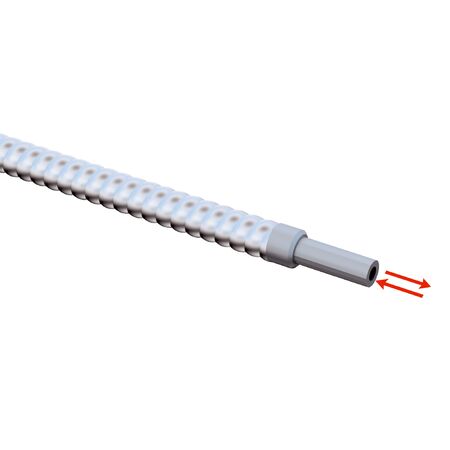

Fiber Optic Proximity Sensor LL3-LT31450S01 | Smooth Sleeve Design | Metal Connection Sleeves | 60° Dispersion Angle | by SICK
The Fiber Optic Proximity Sensor LL3-LT31450S01 is designed for standard proximity sensing applications, utilizing a smooth sleeve and long end sleeve for optimal performance. With metal connection sleeves for durability and an axial light emission at a 60° angle of dispersion, this sensor is perfect for industrial automation and compatible with various fiber-optic amplifiers, ensuring reliable operation in diverse environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Proximity system
- Fiber-optic head design: Smooth sleeve, Long end sleeve
- Special features: Fibre-optic connection sleeves made of metal
- Compatible fiber-optic amplifiers: WLL80, WLL180, GLL170(T)
- Sensing range max.: Depending on the fiber optic amplifier used
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: No
- Compatibility with infrared light: Yes
- Adapter end sleeves required: No
- Optical fiber head material: Stainless steel
- Light emission: Axial
- Smooth sleeve diameter: 5.8 mm
- Optical fiber taper diameter: ≥ 4 mm
- Optical fiber taper length after 2 mm: ≥ 11.4 mm
- Fiber length: 450 mm
- Bending radius: 20 mm
- Dynamic flexibility (robotics): No
- Outside diameter, optical fiber cable connection: 2.2 mm
- Fiber arrangement: Multi-fiber
- Core structure: Multi-fiber
- Sheath: Chrome-plated helical metal spring
- Fibers: Glass
- Weight: 33 g
- Ambient operating temperature: –10 °C to +60 °C
- Sensing ranges with WLL180T operating modes: 16 µs - 50 mm, 70 µs - 140 mm, 250 µs - 240 mm, 2 ms - 300 mm, 8 ms - 310 mm
- Sensing ranges with GLL170 operating mode 250 µs: 93 mm
- Sensing ranges with GLL170T operating modes: 50 µs - 130 mm, 250 µs - 242 mm
- Dimensions (H x L x W): 6mm x 450mm x 6mm
- Weight: 0.1 kg
Key Features
- Fiber-optic cable device type with proximity system functional principle
- Fiber-optic head with smooth sleeve and long end sleeve design
- Metal fiber-optic connection sleeves for durability
- Axial light emission with 60° angle of dispersion
- Compatibility with infrared light without need for adapter end sleeves
- Multi-fiber core structure with glass fibers
- Chrome-plated helical metal spring sheath for protection
- Operating temperature range from –10 °C to +60 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems and electrical wiring standards to ensure proper operation and safety.
Applications
- Standard proximity sensing applications using fiber-optic technology
- Compatible with fiber-optic amplifiers WLL80, WLL180, GLL170(T)
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Non-contact sensing reduces wear and tear, extending product life and reducing waste
- Energy-efficient operation with fiber-optic technology
Warranty Information
Warranty terms as provided by SICK, typically 1-2 years depending on purchase agreement.
Available Now
The SICK LL3-LT31450S01 Fiber-Optic Cable Proximity Sensor is available for immediate purchase, ideal for industrial automation and sensing applications requiring precise proximity detection.
